How to change the oil cooler on a GTV 3.0l

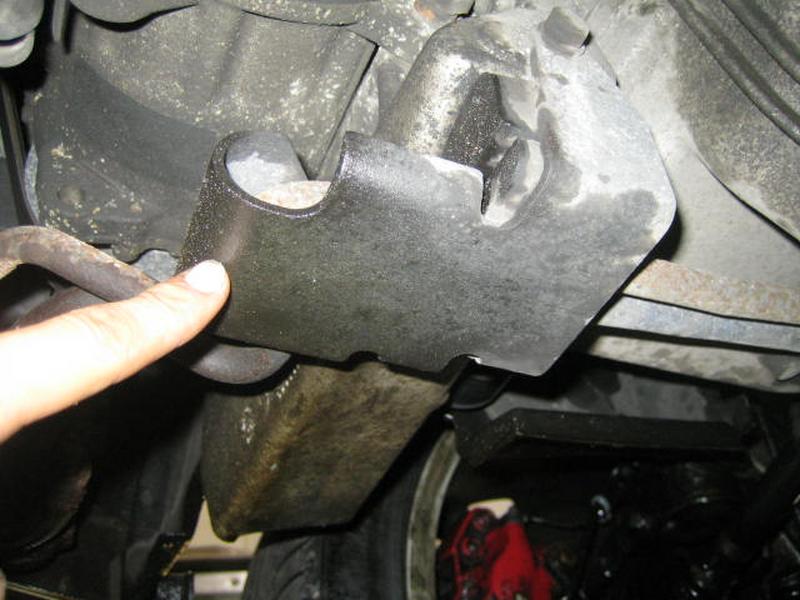

Remove protective bracket for oil cooler pipes

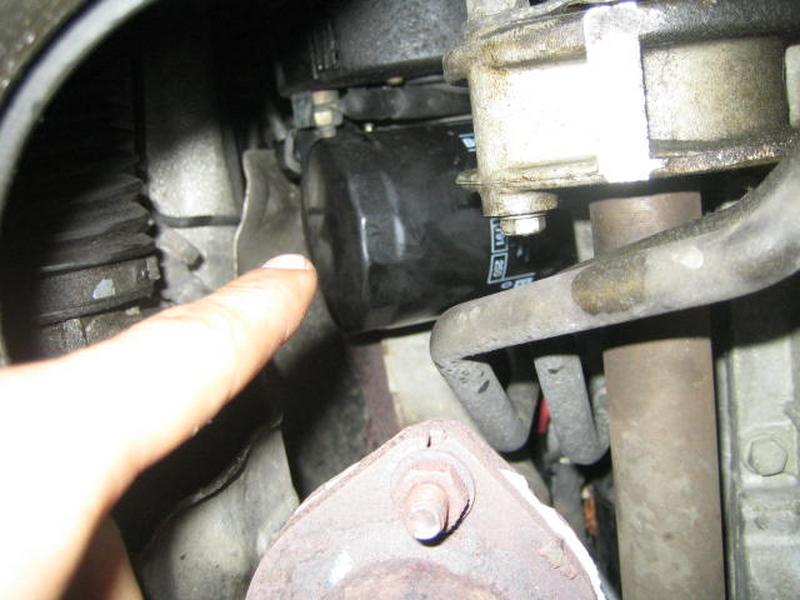

Remove oil filter

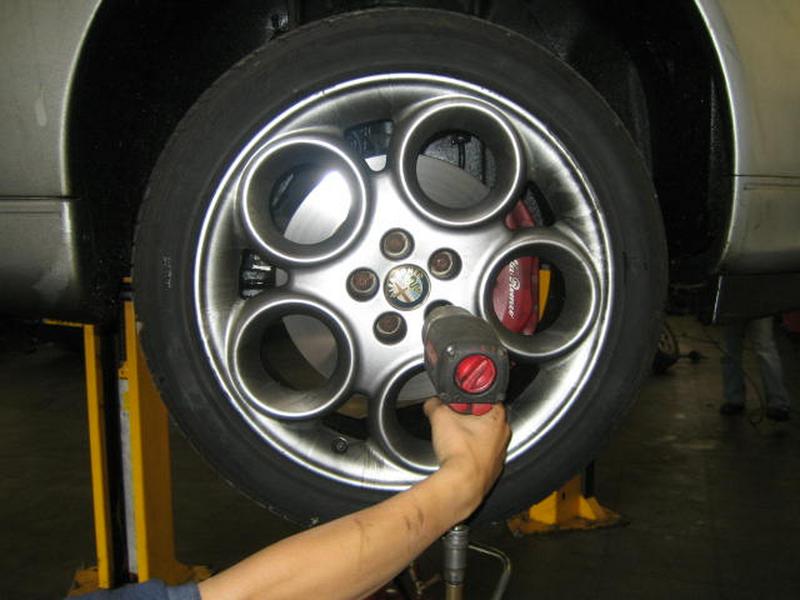

Remove off side road wheel

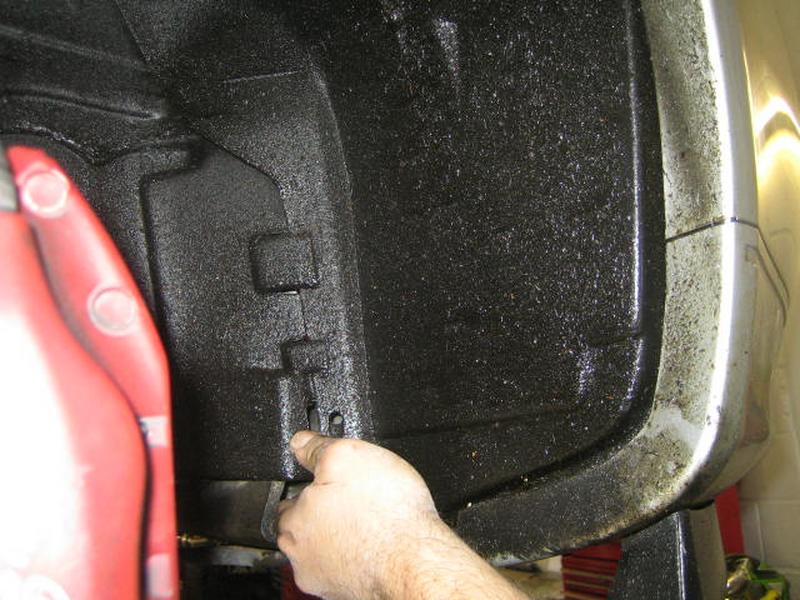

Remove off side wheel arch liner

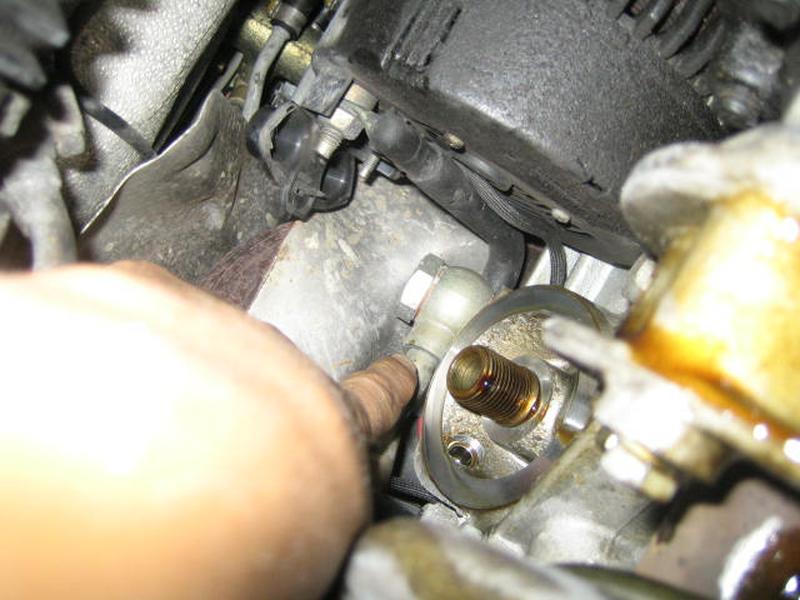

Undo oil feed pipe to oil cooler above oil filter, you need a stumpy 22 mm spanner and it is extremely hard to undo

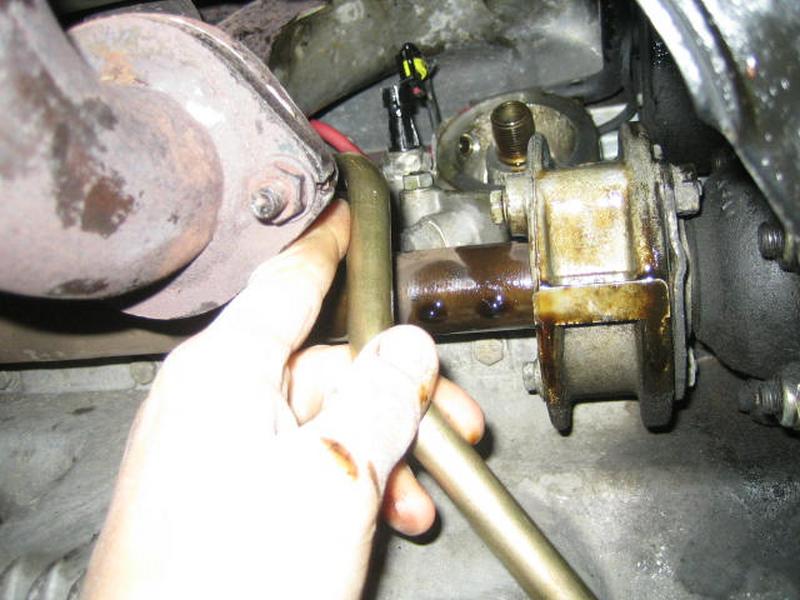

Remove other oil feed pipe to the oil cooler, again you need a stumpy 22mm spanner and it is also very difficult to undo

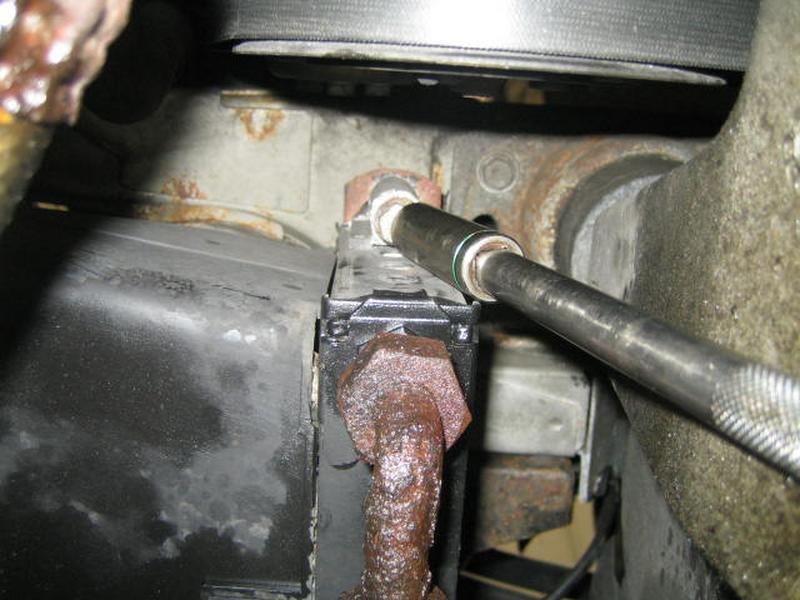

Remove oil cooler and pipes as one unit, it is highly unlikely that you will be able to get these pipes off the oil cooler and so you will need to replace the cooler and both pipes

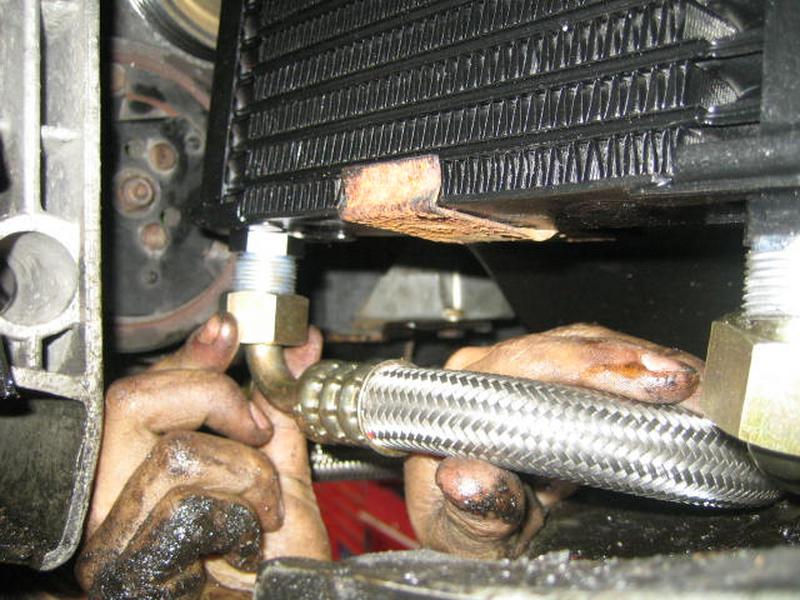

Re fit new oil cooler and lines, top up oil and make sure that the brake is free of oil
