How To... remove and refit brake pads for an Alfa SZ/RZ/75/Alfetta/Alfetta GTV/GTV6

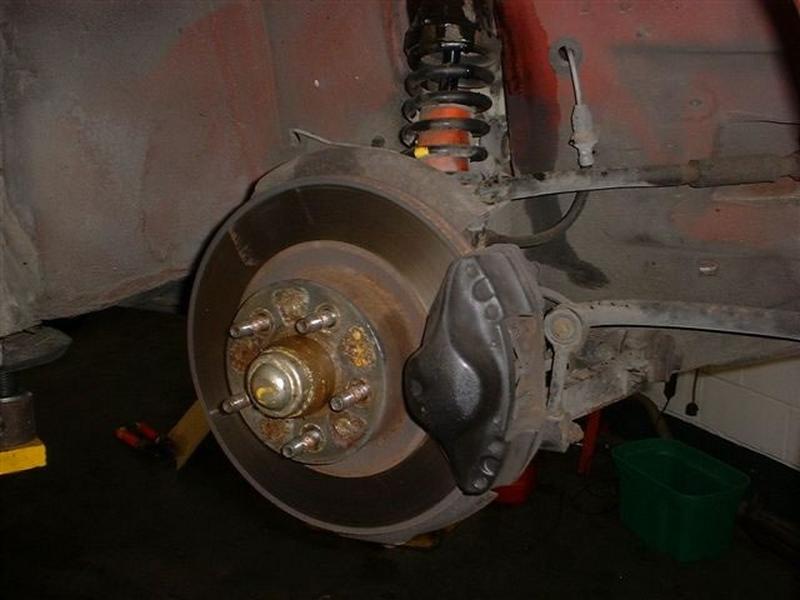

Alfa SZ Brakes

A How To.. remove and refit brake pads for an Alfa SZ/RZ/75/Alfetta/Alfetta GTV/GTV6.

Alfa SZ Brake Sensor

On the 75 / RZ / SZ, disconnect the brake wear warning sensor, before taking out the calliper retaining pins

Alfa SZ Calliper Pins

Using a hammer and pin punch, knock out the lower retaining pin first, then remove the top pin

Alfa RZ Callipers

Prize back the brake pads and remove, then push the pistons back into the calliper (you can do this with the aid off a bar, which shouldn’t require much force).

Alfa SZ Brake Pads

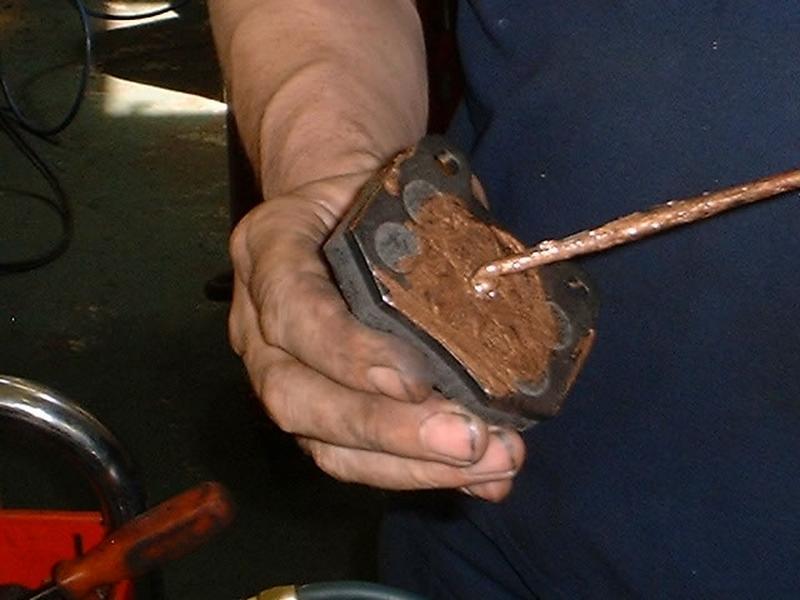

Apply copper slip to top, bottom and back of brake pads, (where it makes contact with the calliper and piston). Take care not put any on the friction surfaces.

Alfa 75 Brake Pads

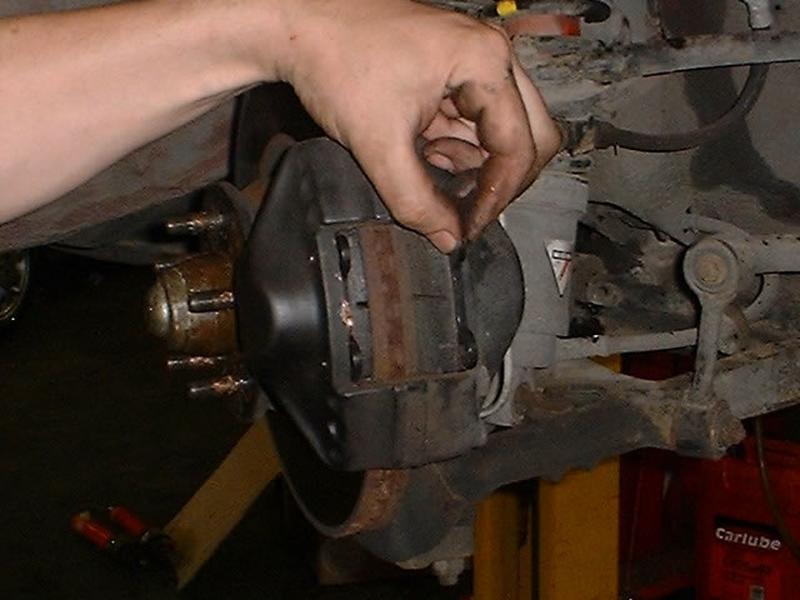

Insert new pads...

Alfa SZ Caliper Pins

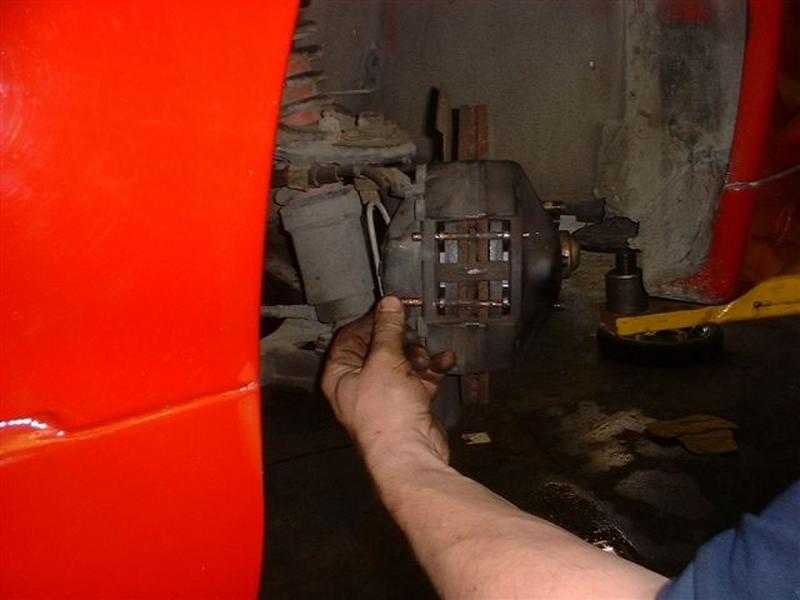

...making sure to copper slip both ends of the retaining pins

Alfa SZ Wheels

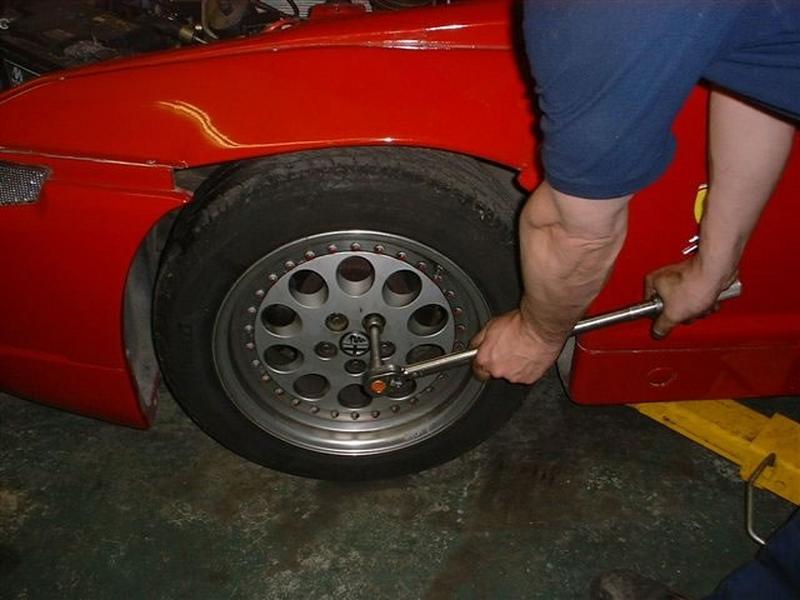

Hand tighten wheel nuts, lower front end onto ground then tighten nuts to the correct torque setting.

Related Links: Alfa Romeo SZ Handbook
