How To... remove the rear shocks on an Alfa SZ/RZ

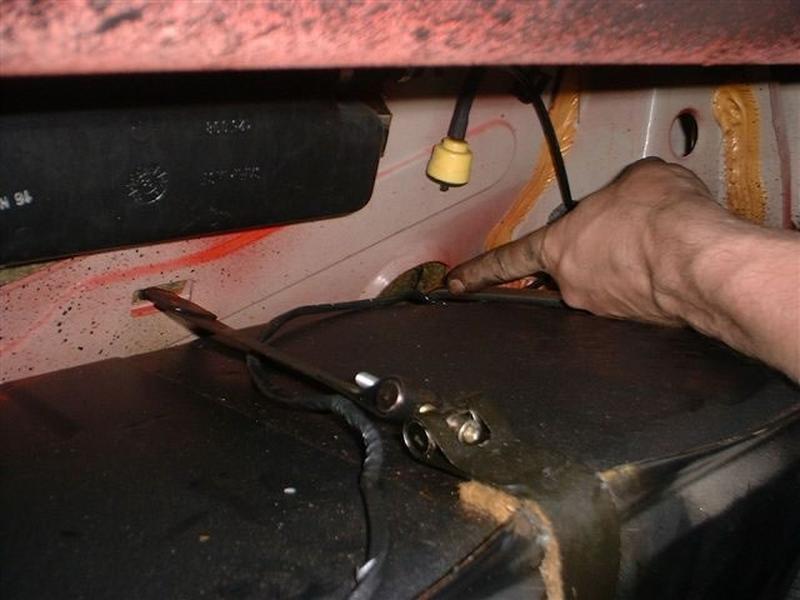

Alfa Romeo SZ Shock Mount

Make sure the hydraulics lift button on the drivers console is in the ‘low’ position, then elevate the car. Open the rear boot, remove the spare wheel (I know it’s obvious but some people…) and undo the shock top mounting bolt.

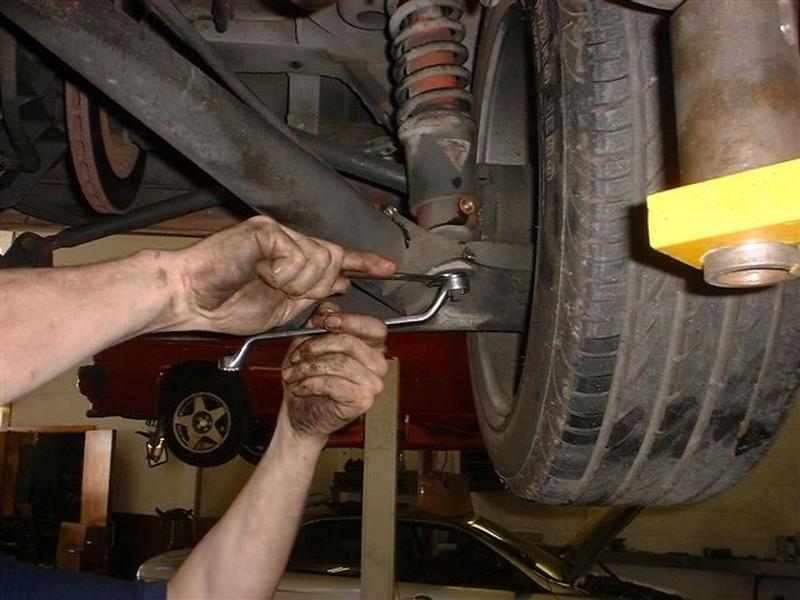

Alfa SZ/RZ rear shock absorber

Undo the hydraulic pipes connected to the shock absorbers and drain off any excess oil. Undo the shocks bottom locknut, then the mounting nut, using two spanners

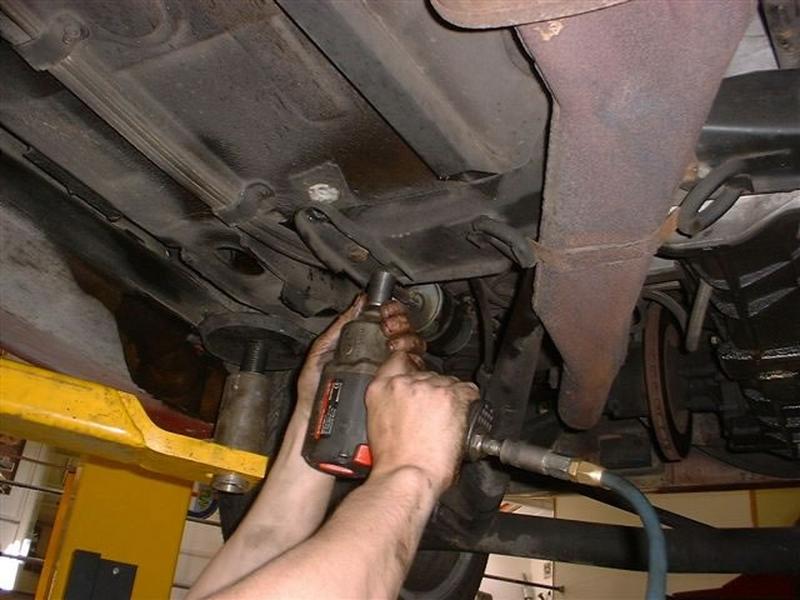

Alfa SZ Sub Frame

Unbolt the ‘De-dion’ sub frame (x6 bolts)...

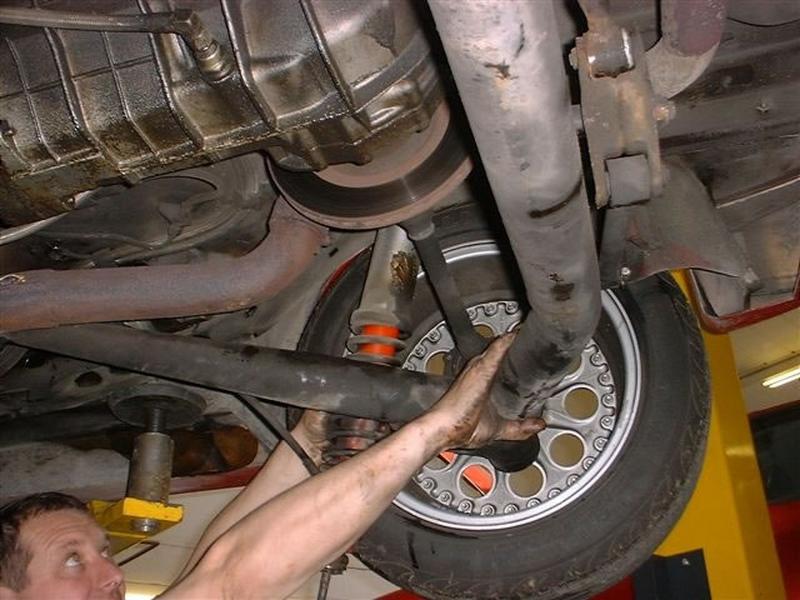

Alfa RZ shock removal

...then slide the rear axle back to gain access to the rear shocks for removal.

Related Links: Alfa SZ/75/Alfetta/GTV6 brake pad removal guide
