A detailed and illustrated guide to changing the cam belt and water pump on a 156, 147 and GT JTDm

This is a guide to replacing a cam belt (or timing belt) and water pump on a 156, 147 and GT, this guide is to be used for the routine replacement of the belt. If your belt has broken please use the appropriate guide for that operation

:alt

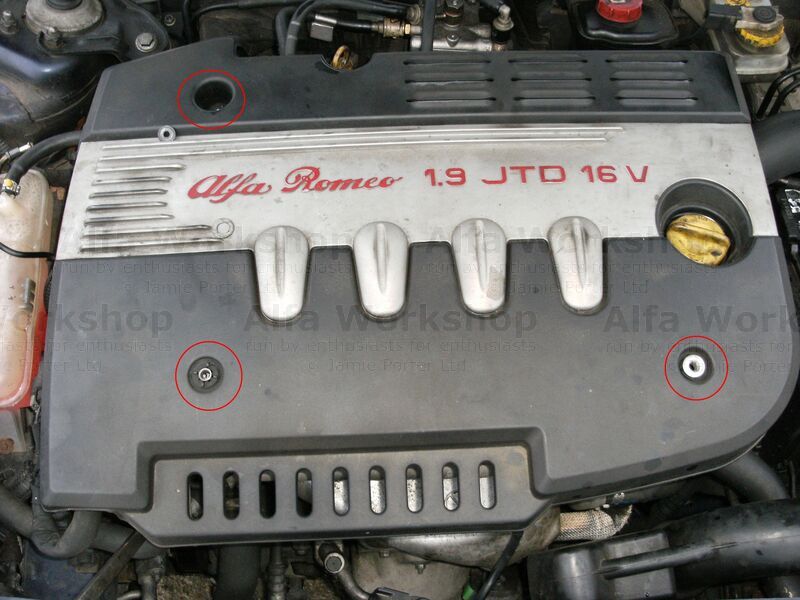

Undo 10mm bolts circled in red and pull off engine cover, it has a puss fitting on the far right hand side.

:alt

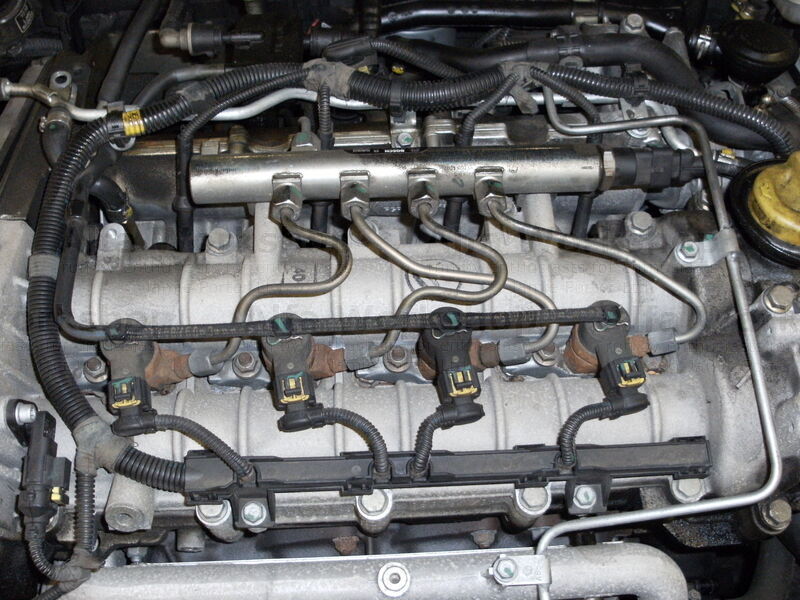

Under the cover yoou fill find quite a complicated engine, dont let this daunt you.

:alt

Remove the engine ECU from the cam belt end of the engine, dont disconect it, and place it on the inner wing.

:alt

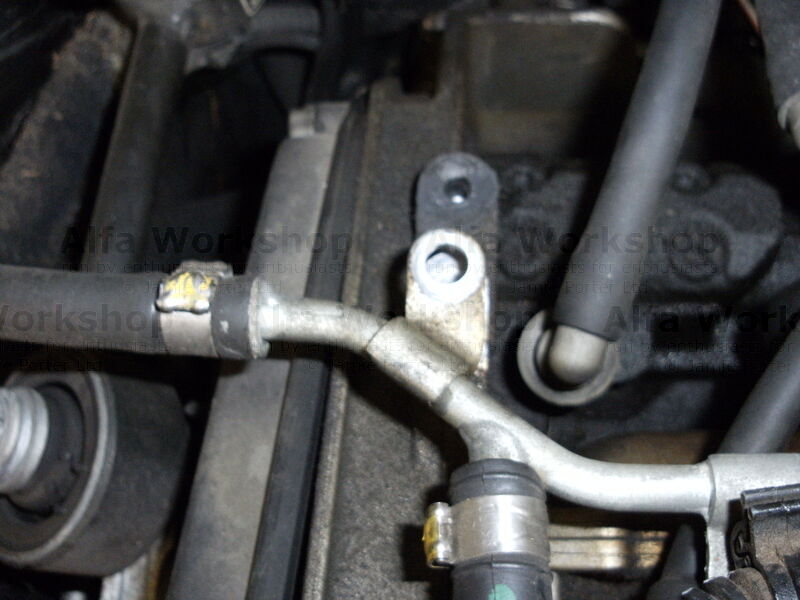

Undo the bolt that secures the coolant bleed pipe.

:alt

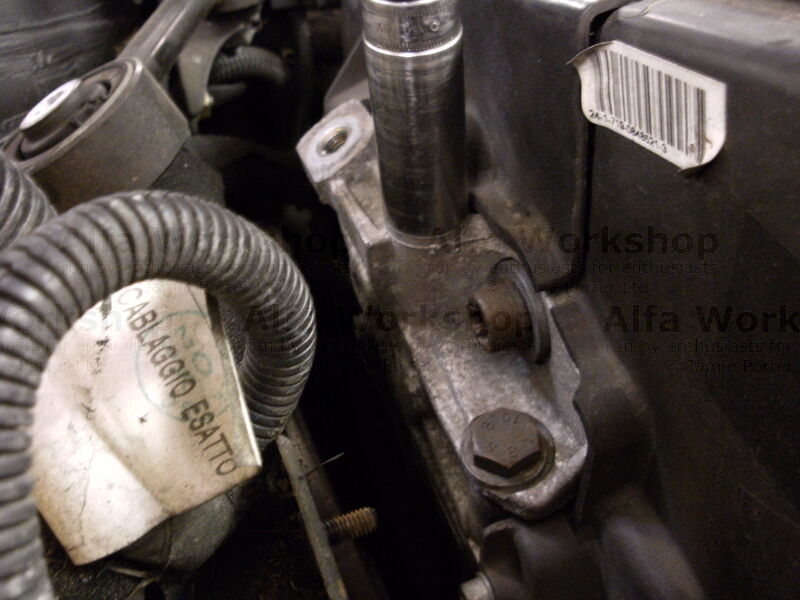

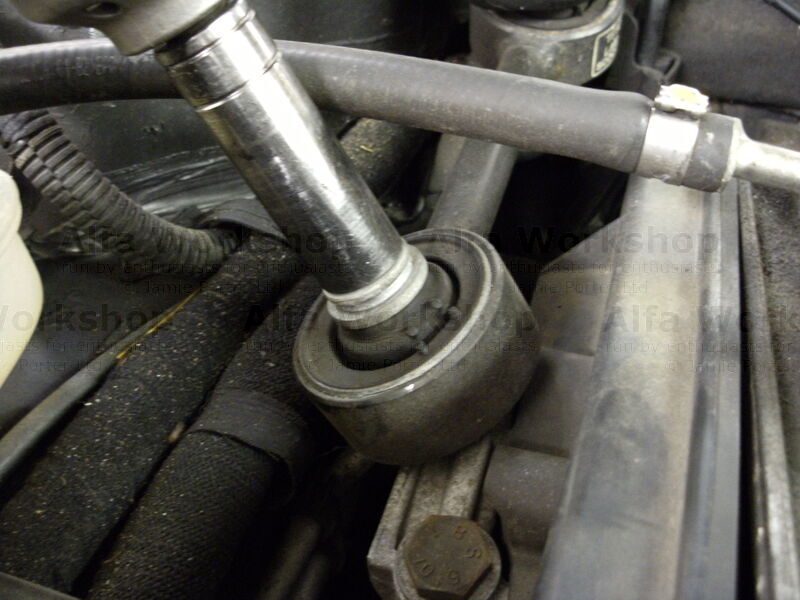

Remove the top engine mounting.

:alt

Remove engine mounting support bracket.

:alt

Remove upper cam belt cover and the lower cam belt cover fastners that you can reach from above.

:alt

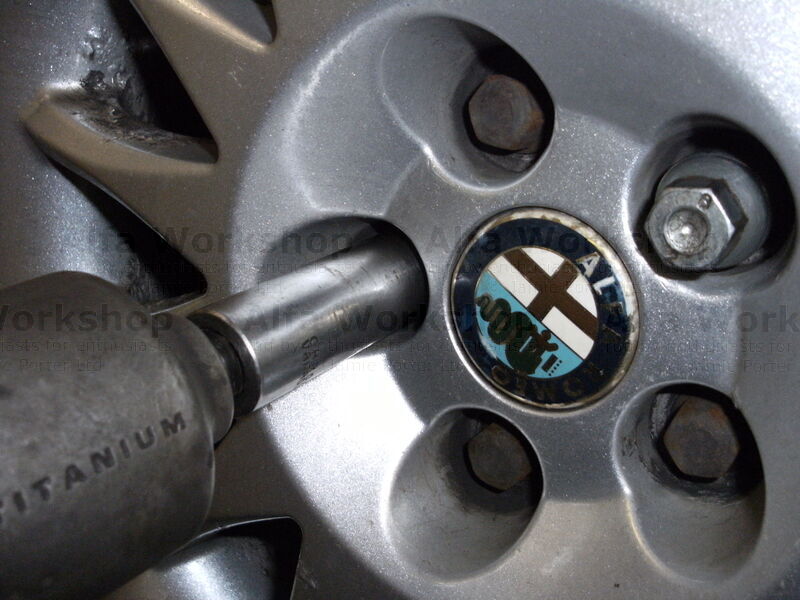

Jack car up and make sure it is safe and secure, then remove road wheel.

:alt

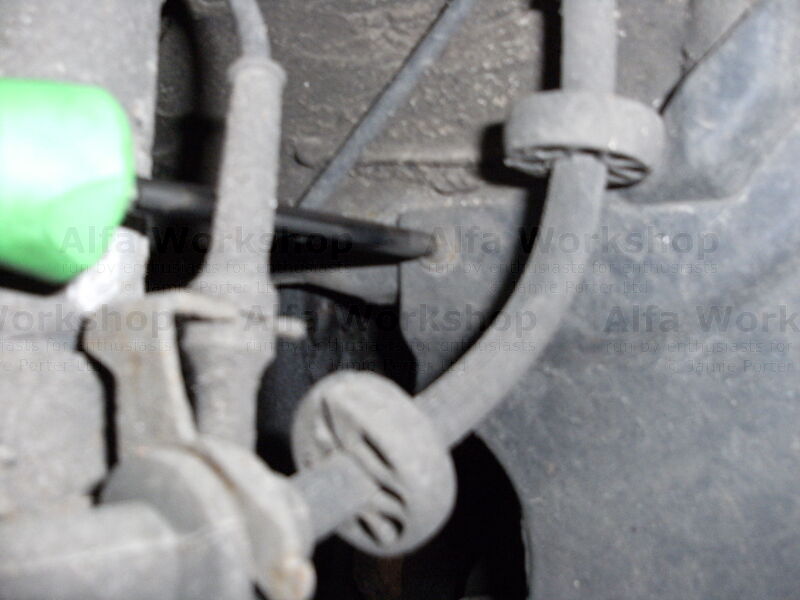

Remove inner wheel arch liner and under tray.

:alt

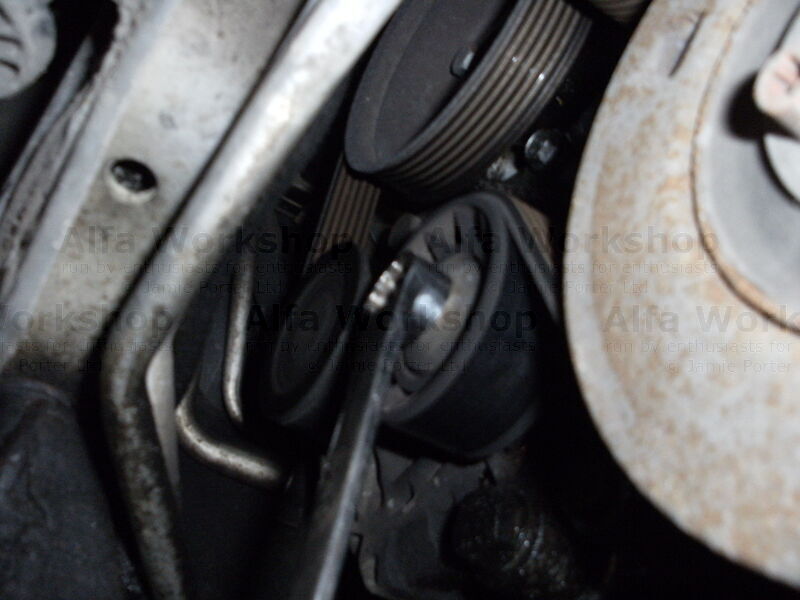

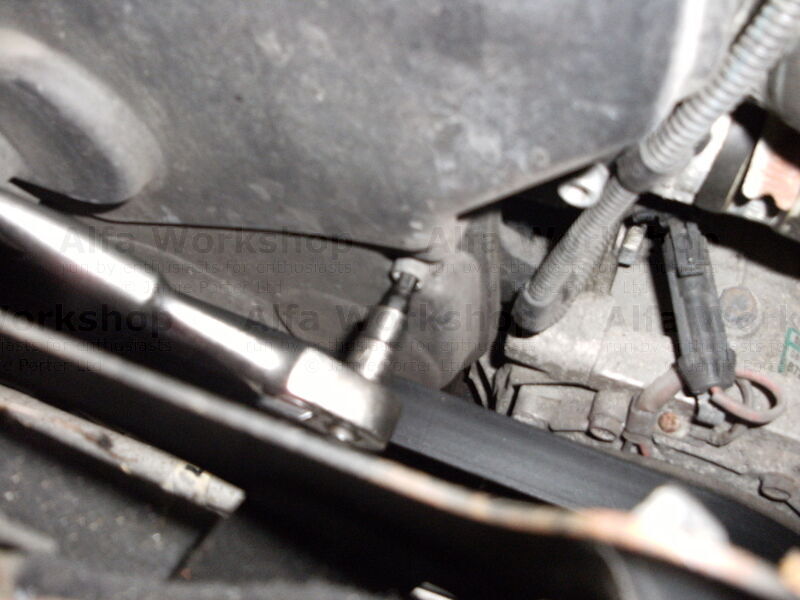

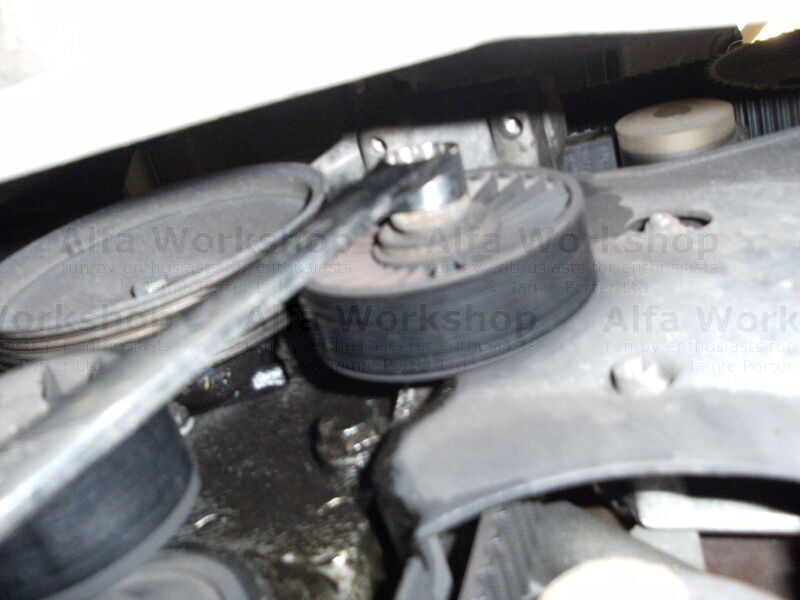

Using a spanner on the bolt in the middle of the auxiliary belt tensioner move the tensioner anti clockwise then slip the belt of the pulley

:alt

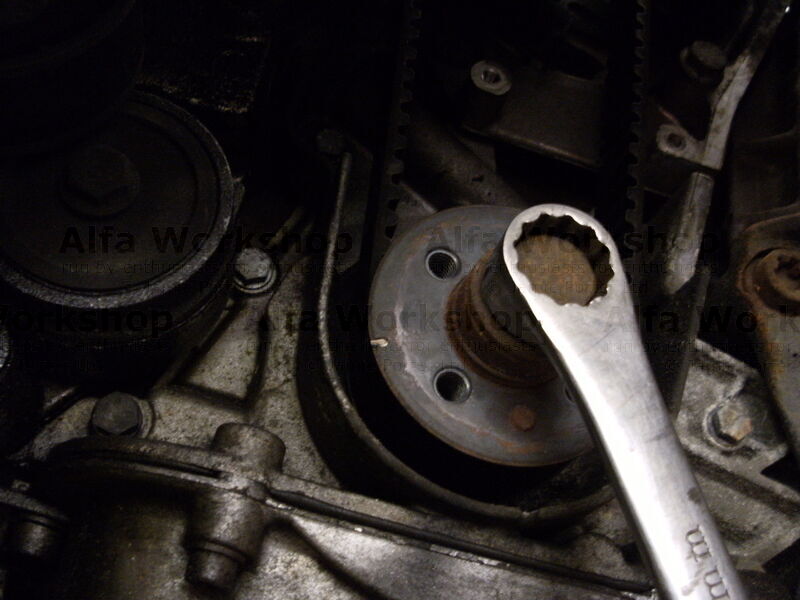

Remove the crank shaft pulley, note that is only goes on in one position.

:alt

Remove the auxiliary belt idler.

:alt

Move the crank shaft round until the cam belt timing marks line up

:alt

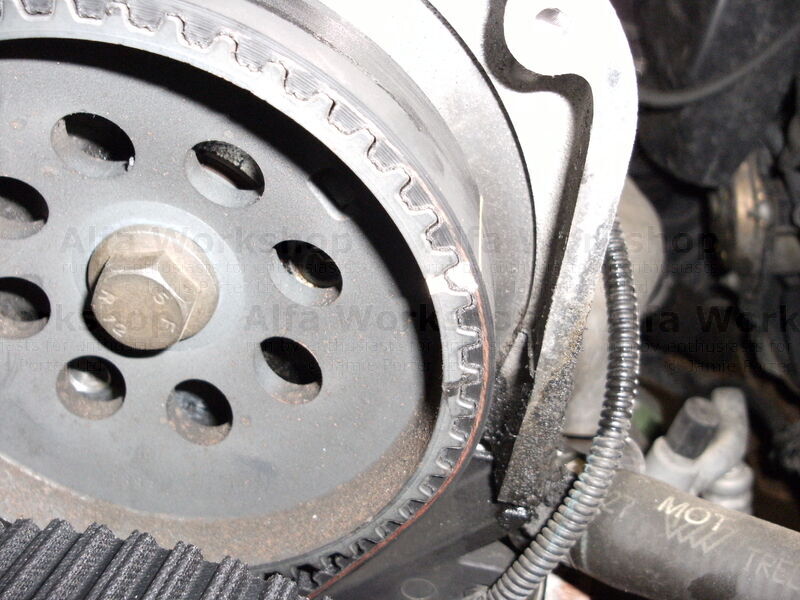

This is the crankshaft timing mark.

:alt

and this is the camshaft timing mark.

:alt

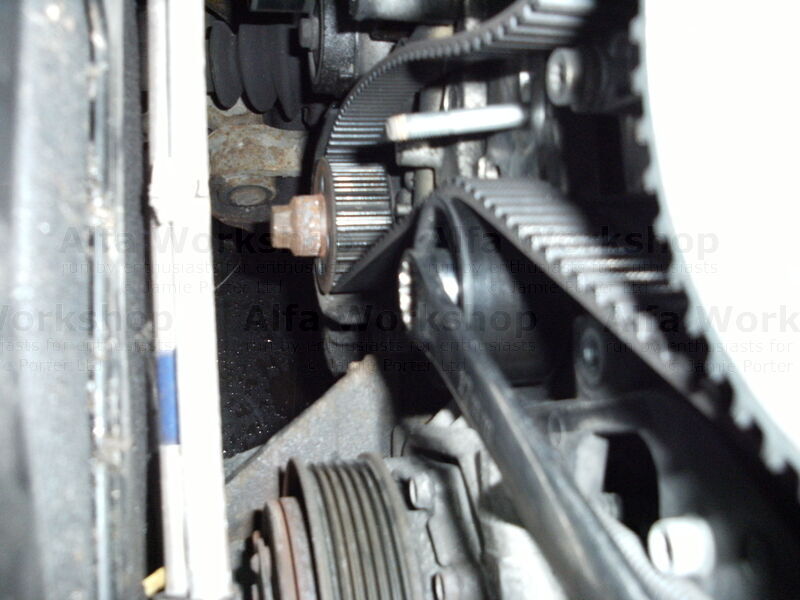

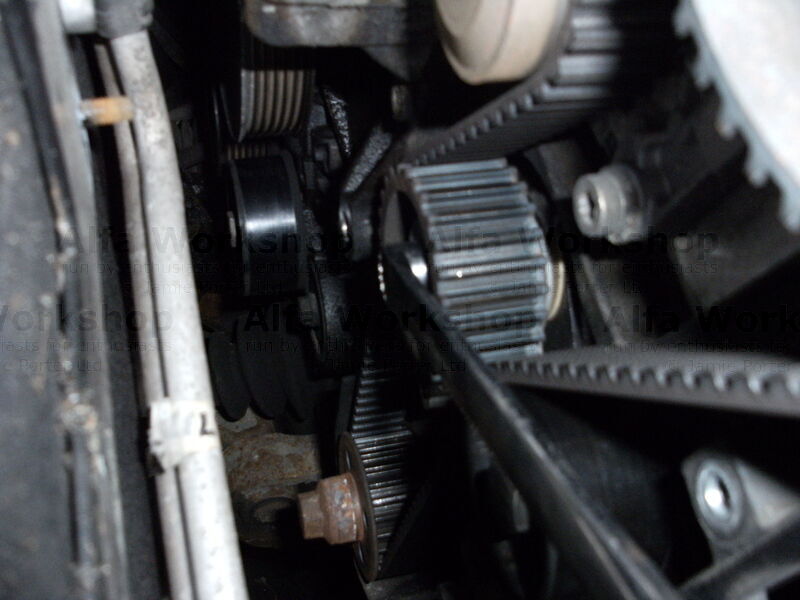

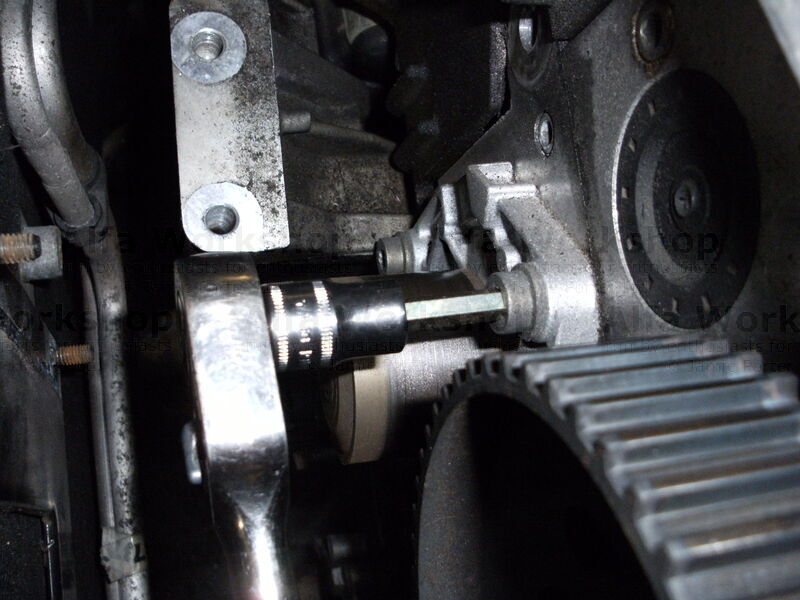

Remove cam belt tensioner.

:alt

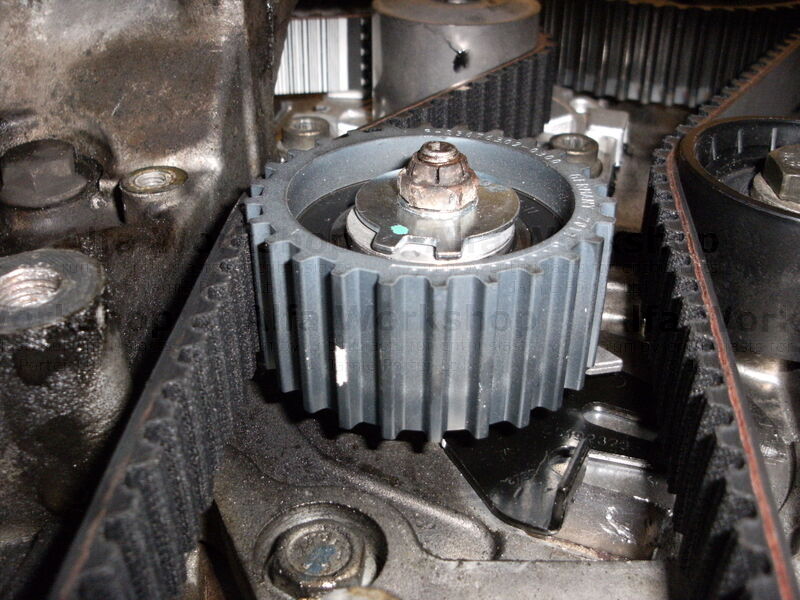

Remove cam belt idler.

:alt

Remove water pump and replace with a new one, the water pump siezing up is the most common cause of cam belt failures.

:alt

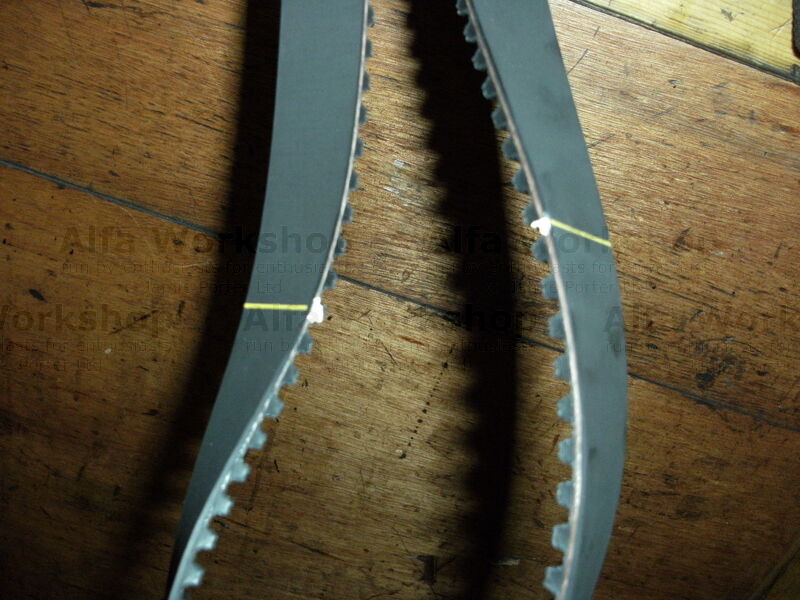

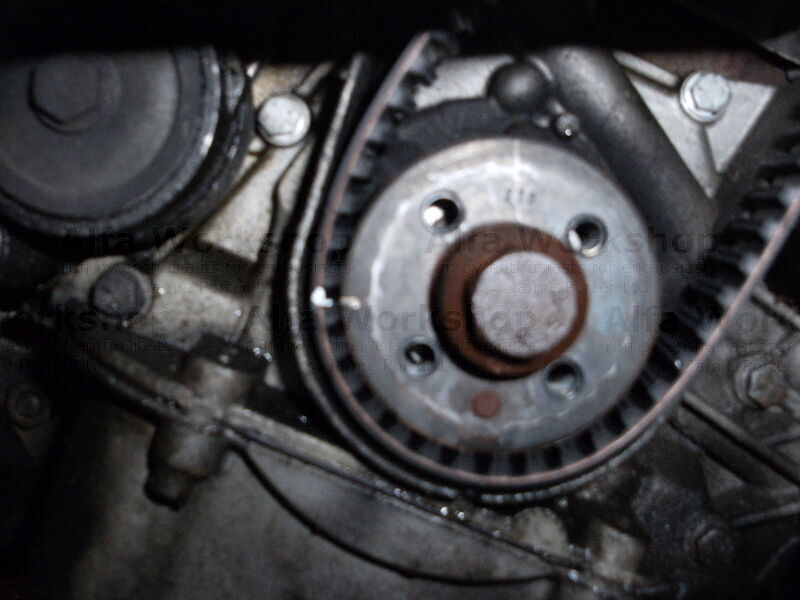

Line the marks on the cam belt (or timing belt)up with the marks on the camshaft and crankshaft pulleys. Please note there are two belts that fit this engine, 198 teeth on early cars and 199 on later vehicles.

:alt

Tension the belt correctly and reassemble using the reverse of the above procedure. When you have finnished reassembly, remember to top up the engine coolant and bleed the radiator using the bleed screw in the top left hand corner.
