Replacing the EGR valve

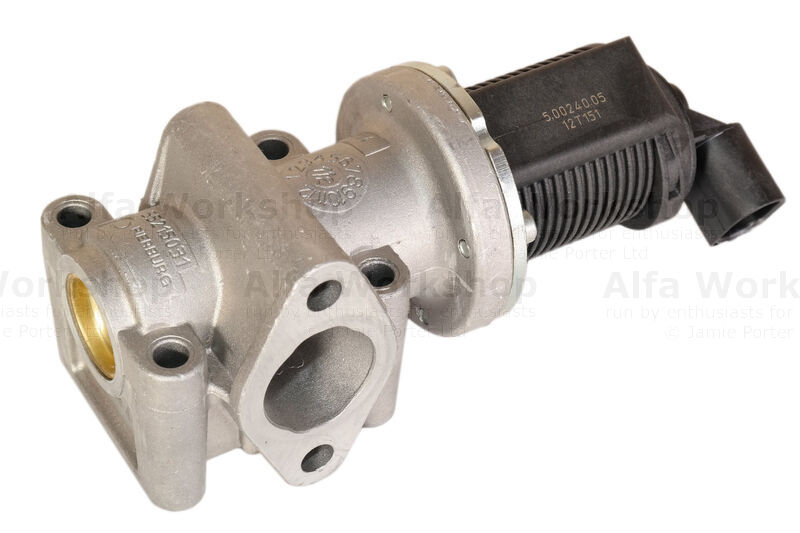

Replacing an EGR valve

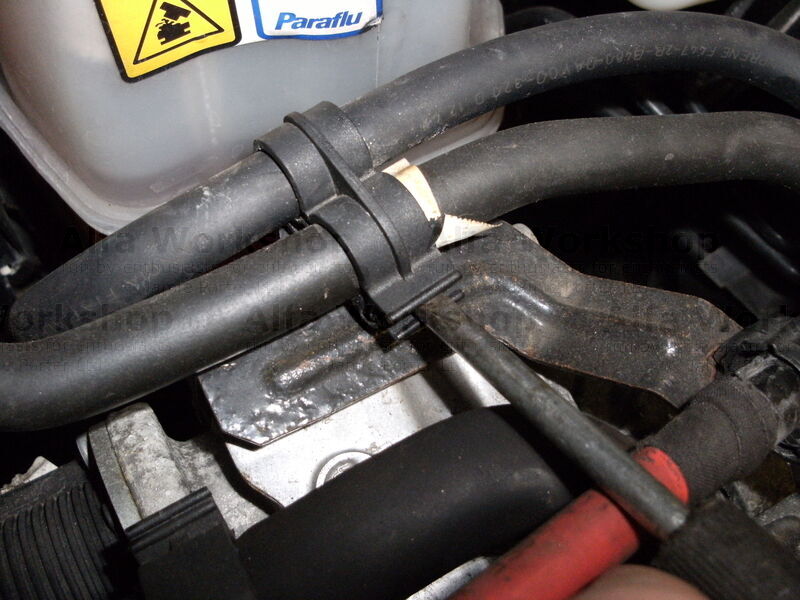

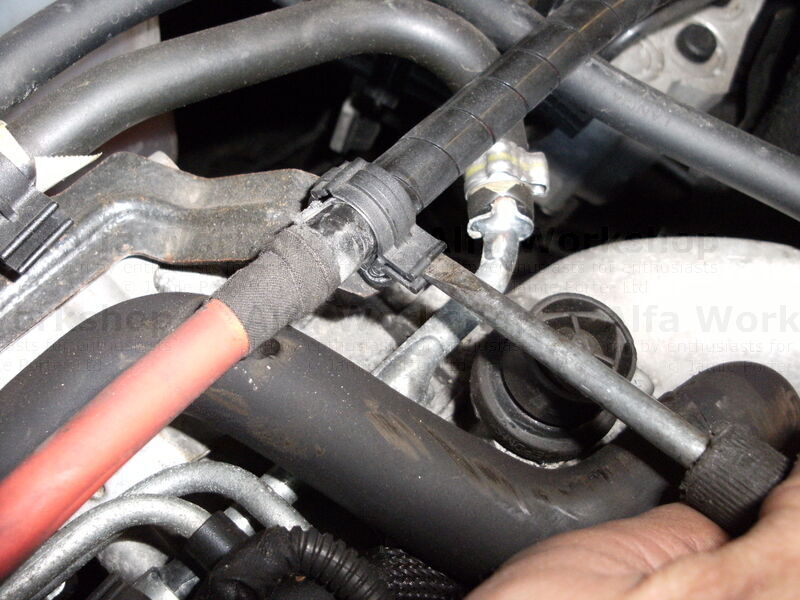

Remove engine top cover and then disconnect this clip if fitted on your model.

Then this one

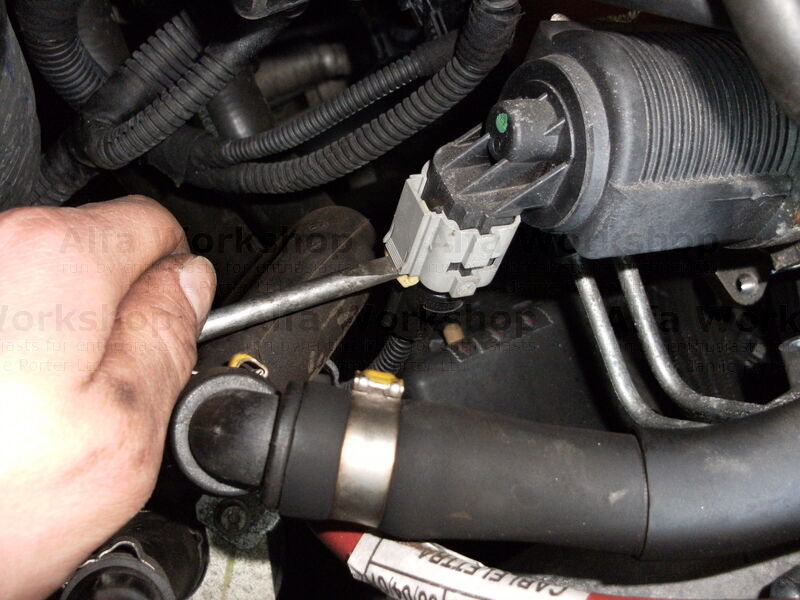

Disconnect the power supply to the EGR valve.

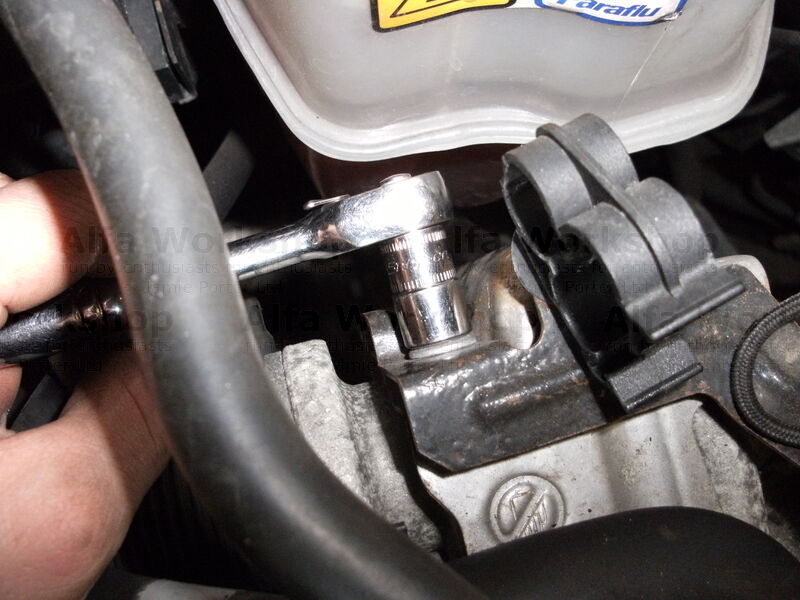

Undo the bracket that retains the pipe.

Remove the heat shield over the valve.

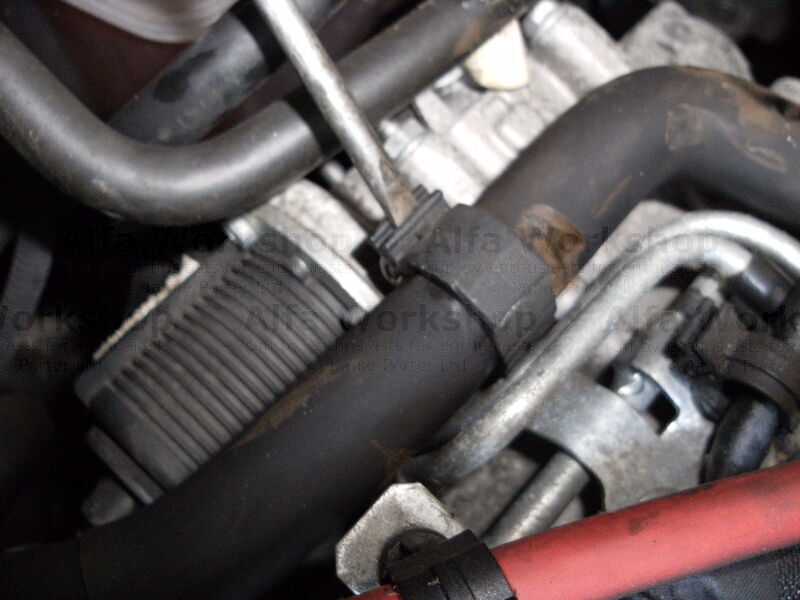

Disconnect this clip

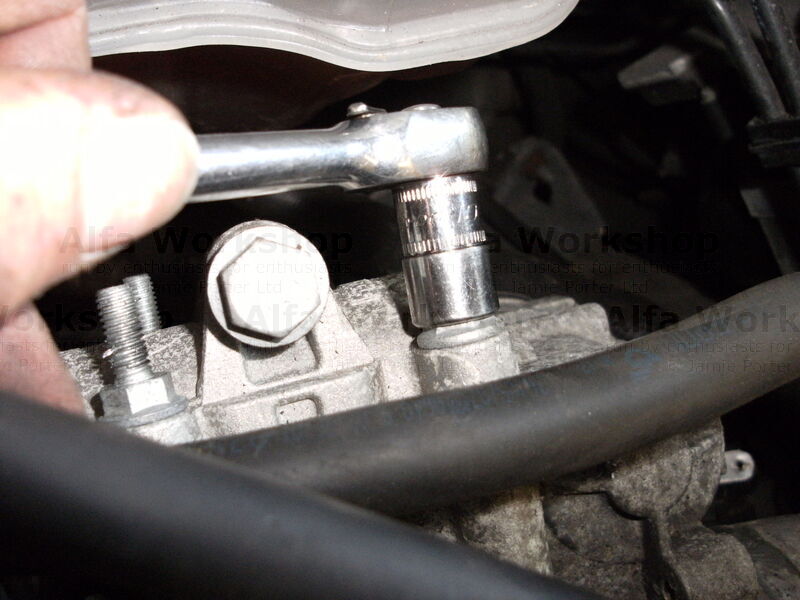

Undo the two bolts on top of the EGR valve

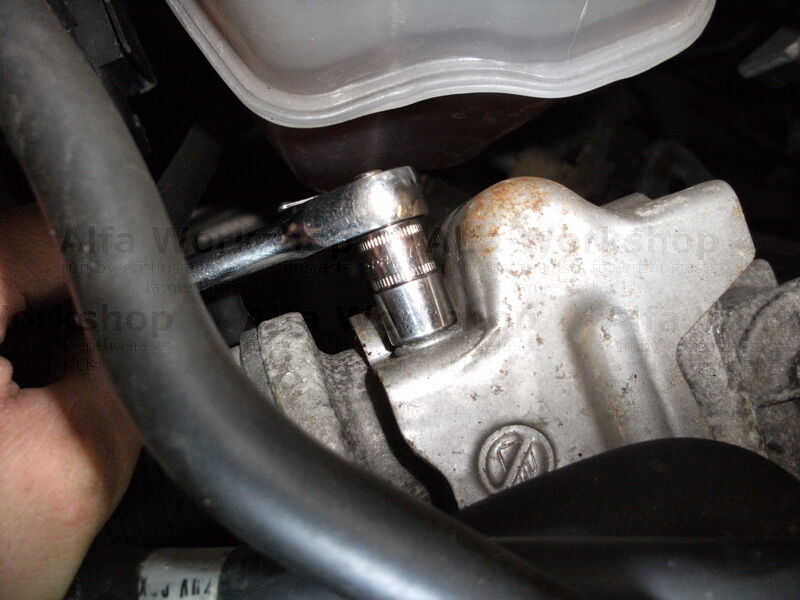

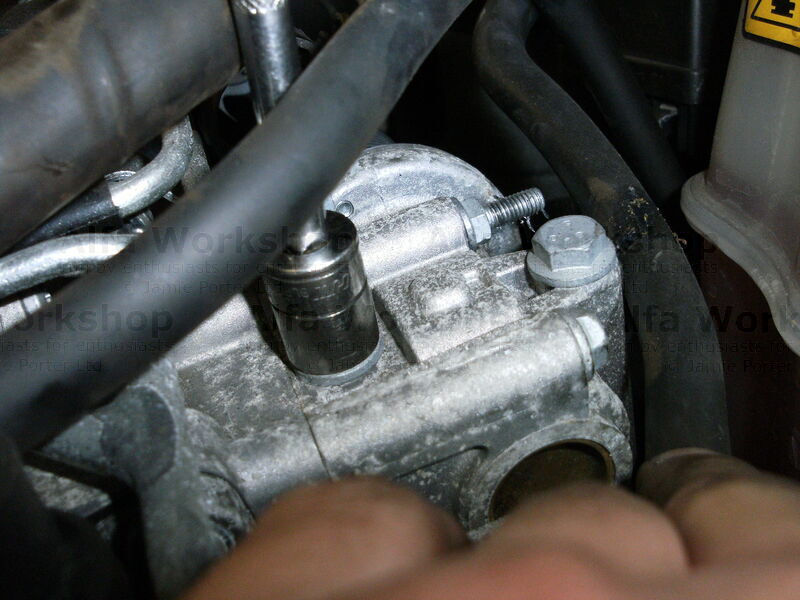

and then the ones on the side of the EGR valve and the valve will come off. When replacing the EGR valve it is best to fit the modified gasket if it hasn't already been fitted.
