Replacing the spring on a front 4C shiny Ohlins shock.

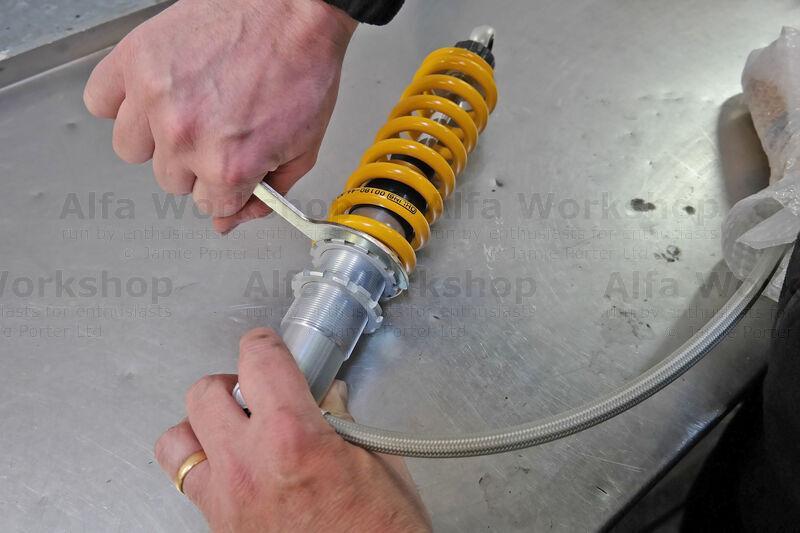

Using two C spanners split the two locking rings.

Now unwind the rings to take the tension out of the spring.....

.....until there's a gap.....

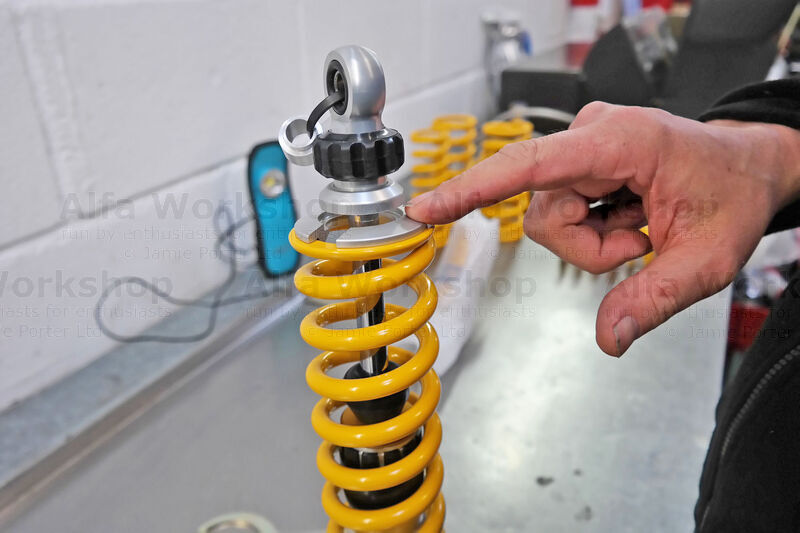

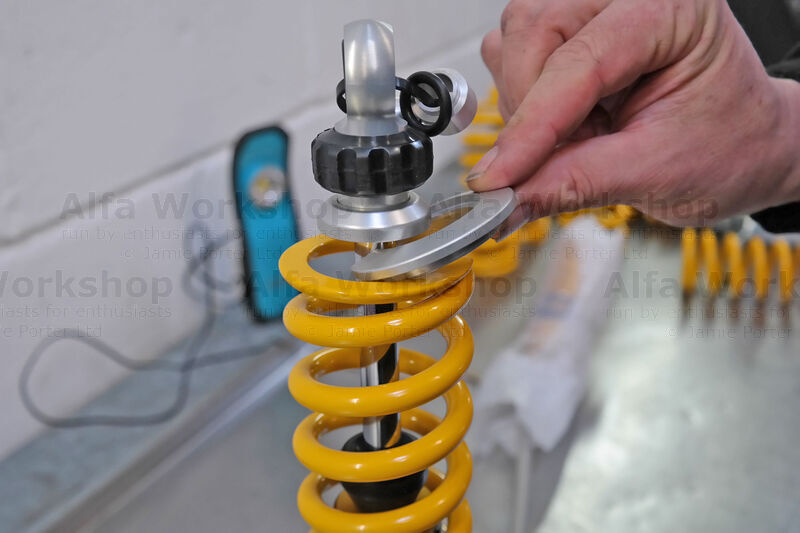

....sufficient enough to slide out the top spacer.

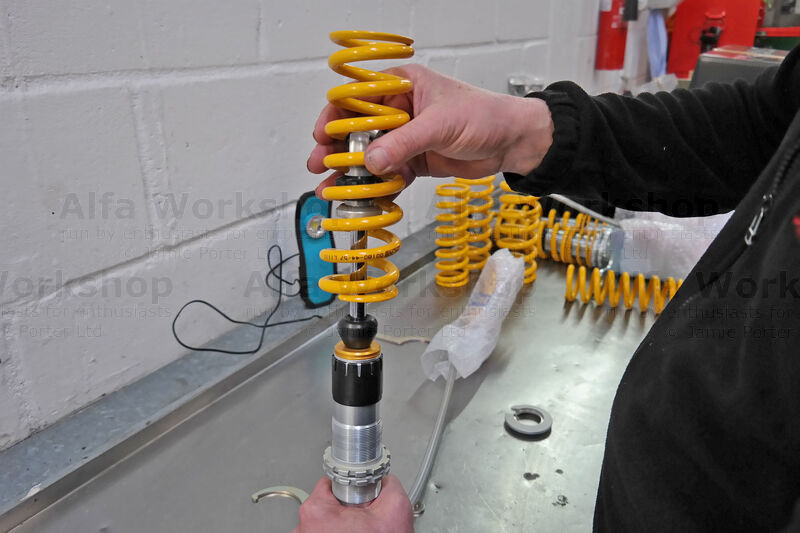

You can now remove and replace the spring then put together the Ohlins shock.
