Replacing The Fuel Filter On A Diesel Giulietta/500L & 500X

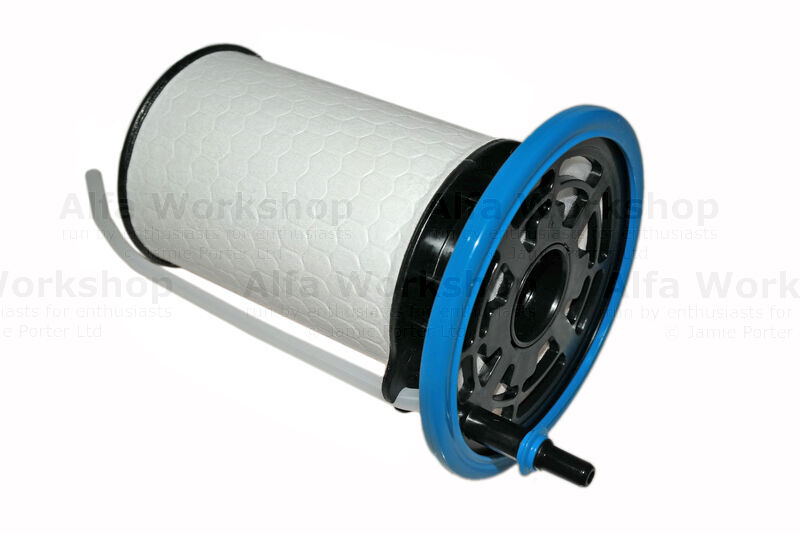

For 1.3, 1.6 & 2.0 diesel engines. This particular guide is on the Giulietta. The fuel filter needed is 77366607.

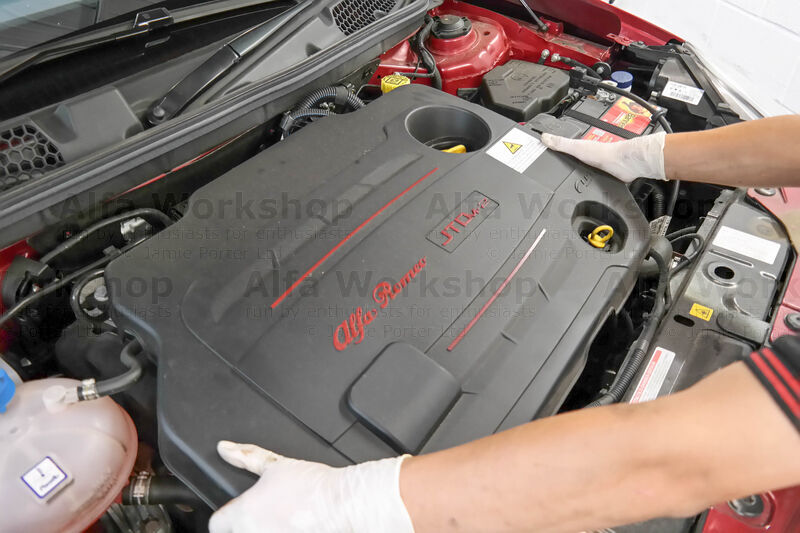

Remove the engine cover from its push fit fixings.

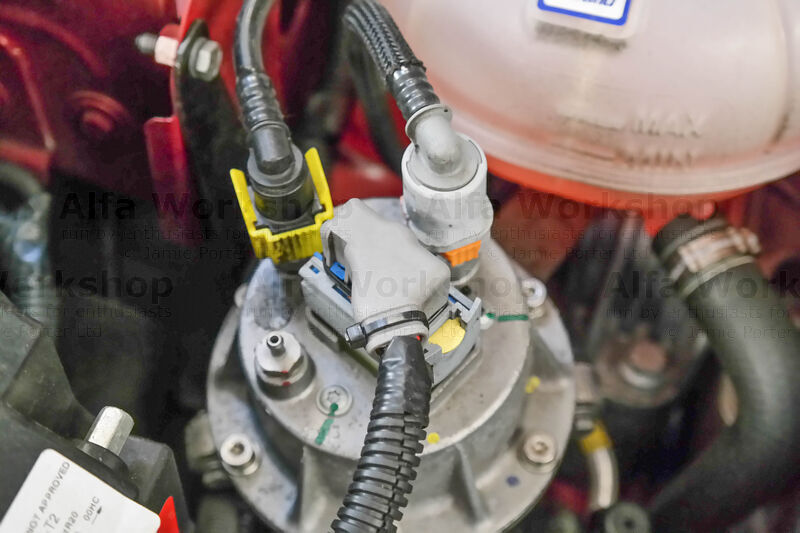

Unclip the three connectors on top of the fuel filter housing.

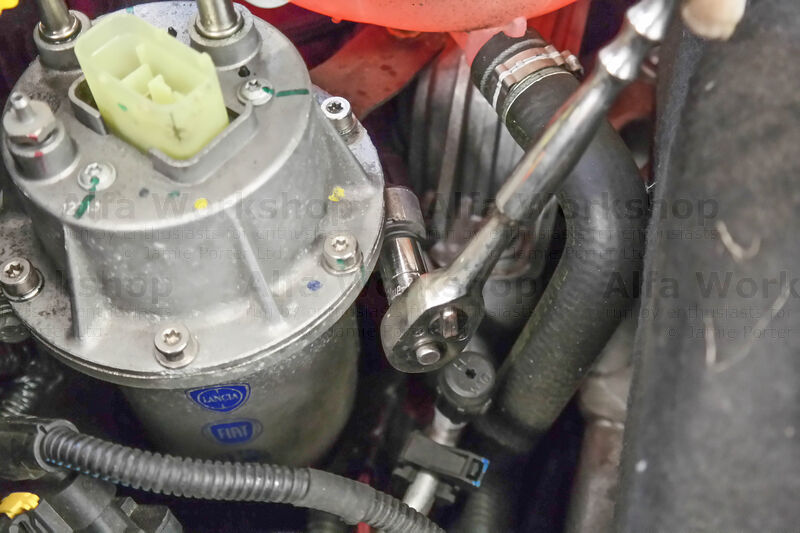

Undo the two 10mm bolts to the housing.

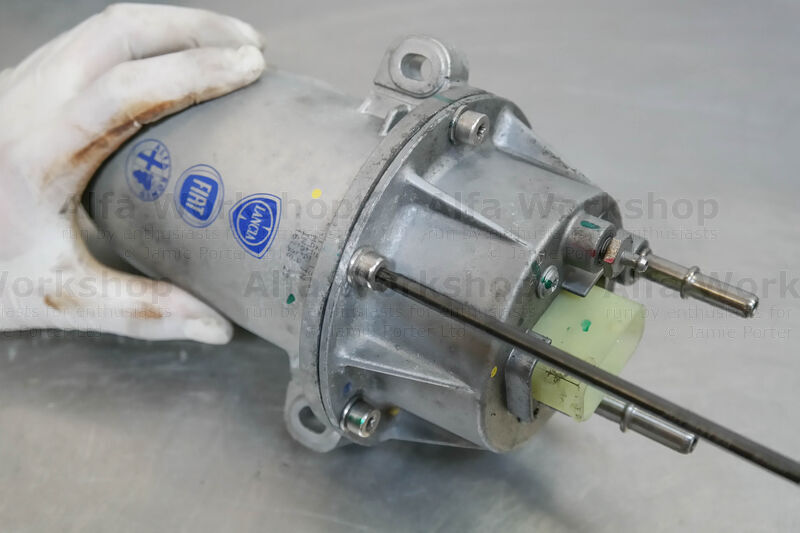

Undo the six T25 (Torx) bolts.

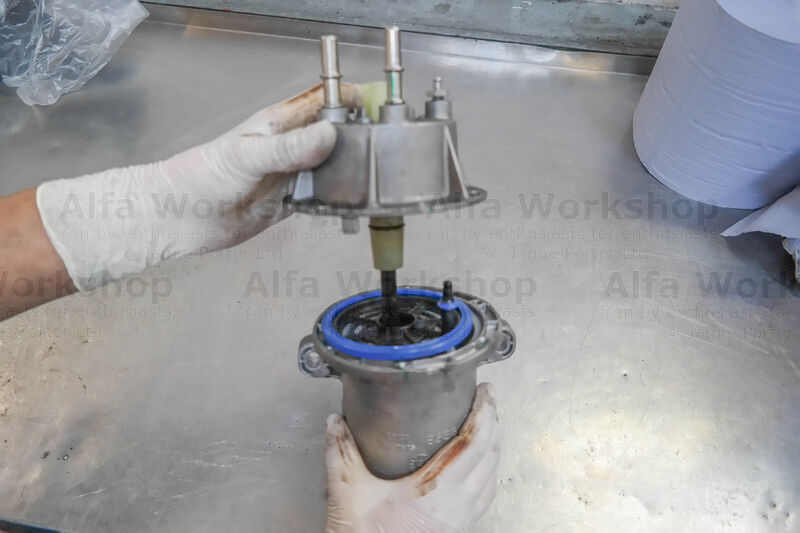

Remove the top half and extract the fuel filter. When replacing the new one, just make sure the breather hose is lined up.
