Removing A Spark Plug From A Stelvio/Giulia 2.0 (280hp)

It makes it a whole lot easier to work on the engine if you remove the strut brace bar.....but our mechanic didn't!! This 'How To' is based on the Stelvio, spark plug 50051491

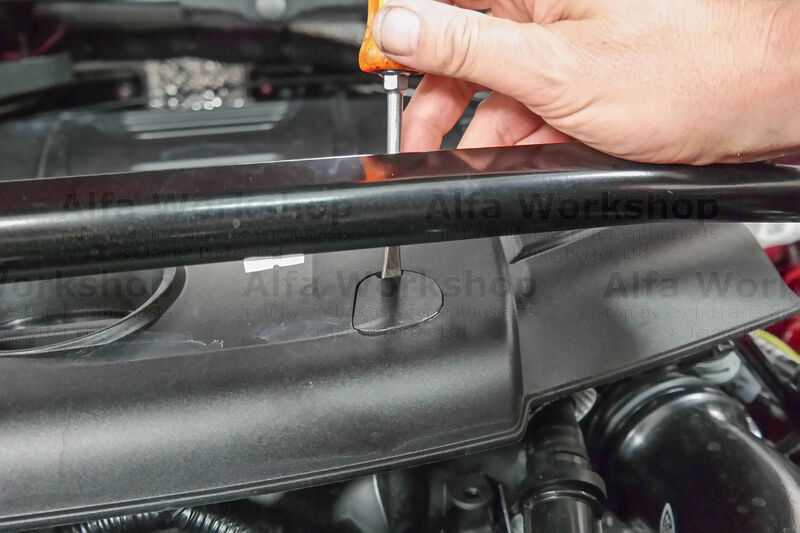

Pop out the x2 front bolt covers on the engine cover...

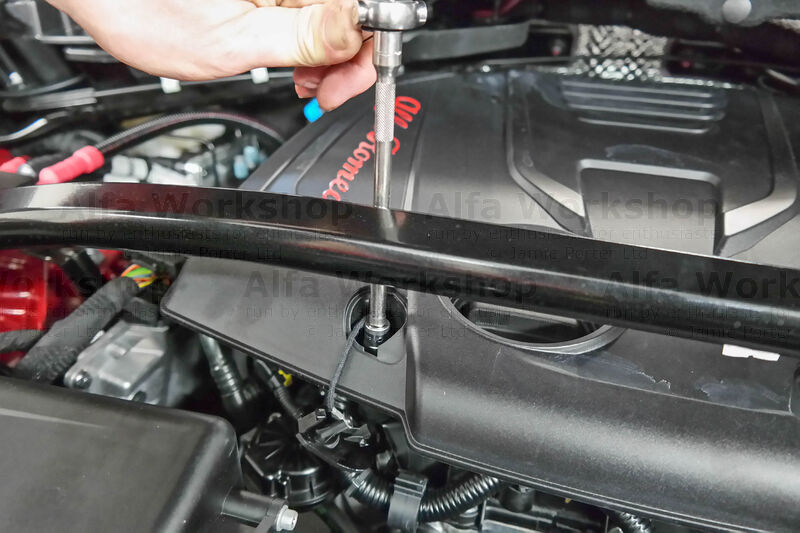

....and undo the x2 10mm bolts.

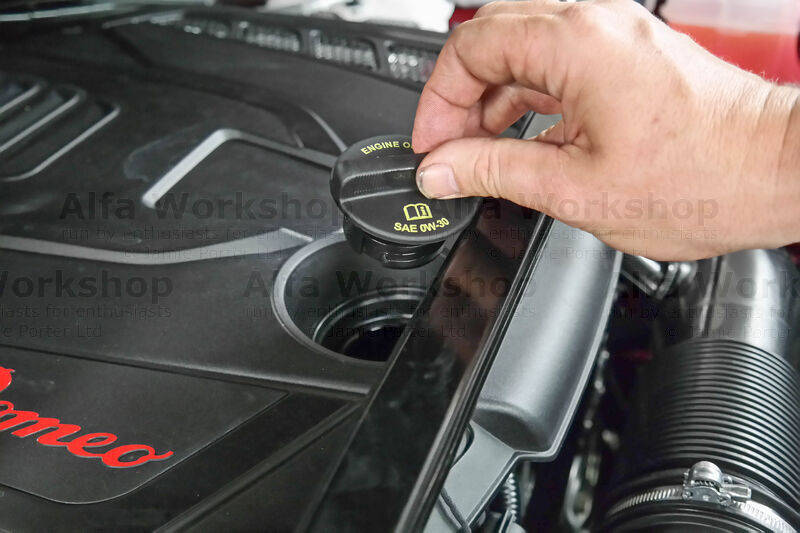

Unscrew the oil filler cap.

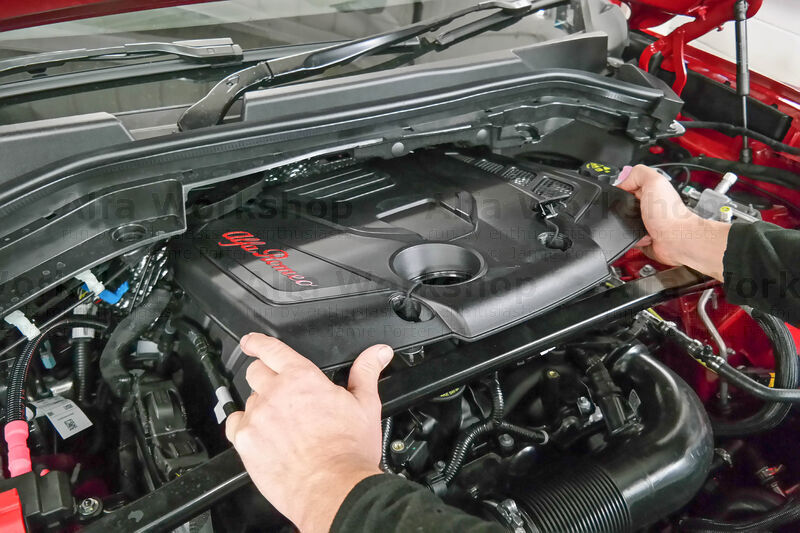

There's x2 push type fittings underneath at the back so give the engine cover a good tug there first and remove. Screw the oil filler cap back on so you don't drop anything down there.

Undo the 10mm bolt to the coil pack...

....and pull off.

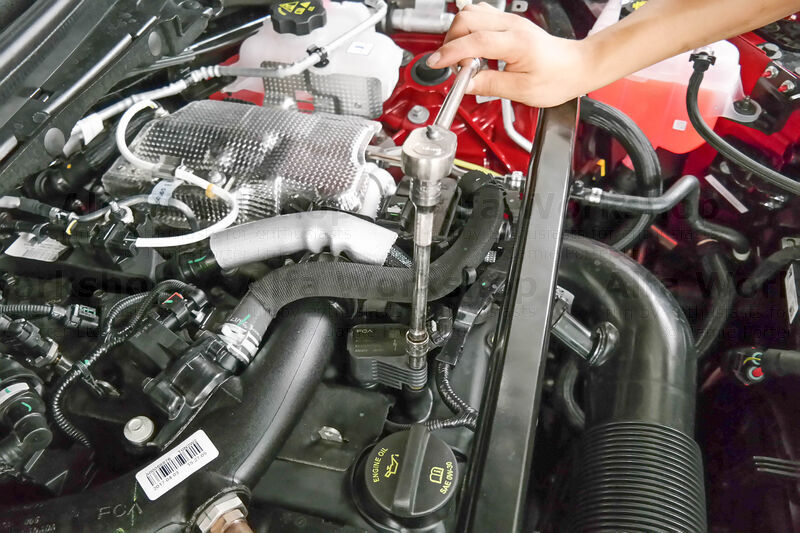

Undo the 16mm spark plug....

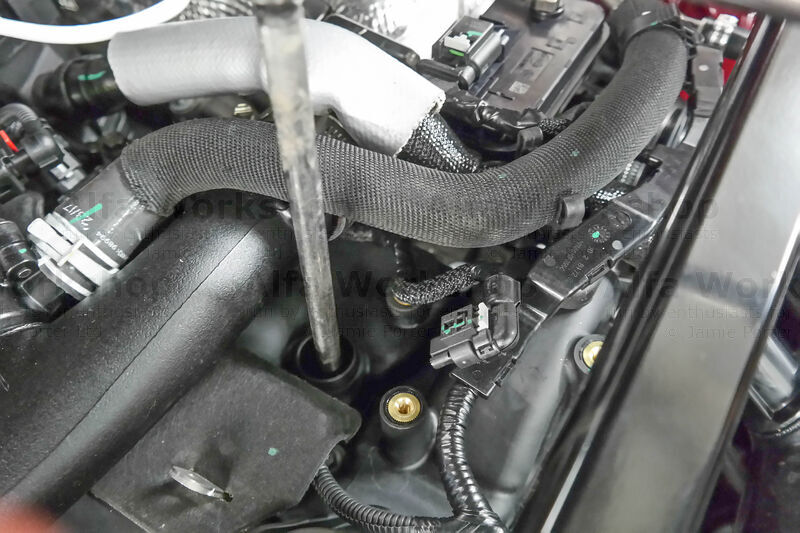

...and extract with a magnetic extension rod.

Related Links: Removing the air filter | Oil & filter change
