Repairing an Alfa Romeo JTDm with broken cam or timing belt

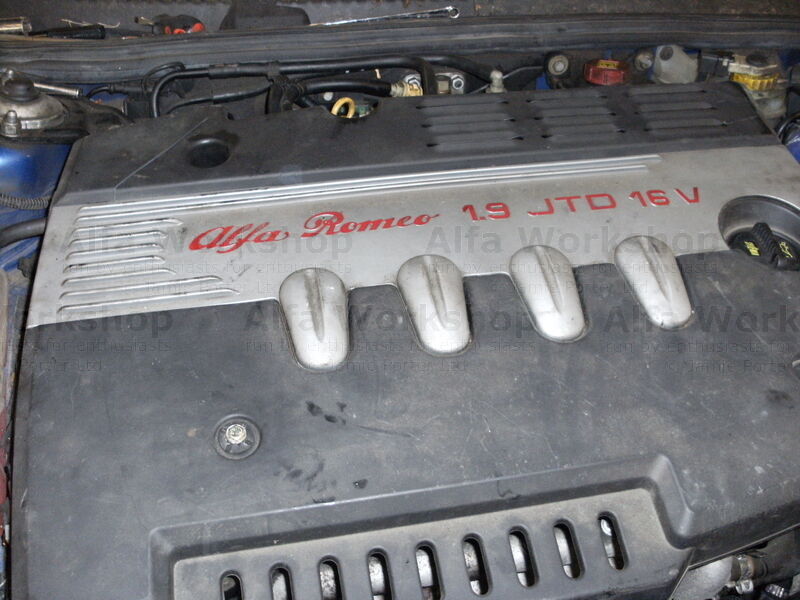

First of all if you are unfortunate enough to have a cam belt snap on a JTDm diesel engine it is not as bad as you might expect, the engines dont USUALLY bend valves they snap the rockers in half. The 1.9, 2.0 and 2.4 are basically the same engine so this guide works for all of them, just remember that the gasket s are different. So here goes, remove the top engine cover

Then depending on model remove the engine ECU from its position in front of the cam covers and then remove its mounting bracket

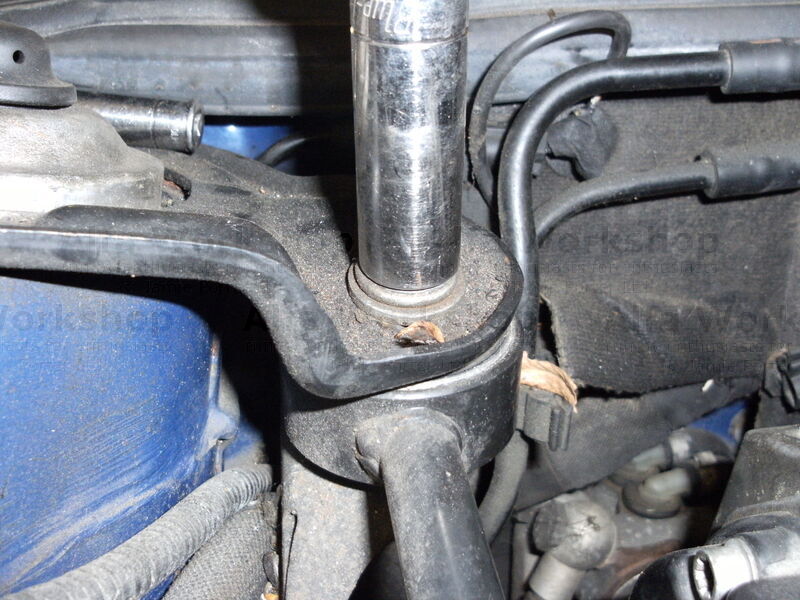

Remove the top engine stabilizer bar

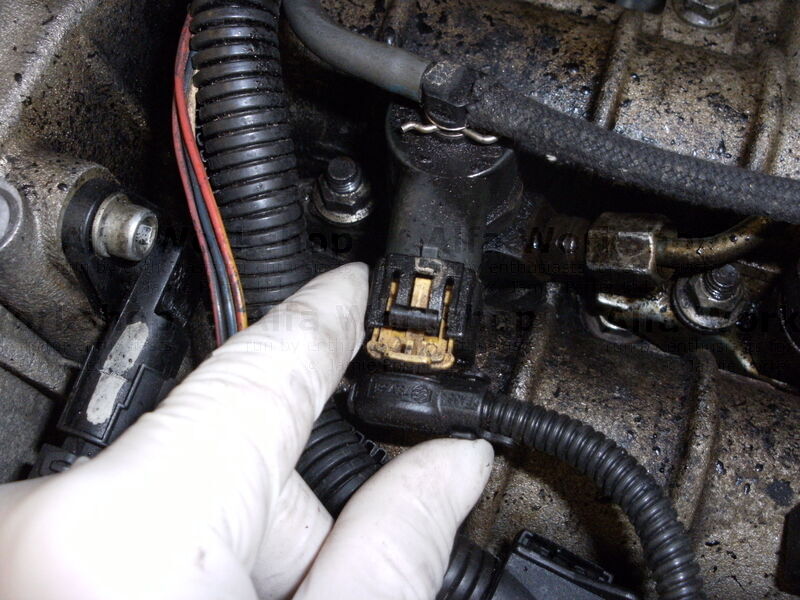

Remove all the wires from the injectors, air conditioning compressor etc

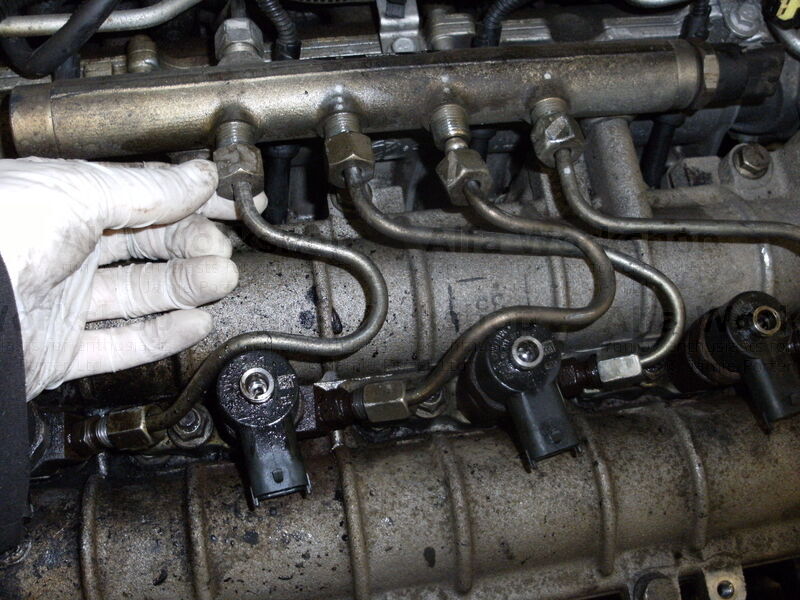

Remove diesel injector pipes and then remove diesel injectors

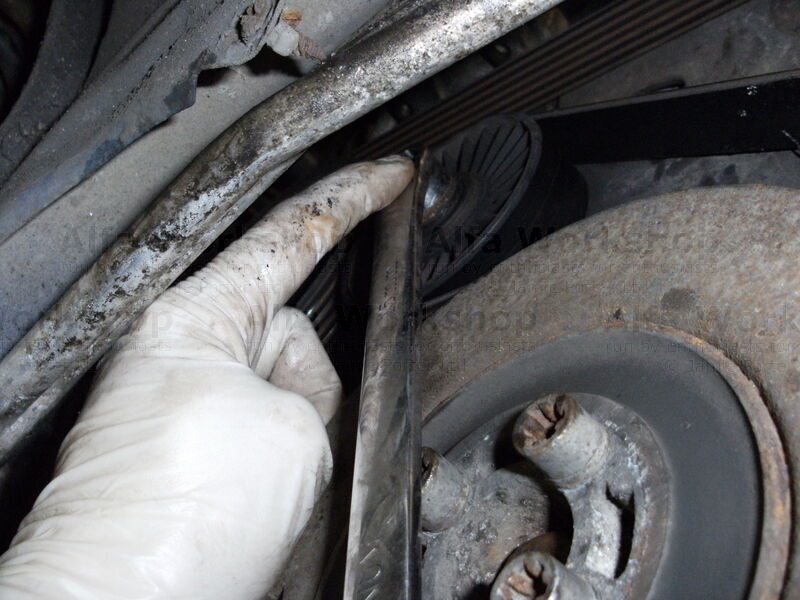

First of all remove the off side wheel, then remove the under tray and side panel, then remove the auxiliary belt

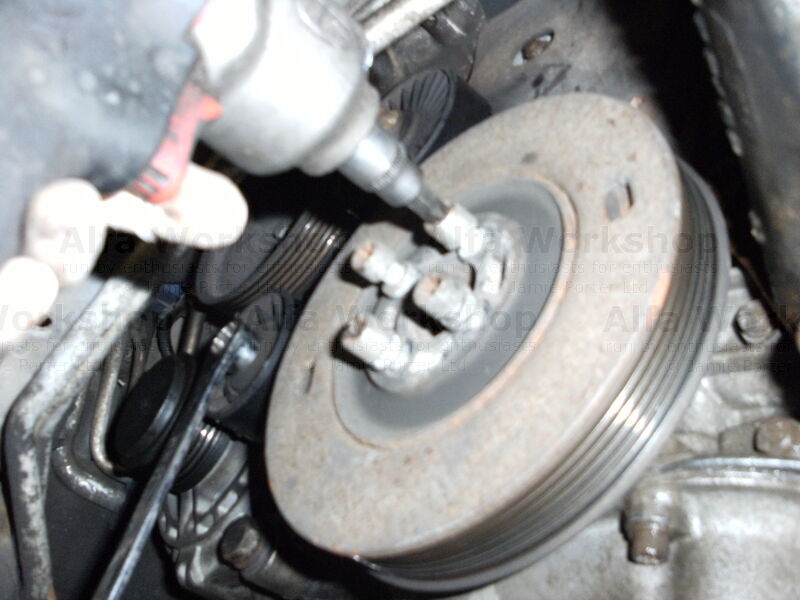

Remove auxiliary drive pully

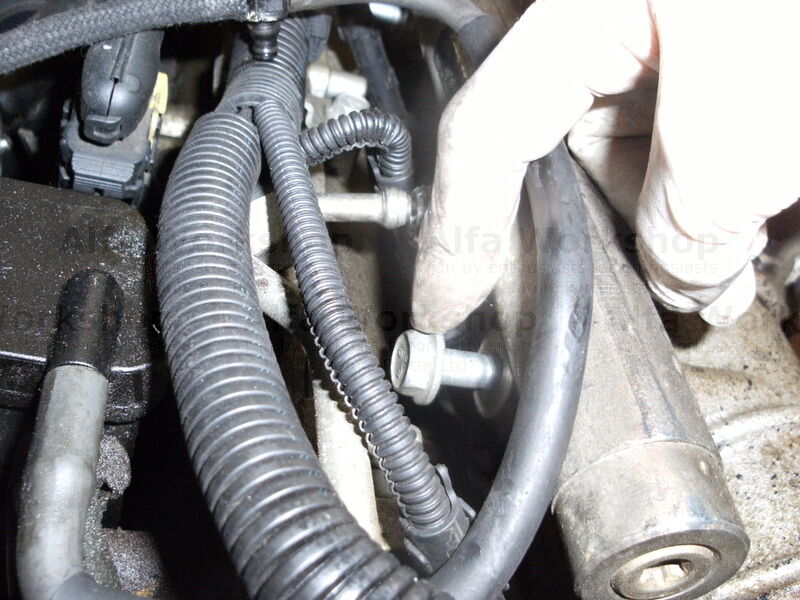

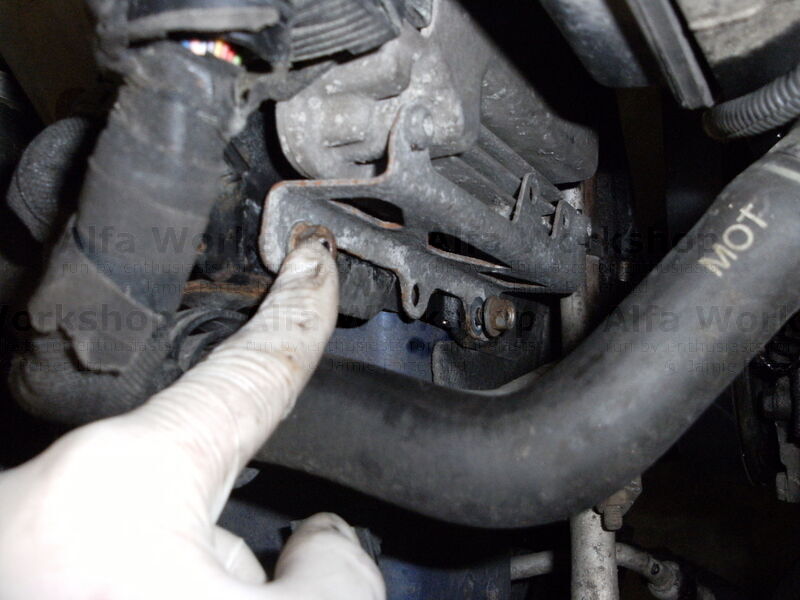

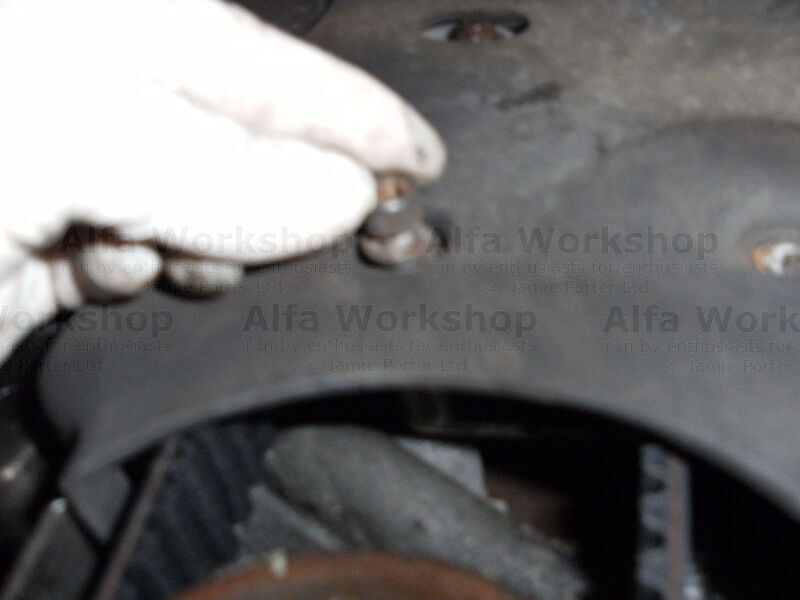

Remove the engine mount on the right hand sideof the engine bay, then remove the side covers from over the cam belt, then remove the remains of the cam belt.

Remove the high pressure fuel line

Disconnect the vacuum pipe from the vacuum pump

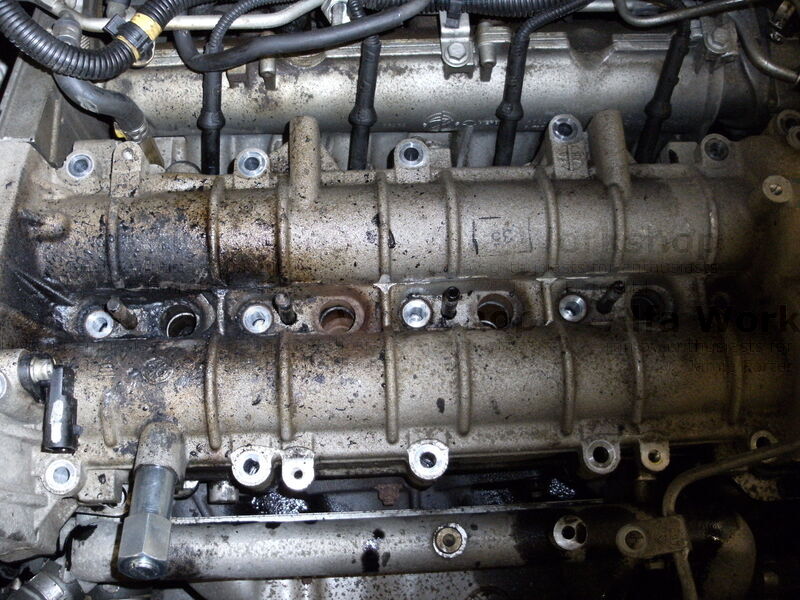

Undo bolts that secure the camshaft carrier and remove.

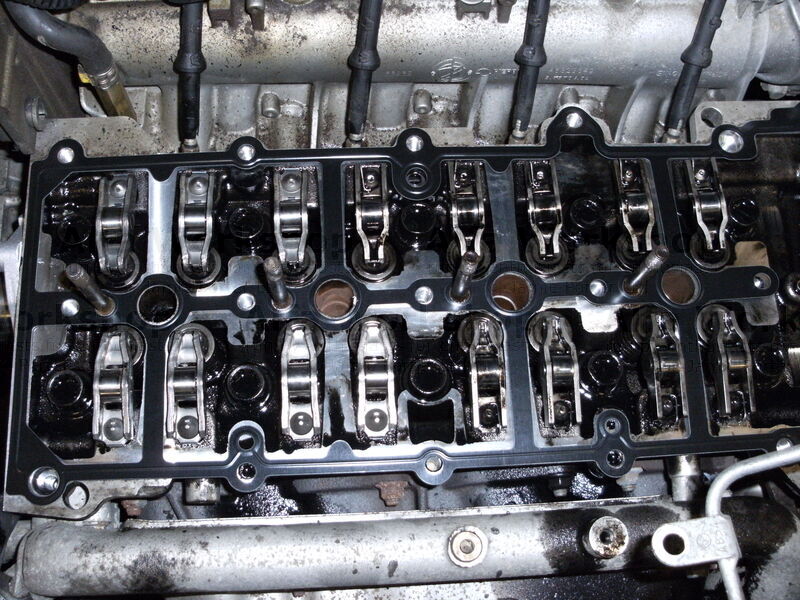

This will expose all the valve gear. Note the cam carrier gasket

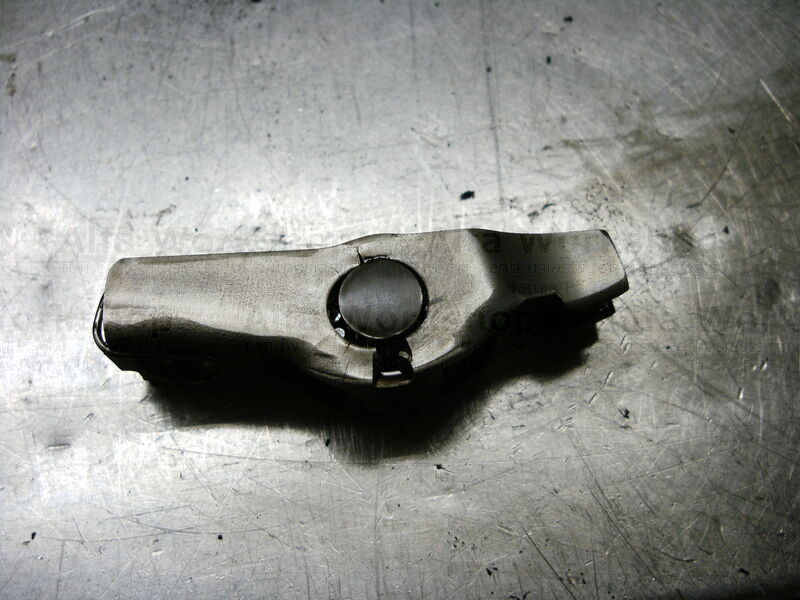

Replace all broken rockers

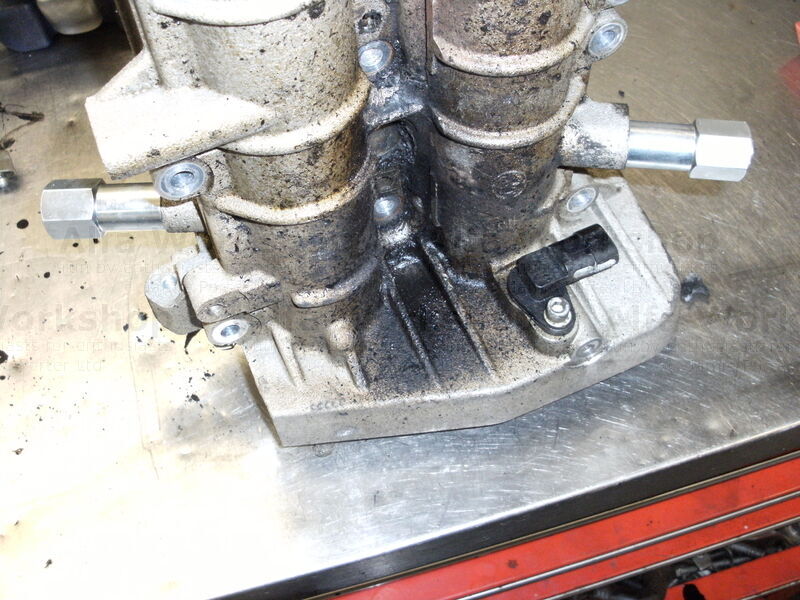

Fit camshaft locking tools into their respective holes and then re assemble the engine using the reverse of the procedure above using a replacement cam belt kit and while you have this part of the engine stripped consider replacing the water pump and injector seals. Make sure you time up the camshafts correctly using the respective guide below to do this.

Related Links: JTD Cam Belt Change Guide | How to change the cam belt on a 159/Brera
