Replacing a lower front wishbone on an Alfa 156/147/GT

Changing a tired old wishbone that's seen more pot holes than a Manchester curb crawl. Having ground clearance is a big help on this one. This is for the left hand side or Near Side.

border='1'

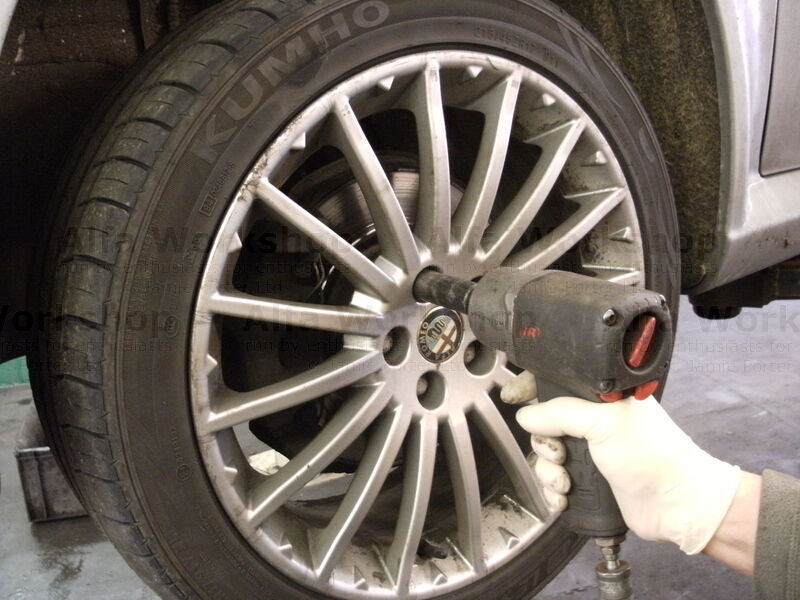

A good starting point once the vehicle is jacked up safely, is to take off the under tray and remove the front wheel.

border='1'

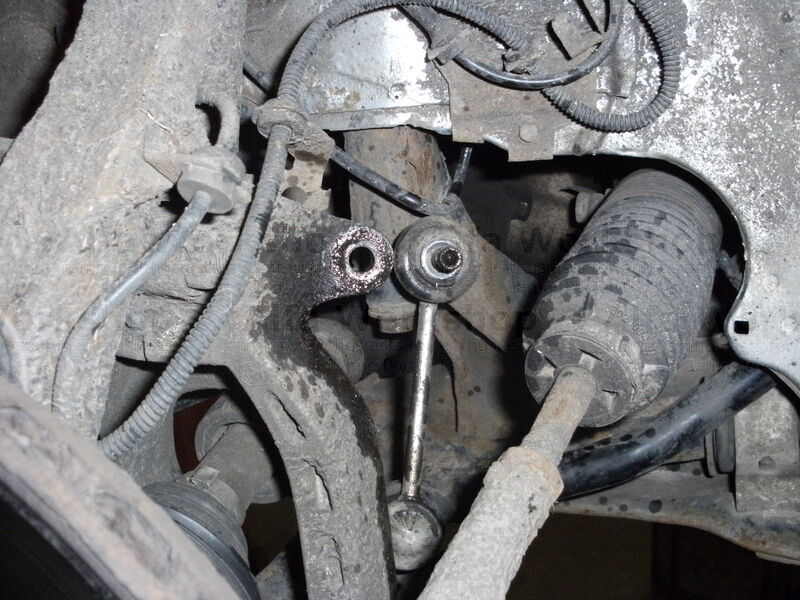

Undo the 17mm nut holding the drop link to the fork leg.

border='1'

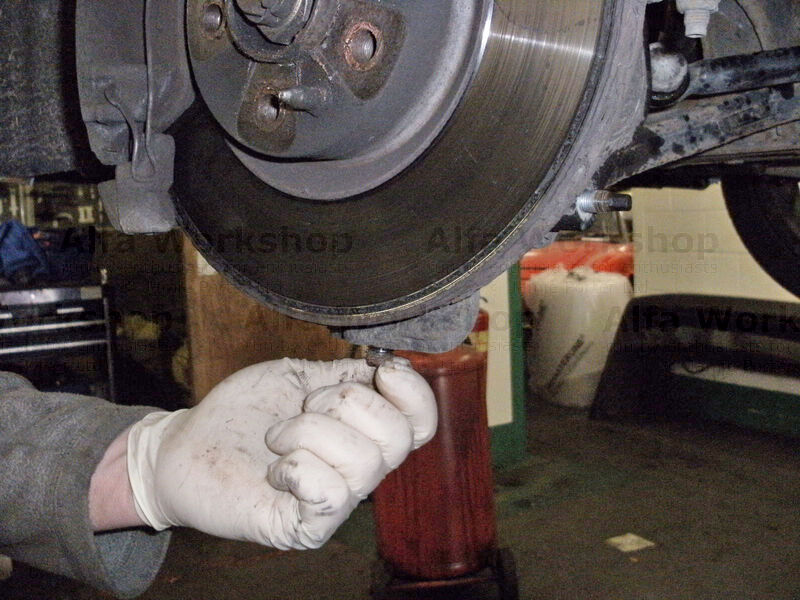

Undo the 22mm nut holding the wishbone ball joint to the bottom of the front pillar.

border='1'

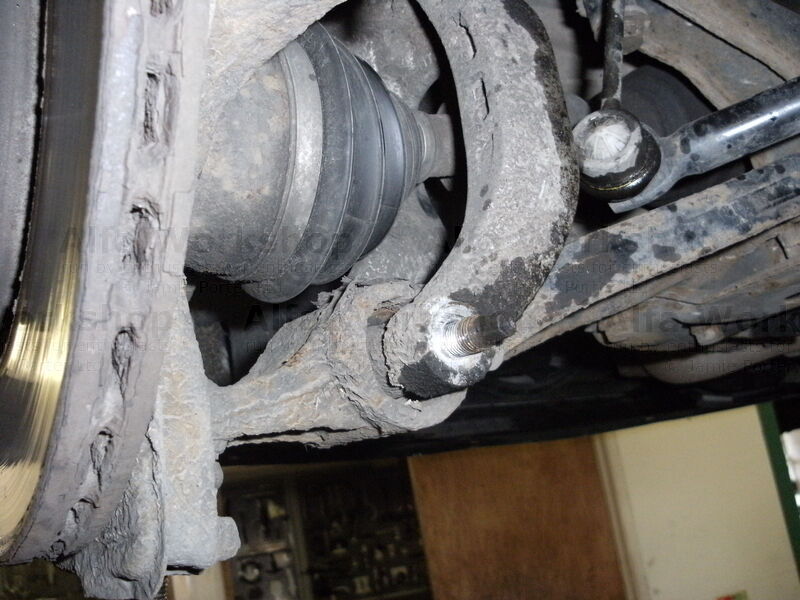

Undo the 19mm nut on the bolt that passes through the bottom of the fork leg and wishbone knuckle but leave the bolt in.

border='1'

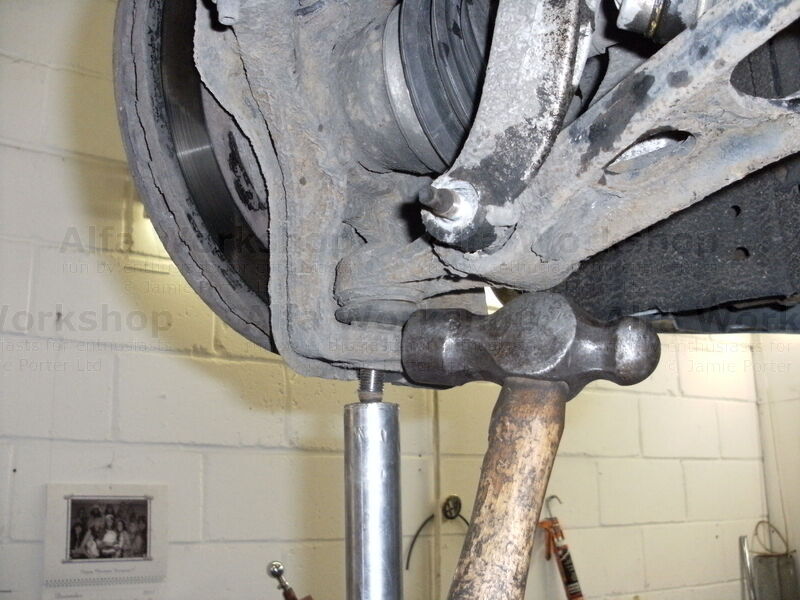

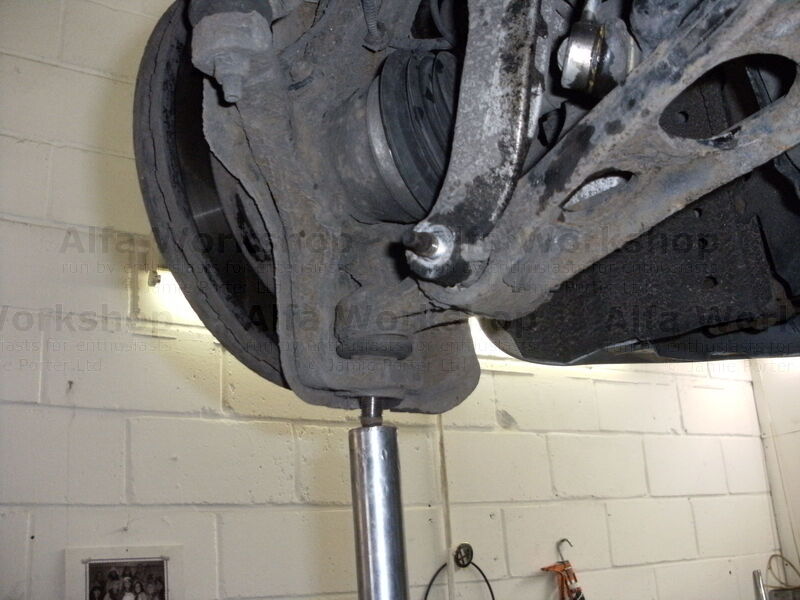

Apply upward pressure on the wishbone ball joint to put some load on the front suspension......

border='1'

....so after a few given TAPS with a hammer (if you get my drift) the pillar should pop from the ball joint. Now you can remove the knuckle bolt.

border='1'

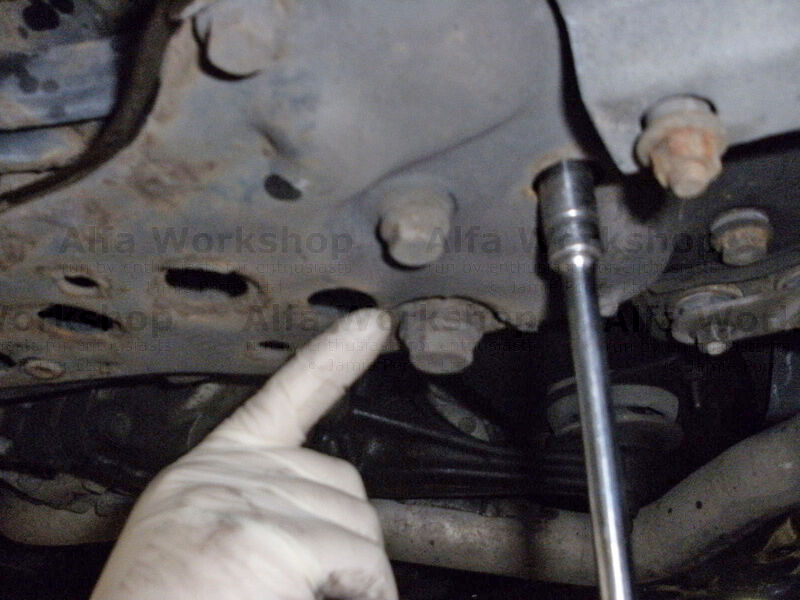

Loosen the two anti roll bar bolts to allow more room to aid the removal and replacement of the wishbone.

border='1'

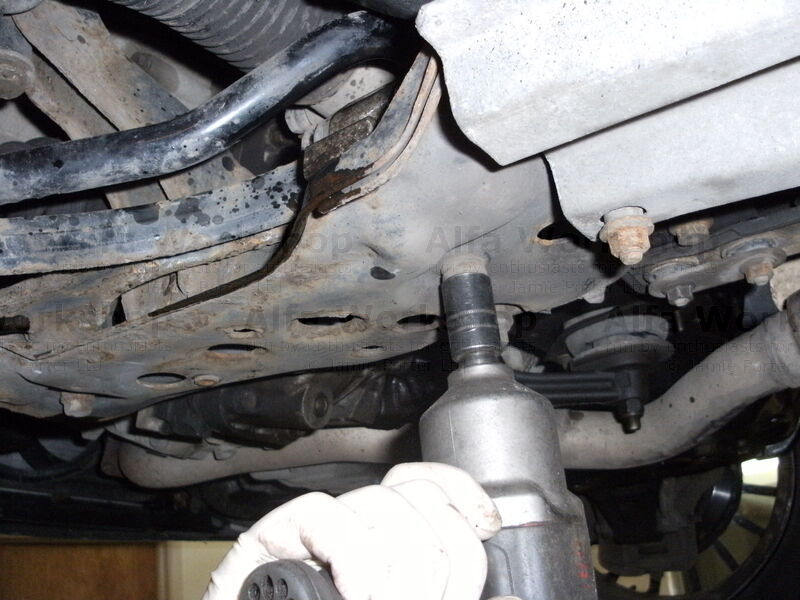

Undo the four wishbone mount bolts, with a certain amount of wiggling the wishbone can now be removed.

border='1'

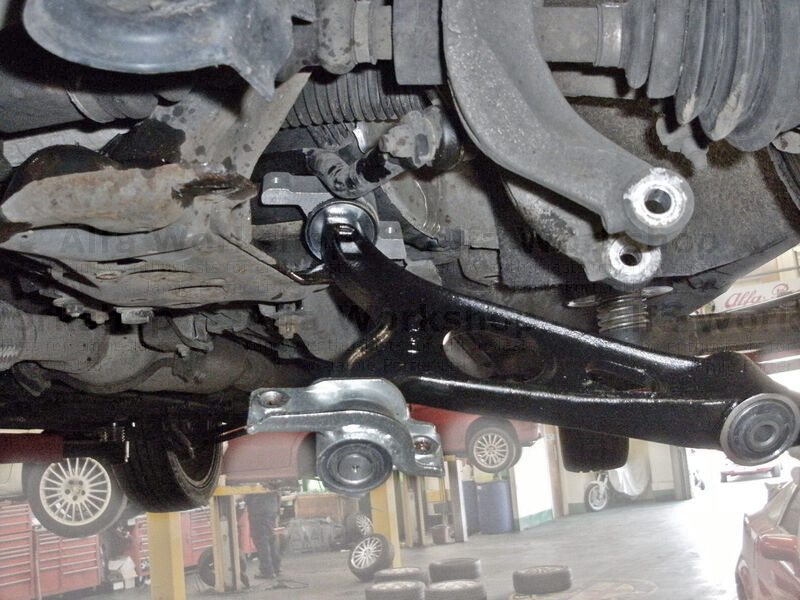

Insert the rear corner of the new wishbone first and then the front. (Parts: 156 lower wishbones, 147 lower wishbones, GT lower wishbones)

border='1'

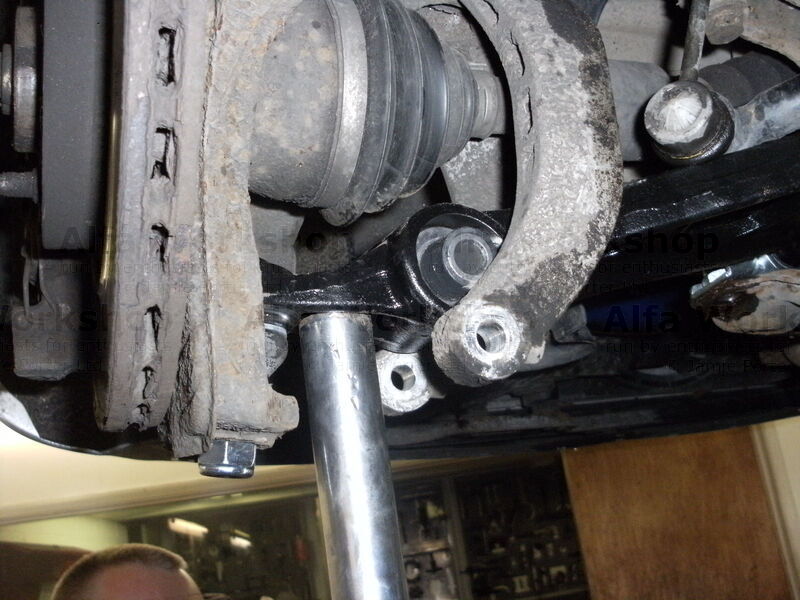

Tack the ball joint to the pillar and add some upward pressure to flatten the wishbone mounts to the sub frame.

border='1'

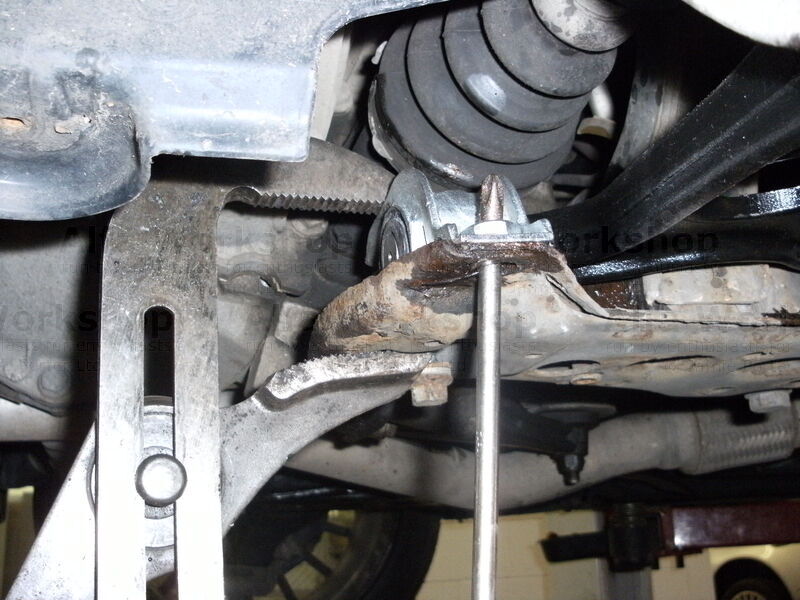

Use hand grips to hold the front wishbone mount in place and a screw driver to align the holes then tack the two bolts.

border='1'

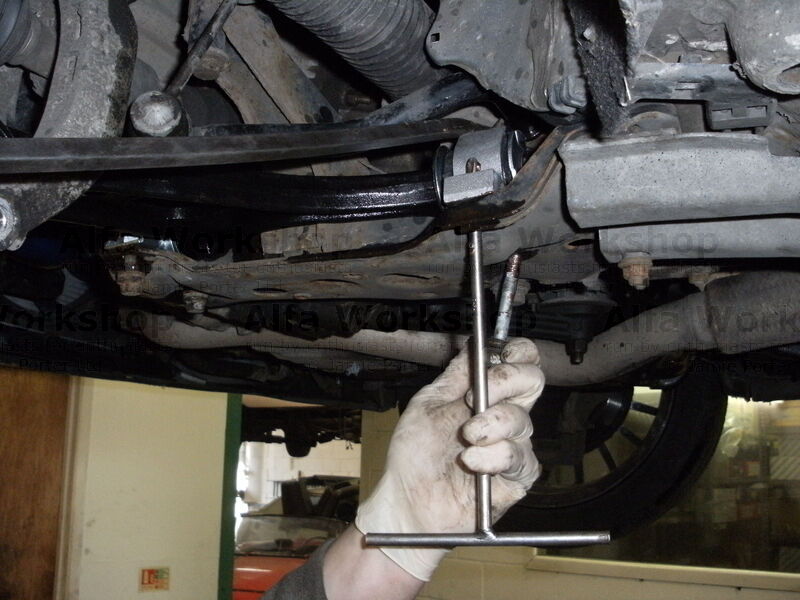

Align and tack the rear mount then fasten all four bolts. Now put everything back together and don't forget to tighten the anti roll bar back up.
