Upgrading The Intercooler Hoses On The 4C to Samco Hoses.







The quality of Samco hoses speak for them selves.

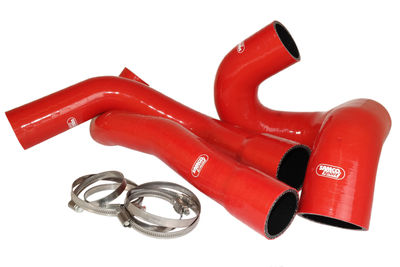

Samco hose kit TCS654 and clips TBHC6

Workshop time: 1 hour




If you would like to book your 4C into the workshop for this upgrade the price is £432.18


border='1'

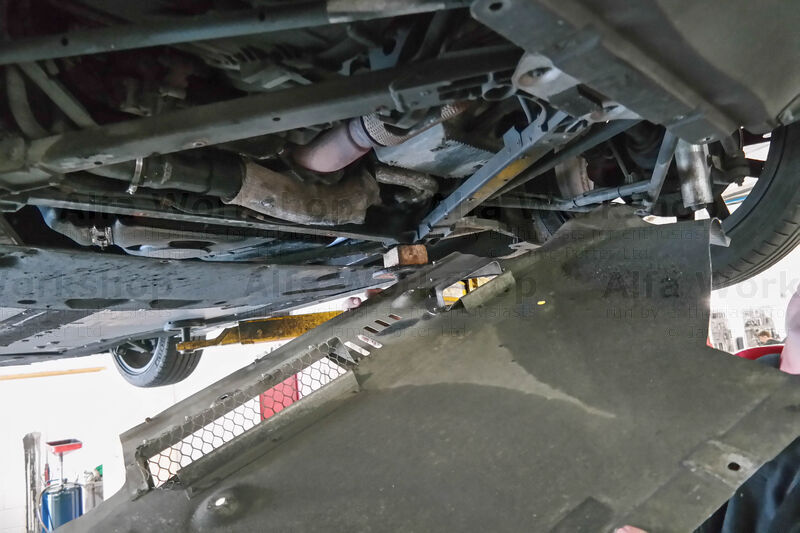

Undo the T27 (Torx) screws and remove the under tray.

border='1'

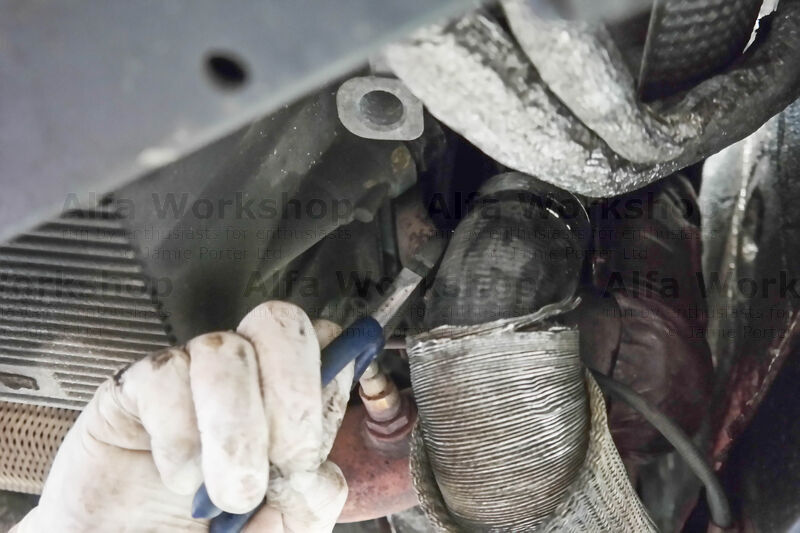

Undo the clip for the hose from the turbo...

border='1'

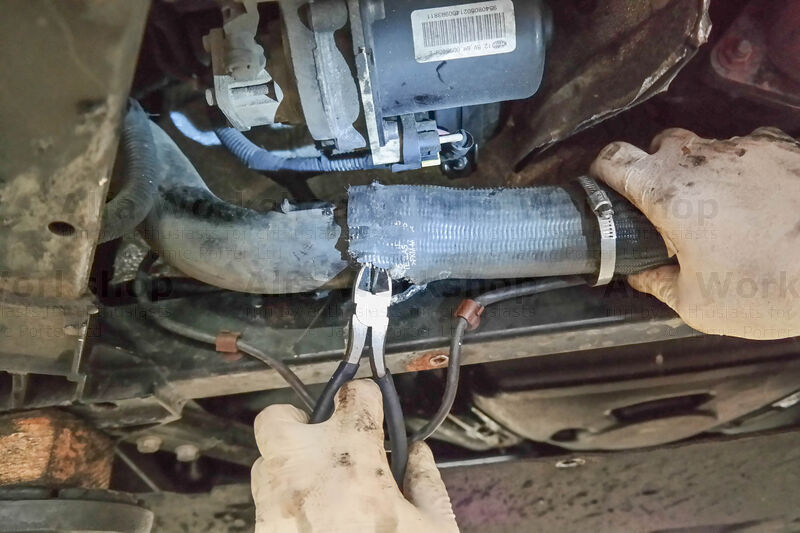

...and the clip at the other end to the link pipe. On newer models the hose may also be glued to the link pipe.

border='1'

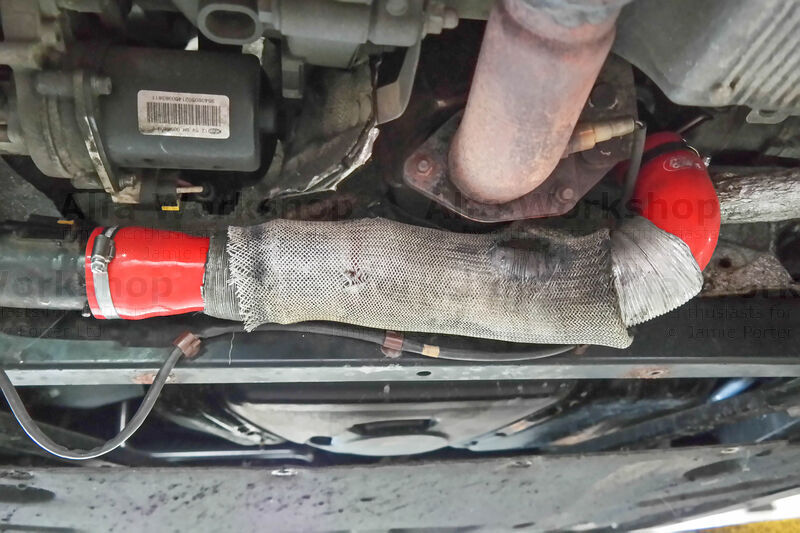

Swap over the protective heat wrap and clip up the new Samco hose.

border='1'

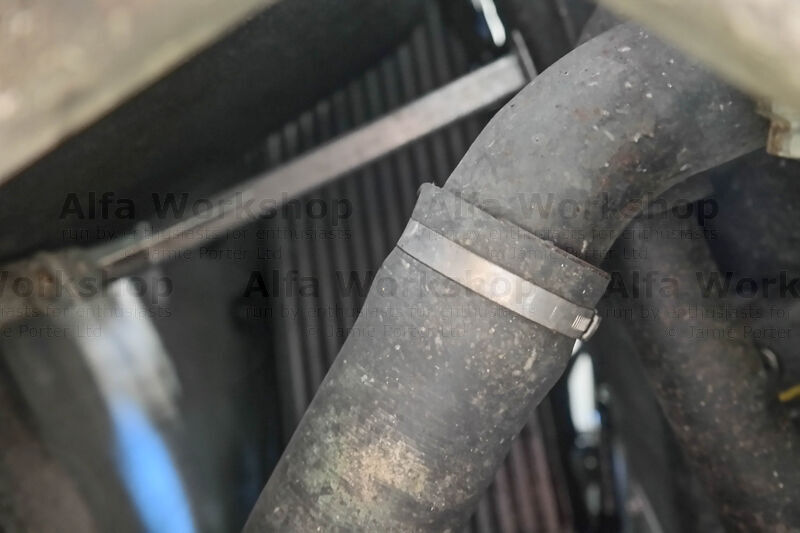

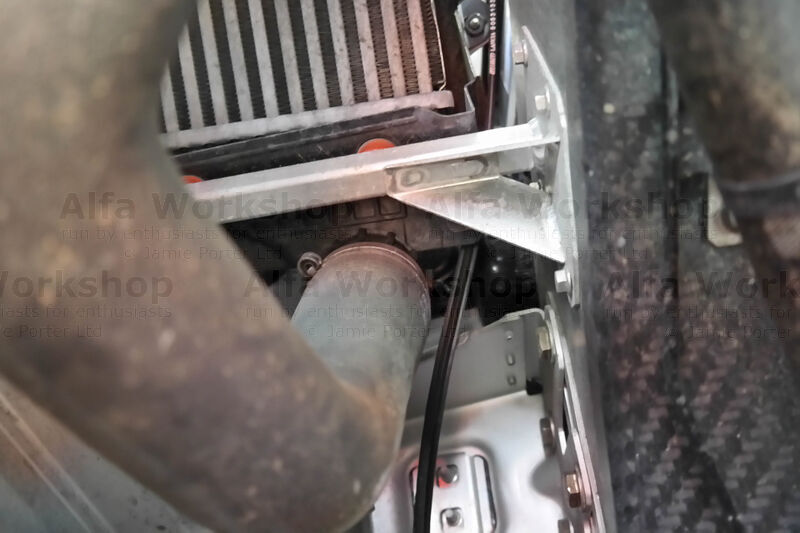

Undo the clip from the link pipe...

border='1'

....and the one to the intercooler.

border='1'

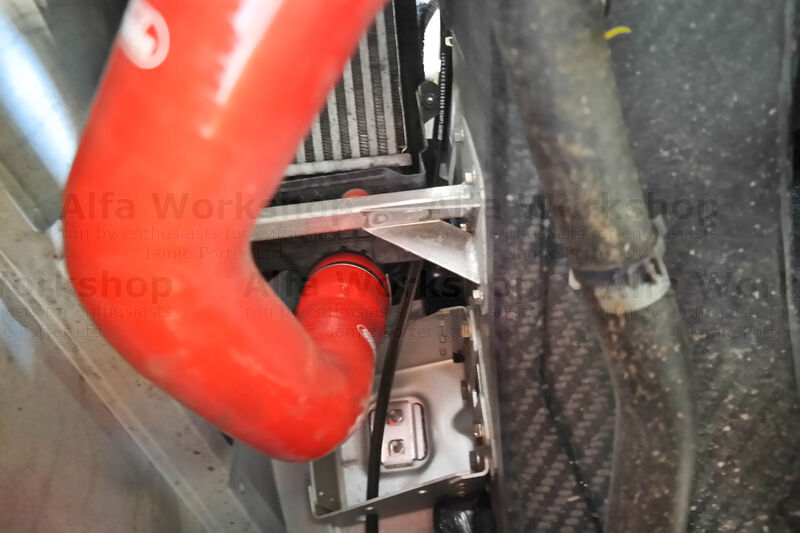

Replace with the new hose and clips.

border='1'

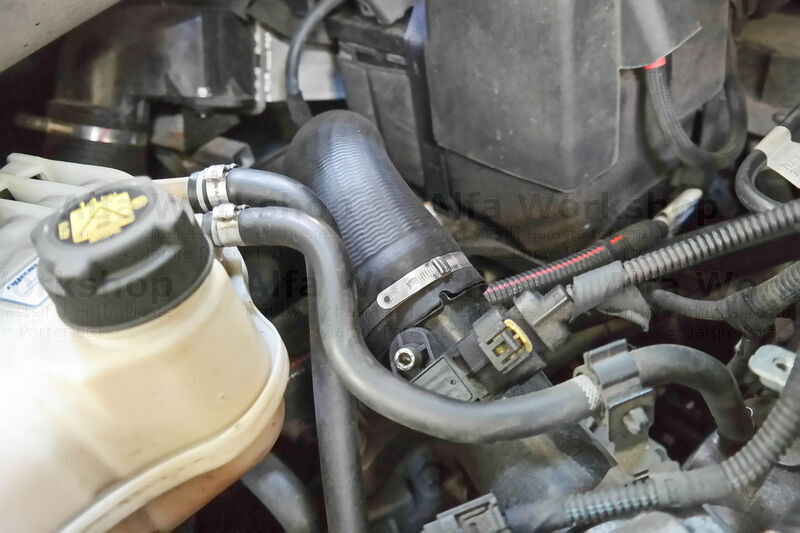

Undo the last x2 clips at the top of the intercooler and the inlet manifold.

border='1'

Replace the hose and fasten the jubilee clips.
