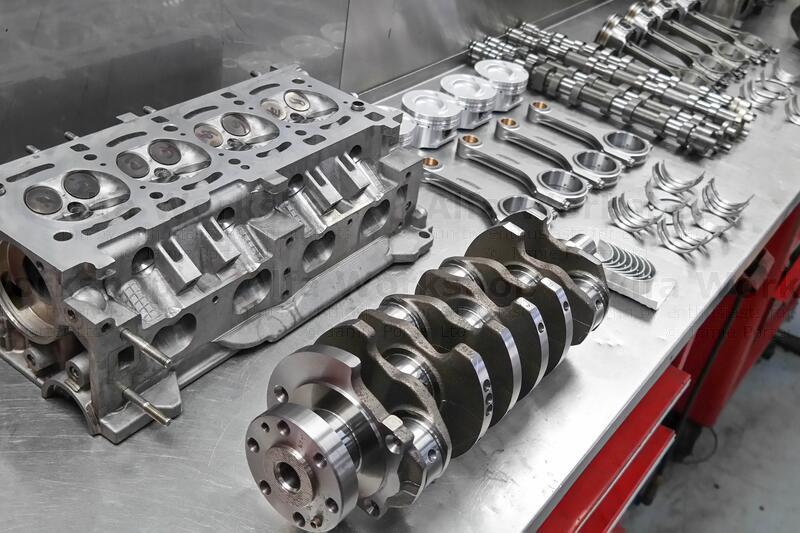

A Picture Gallery Listing The Necessary Parts For A 2.0 Litre Engine Conversion On An Alfa 4C

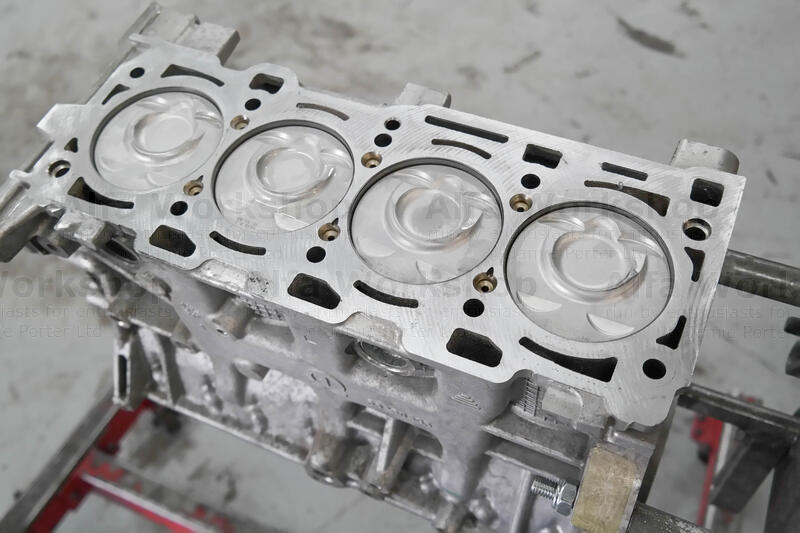

![border='1'](/images/1026-0-120.jpg) | • OMEGA CNC pistons • Piston rings
|

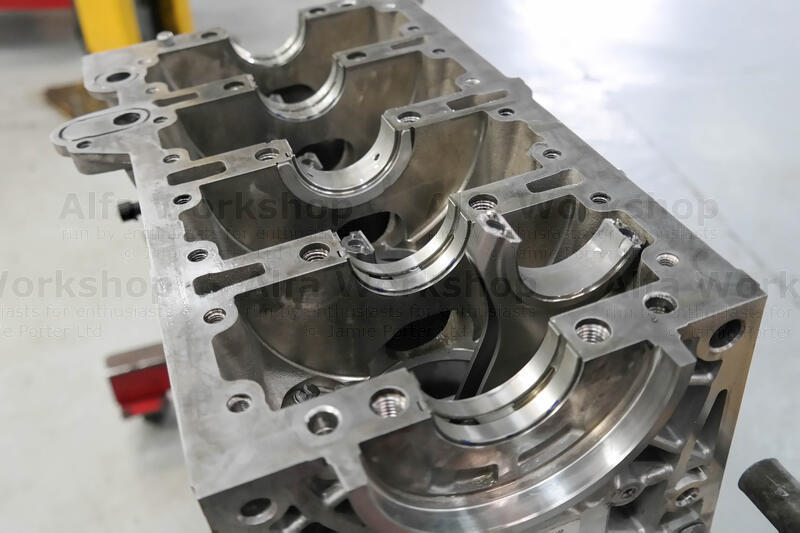

![border='1'](/images/1026-1-120.jpg) | • ARROW con rods • Big end bearings • Main bearings |

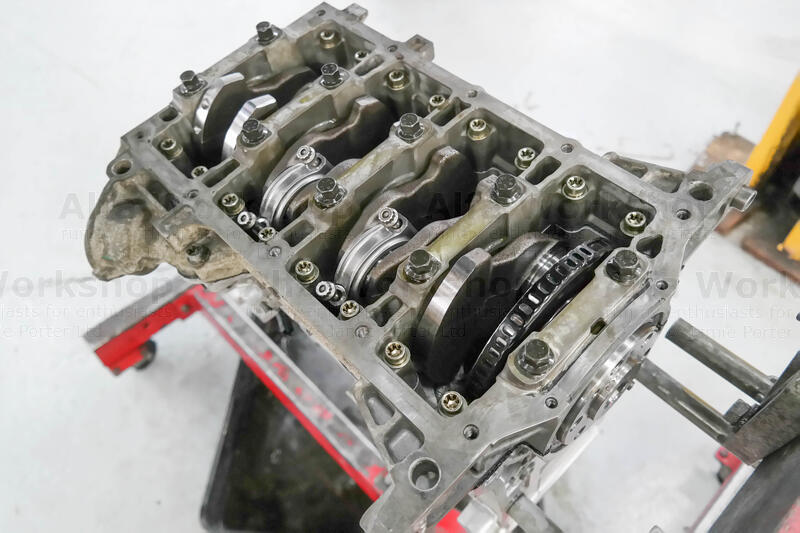

![border='1'](/images/1026-2-120.jpg) | • NEW modified and balanced crank • Thrust bearings |

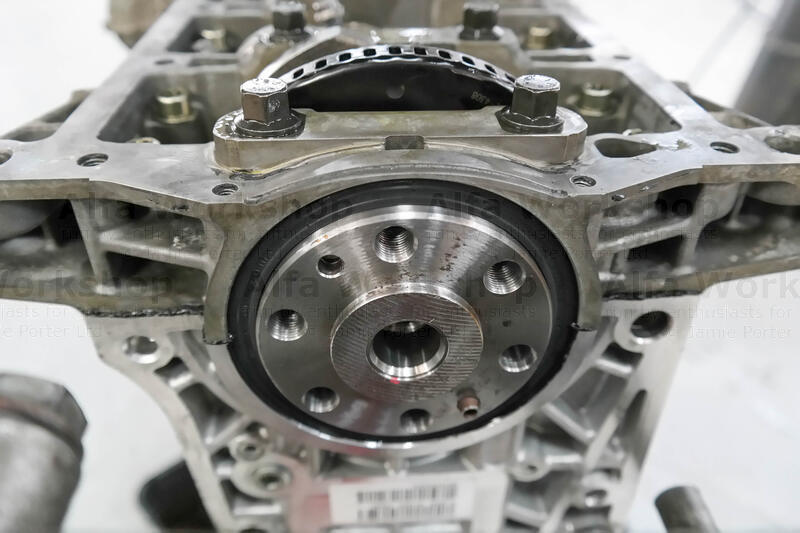

![border='1'](/images/1026-3-120.jpg) | • Rear main oil seal |
![border='1'](/images/1026-4-120.jpg) | • Head gasket |

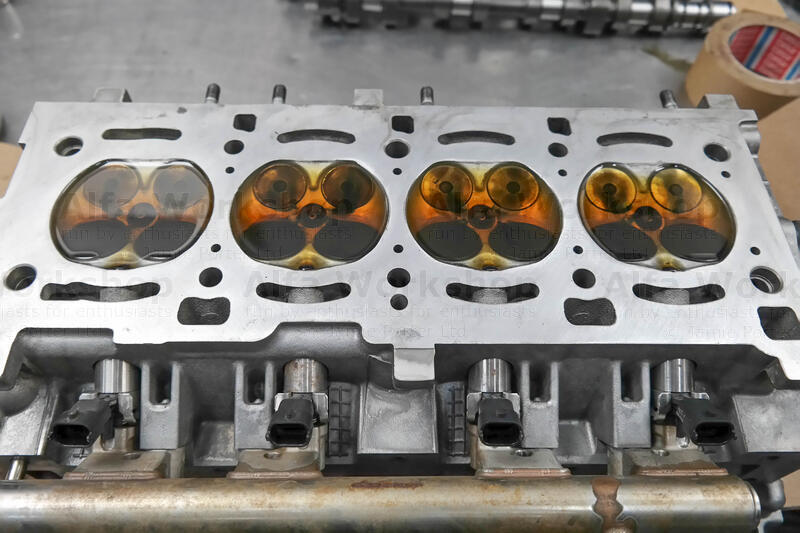

![border='1'](/images/1026-5-120.jpg) | • GAS FLOWED cylinder head (original valves lapped) • Valve stem seals |

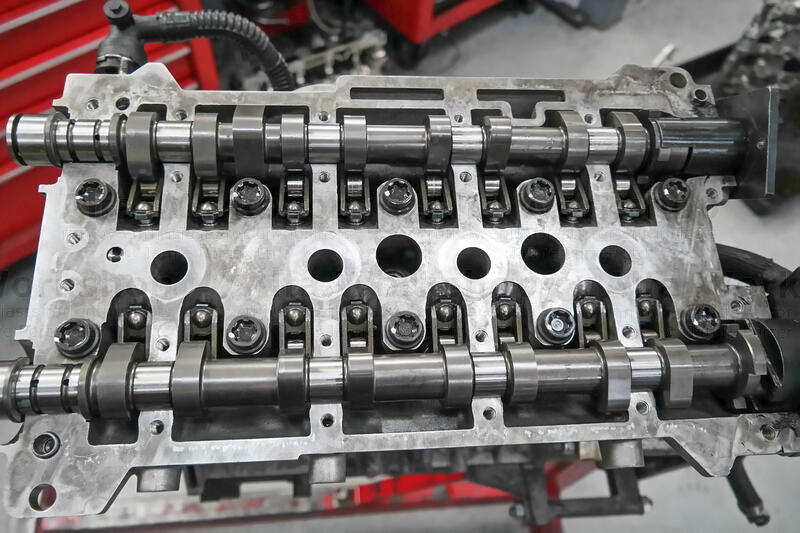

![border='1'](/images/1026-6-120.jpg) | • STAGE 1 PERFORMANCE camshafts • Cam shaft seals |

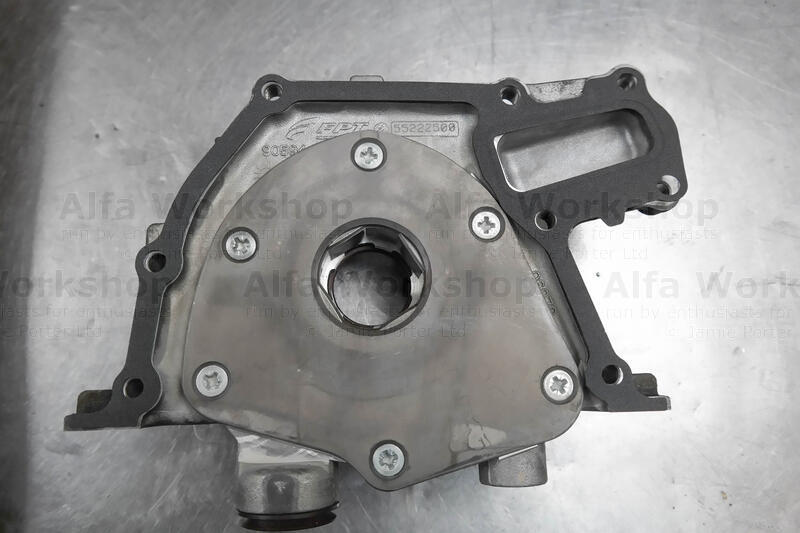

![border='1'](/images/1026-7-120.jpg) | • Oil pump gasket • Oil cooler gasket (not pictured) |

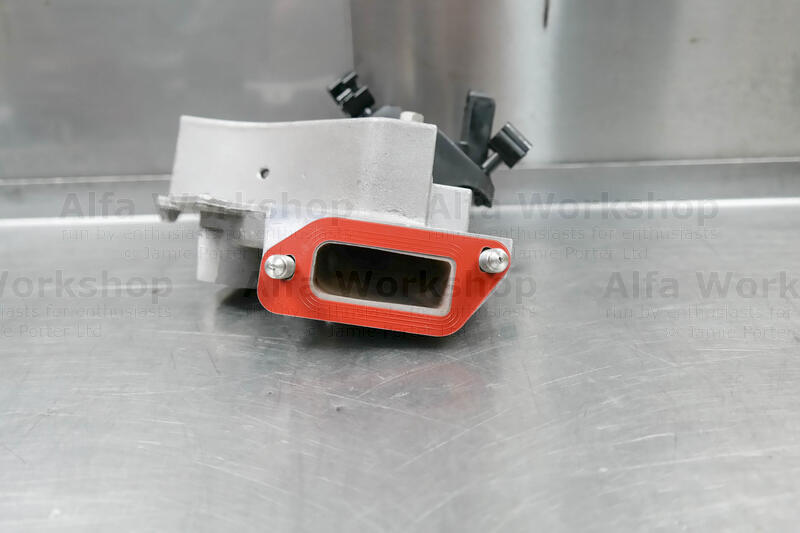

![border='1'](/images/1026-8-120.jpg) | • Water jacket gasket |

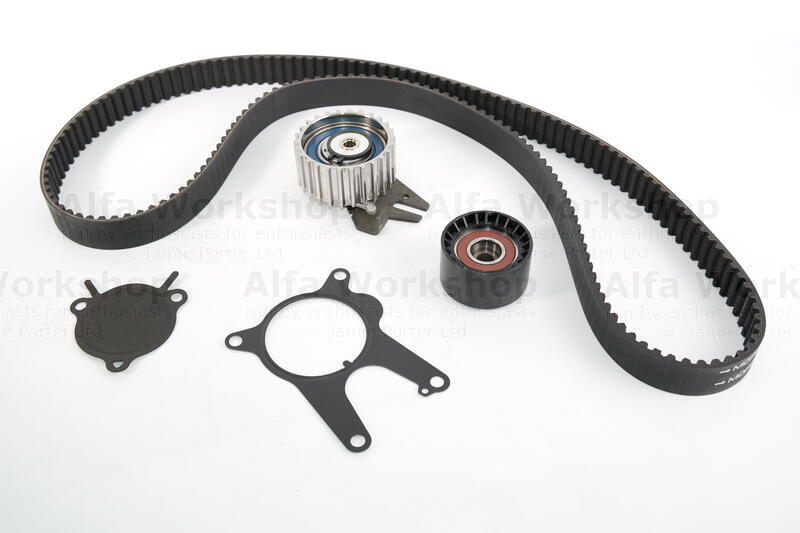

![border='1'](/images/1026-9-120.jpg) | • cam belt kit • Inlet cam blanking plate gasket • Exhaust cam vacuum pump gasket |

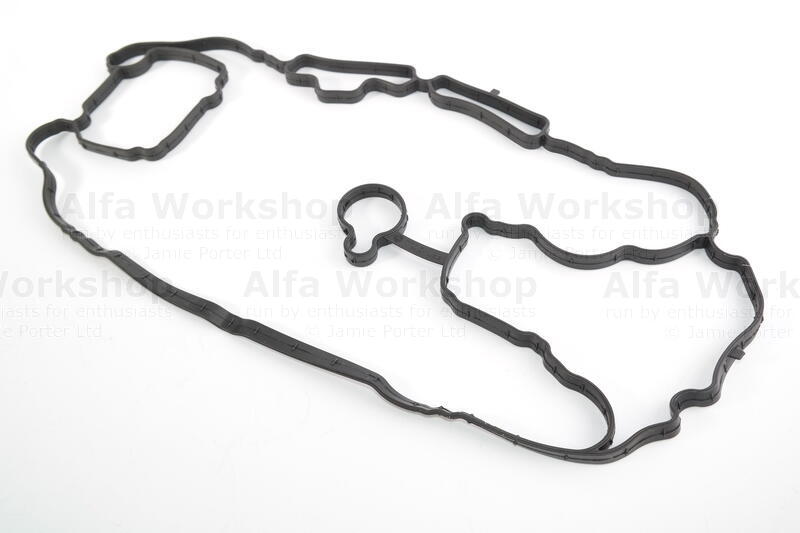

![border='1'](/images/1026-10-120.jpg) | • Rocker cover gasket |

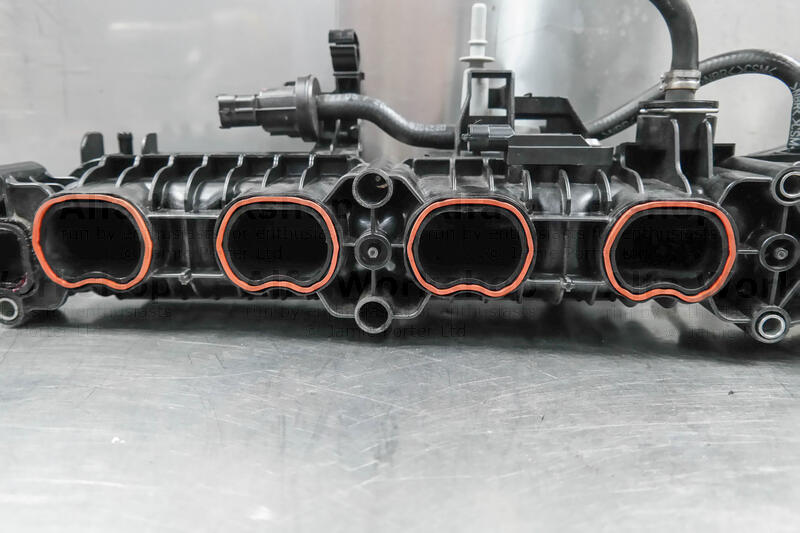

![border='1'](/images/1026-11-120.jpg) | • Intake manifold seals |

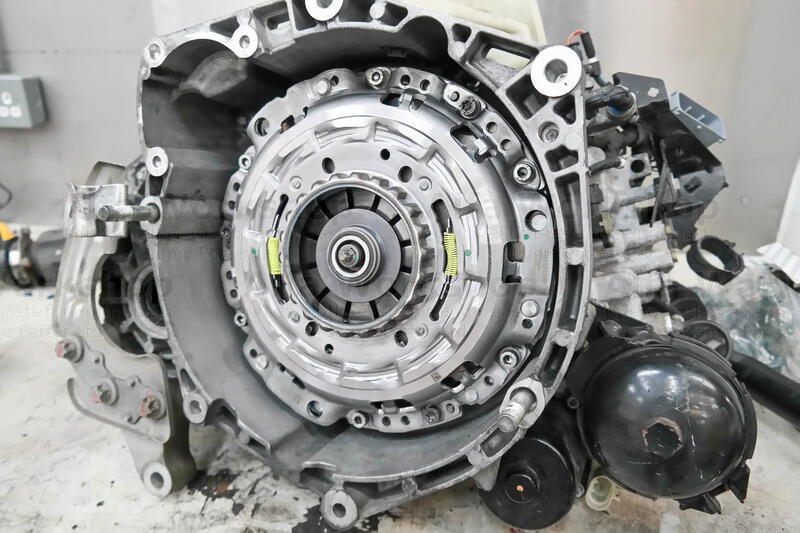

![border='1'](/images/1026-12-120.jpg) | • TCT clutch • Concentric slave cylinder (not pictured) • Input shaft seals and end securing cap |

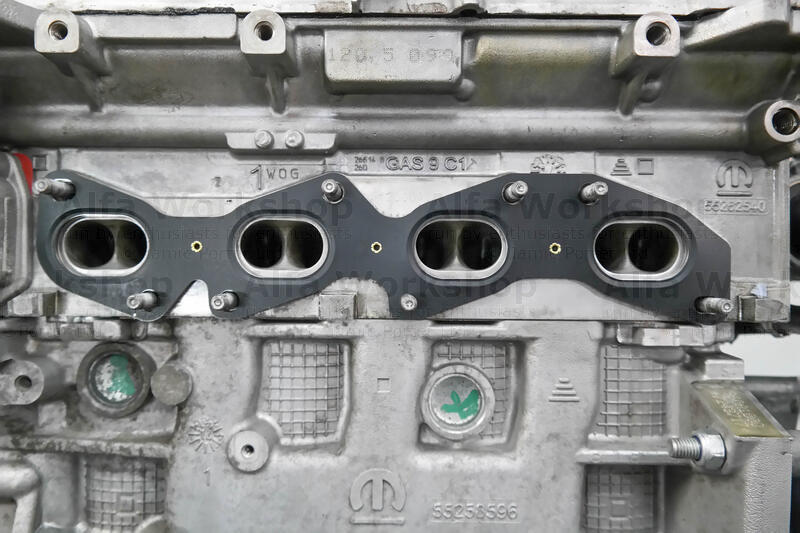

![border='1'](/images/1026-13-120.jpg) | • Exhaust manifold gasket |

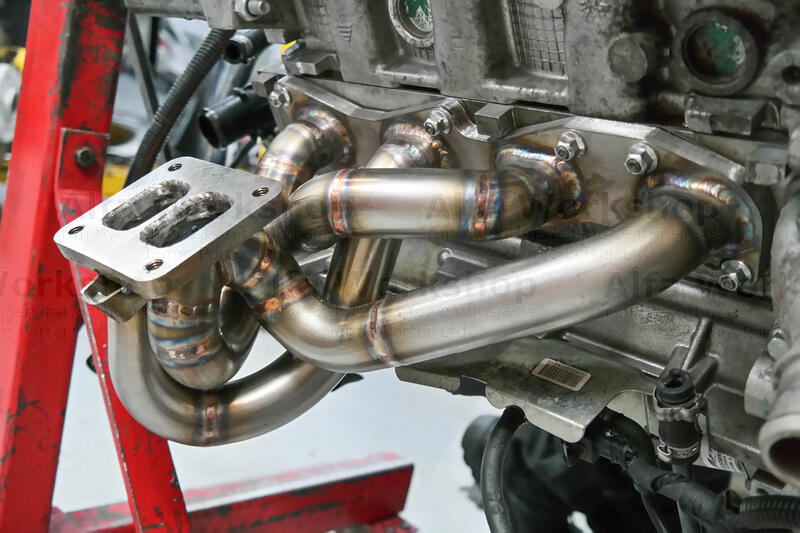

![border='1'](/images/1026-14-120.jpg) | • BESPOKE exhaust manifold • Stud nuts |

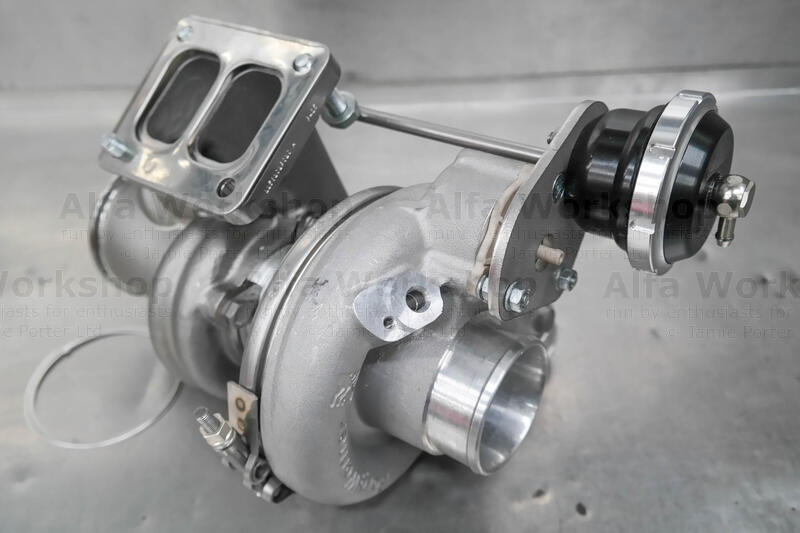

![border='1'](/images/1026-15-120.jpg) | • TWIN SCROLL turbo charger • 2-flutig gasket • Catalyst inlet gasket |

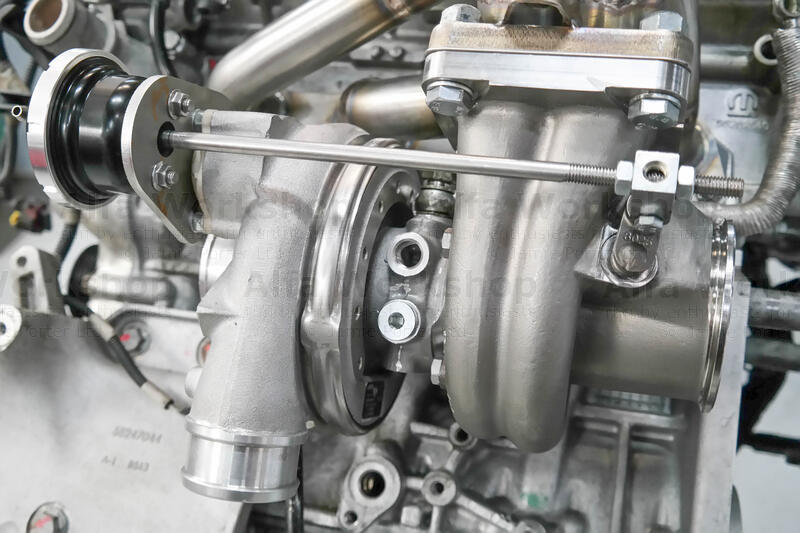

![border='1'](/images/1026-16-120.jpg) | • Wastegate actuator • Machined actuator mounting plate, rod and linkage |

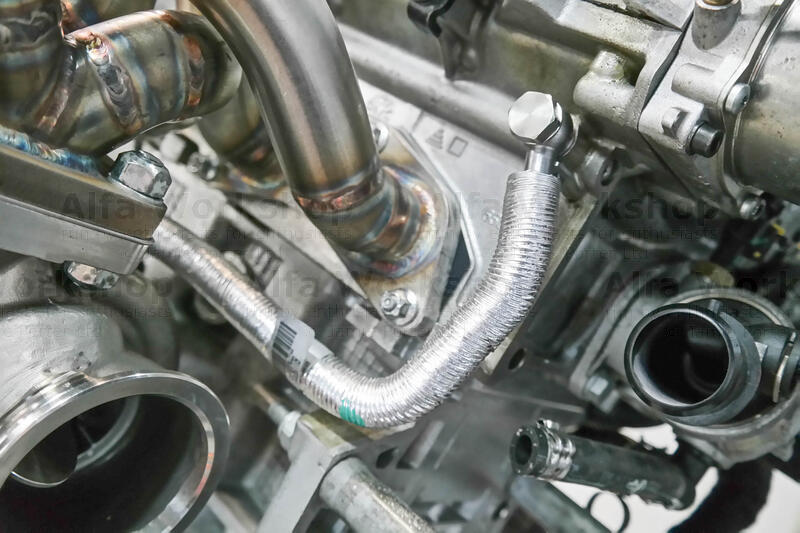

![border='1'](/images/1026-17-120.jpg) | • Turbo oil feed pipe and seals |
![border='1'](/images/1026-18-120.jpg) | • Modified turbo oil return pipe and gaskets (with heat protection) |

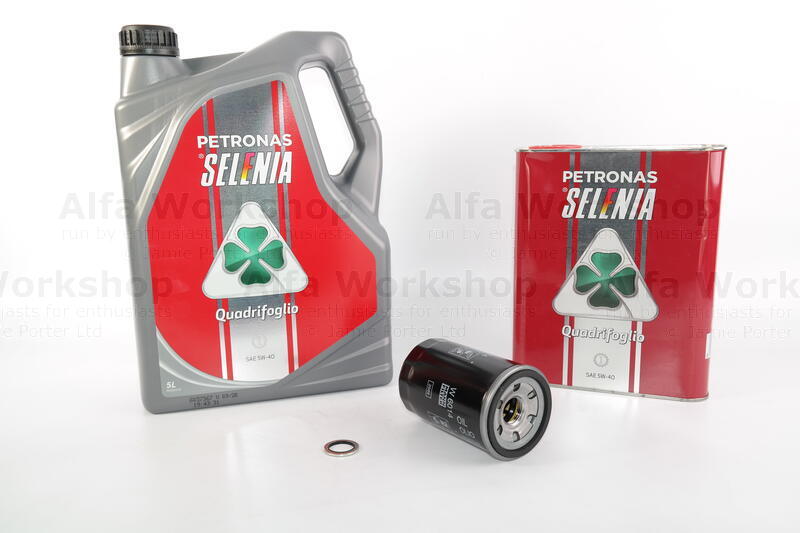

![border='1'](/images/1026-19-120.jpg) | • SELENIA engine oil • Oil filter • Sump plug washer |

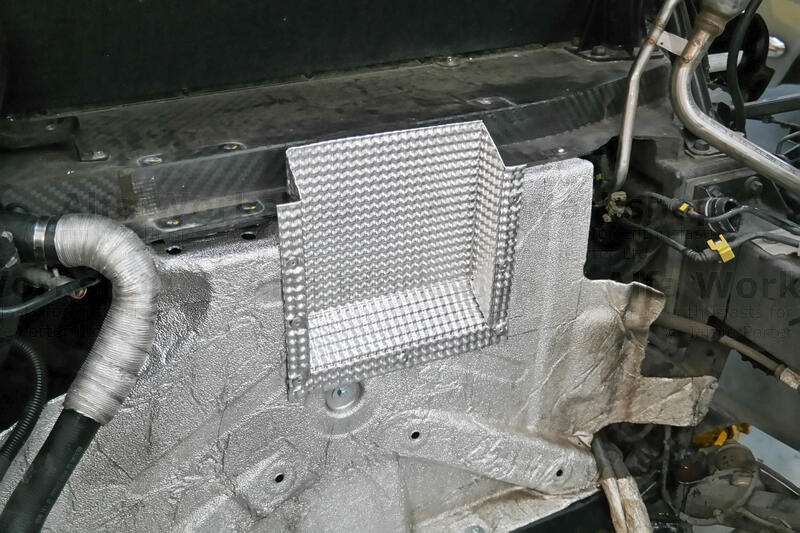

![border='1'](/images/1026-20-120.jpg) | • Machined heat shield |

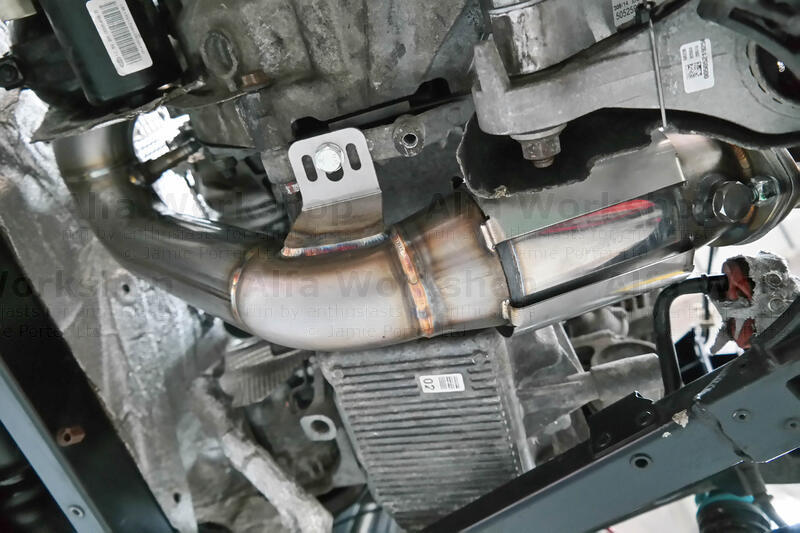

![border='1'](/images/1026-21-120.jpg) | • BESPOKE exhaust down pipe • V band exhaust clamp |

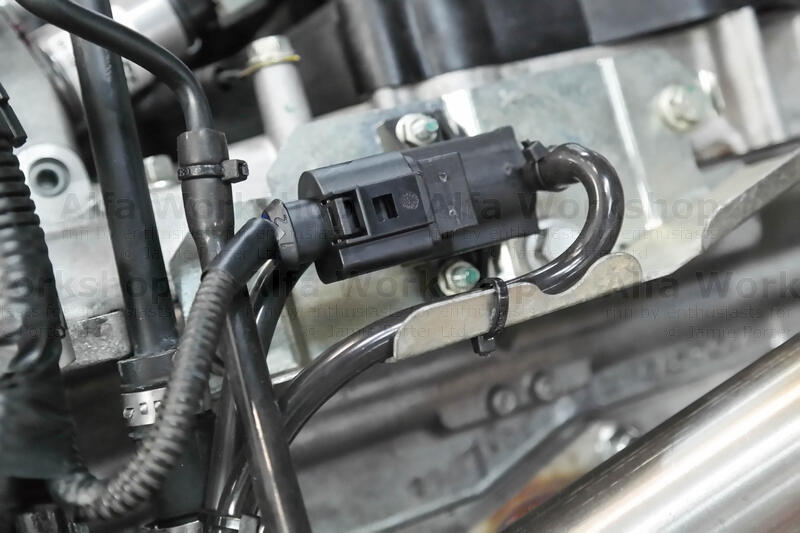

![border='1'](/images/1026-22-120.jpg) | • Boost pressure control valve |

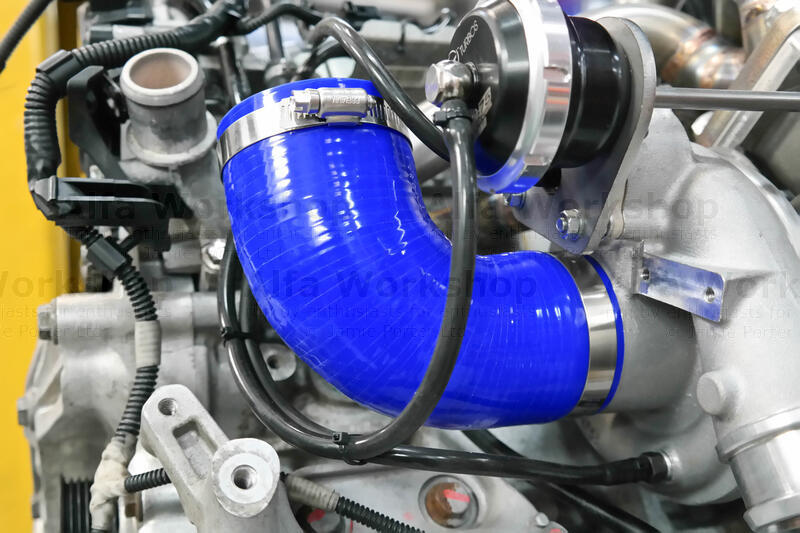

![border='1'](/images/1026-23-120.jpg) | • Turbo SILICONE intake hose |

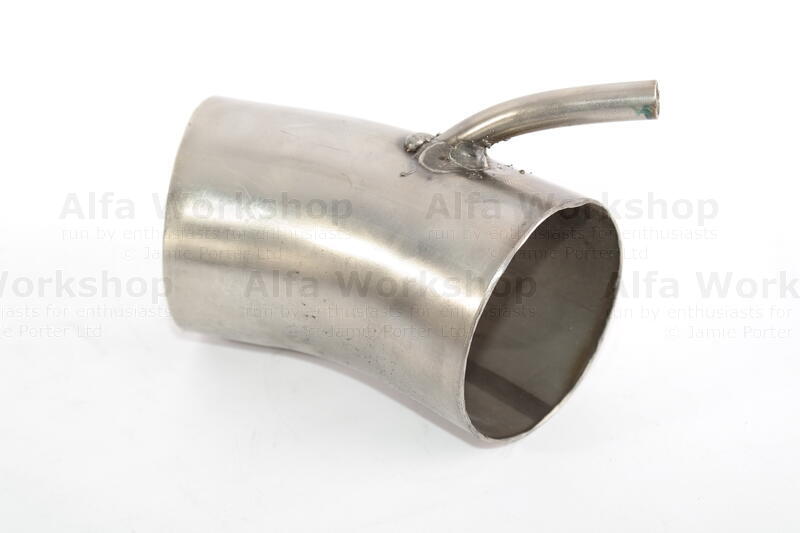

![border='1'](/images/1026-24-120.jpg) | • Machined breather elbow to turbo intake hose |

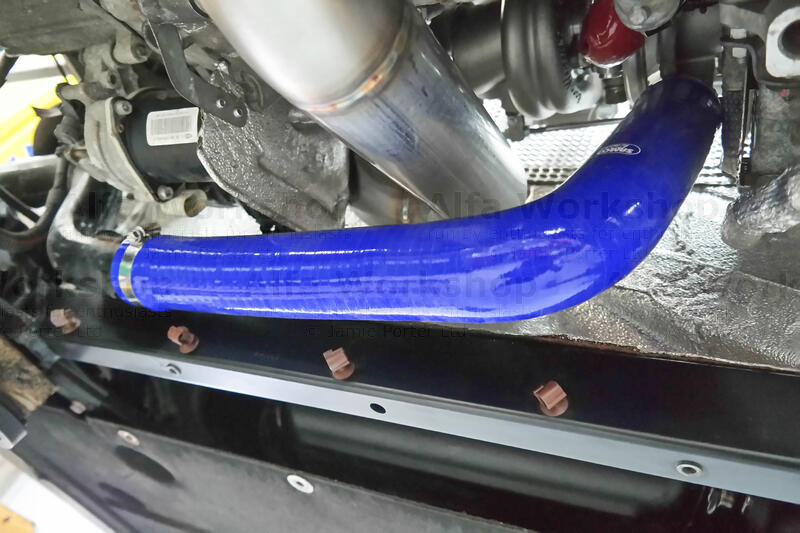

![border='1'](/images/1026-25-120.jpg) | • SILICONE hose from turbo to inter cooler |

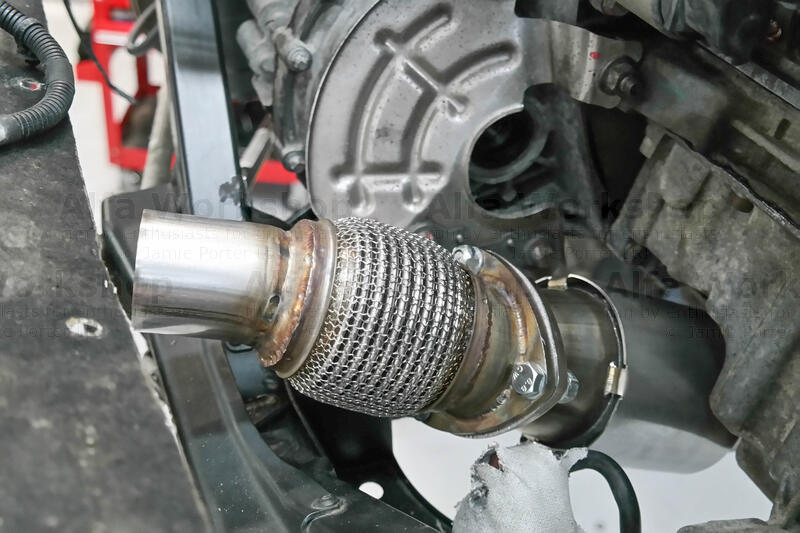

![border='1'](/images/1026-26-120.jpg) | • Exhaust flexi section and flange gasket |

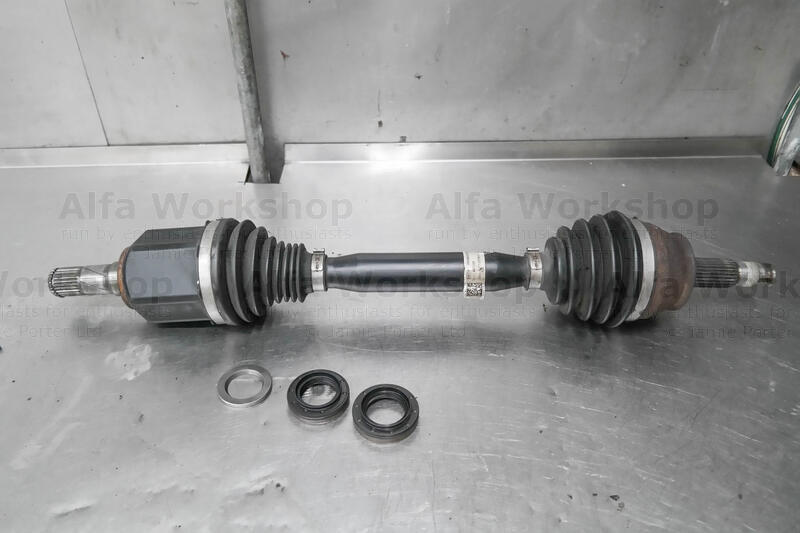

![border='1'](/images/1026-27-120.jpg) | • Drive shaft seals |

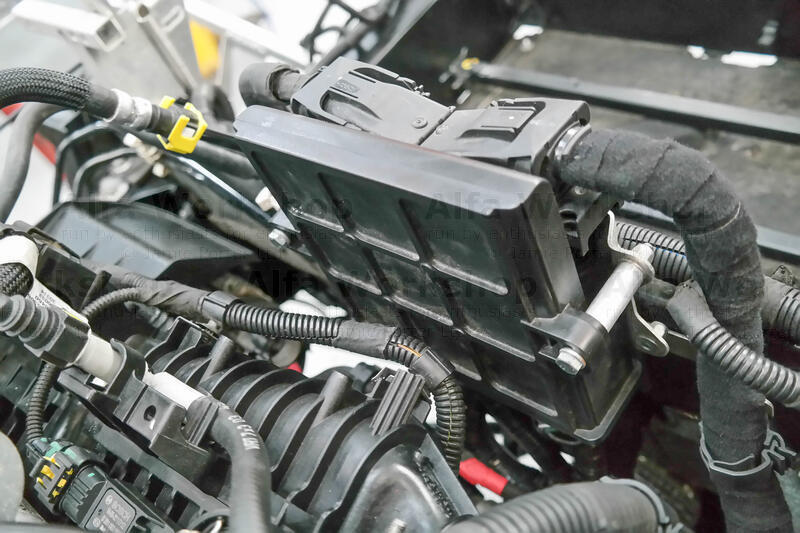

![border='1'](/images/1026-28-120.jpg) | • ALFAWORKS STAGE 2 tuned ECU |
