Replacing the rear spring pan on a GTV/Spider.

border='1'

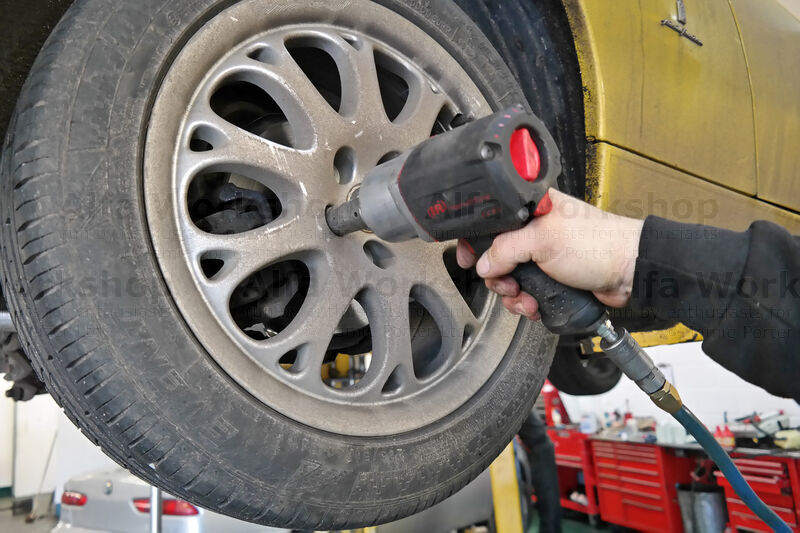

Undo the wheel bolts & remove the wheel.

border='1'

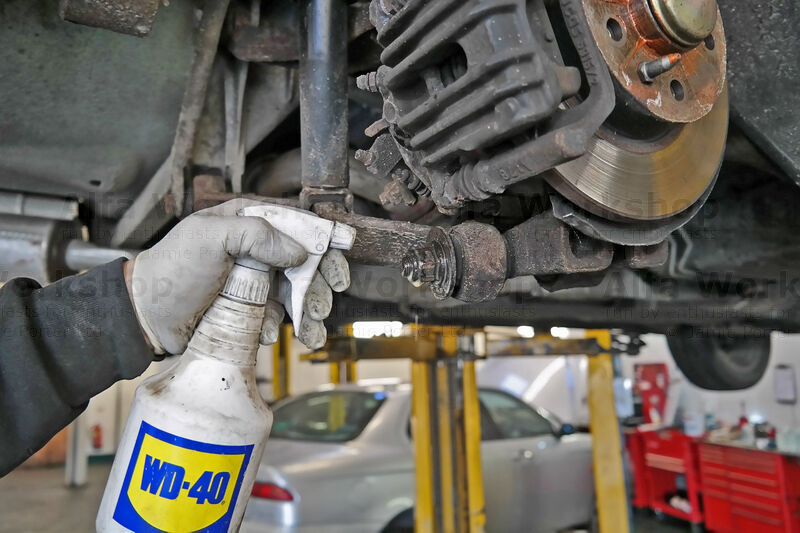

It helps to spray rusty bolts with penetrating oil.

border='1'

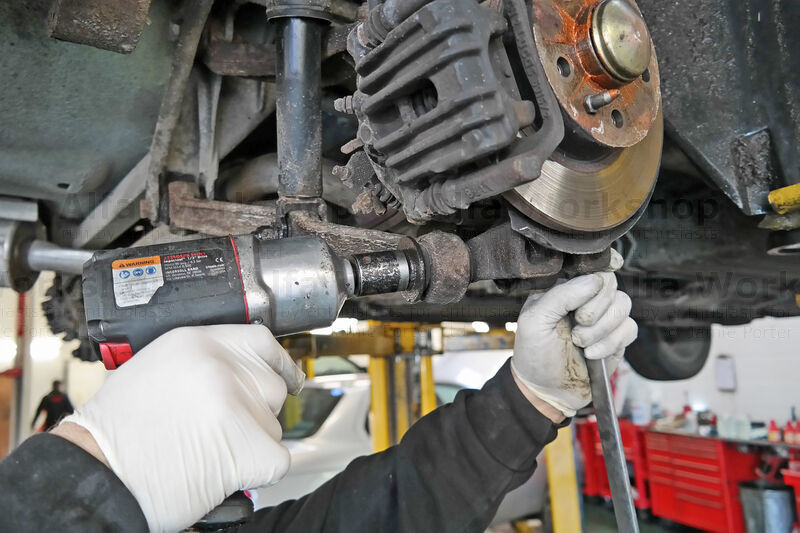

Undo the 22mm hub nut and remove the bolt that holds the spring pan and dog leg.

border='1'

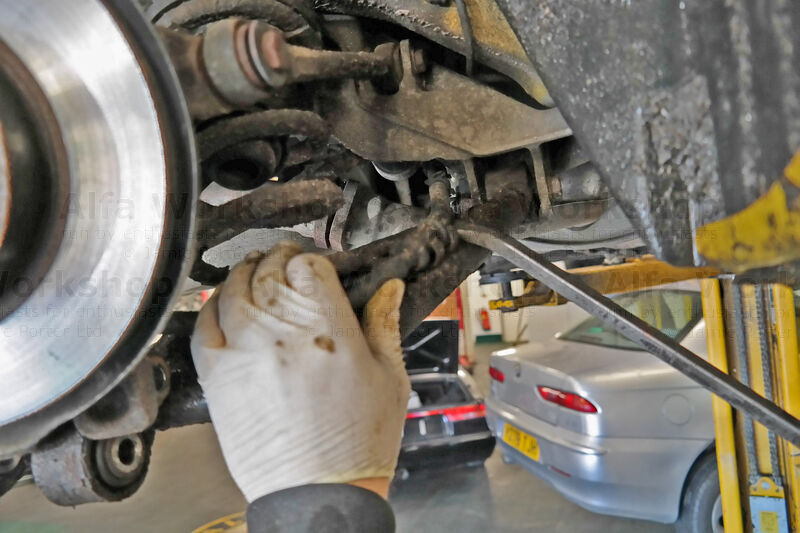

Prise the handbrake cable from its clip....

border='1'

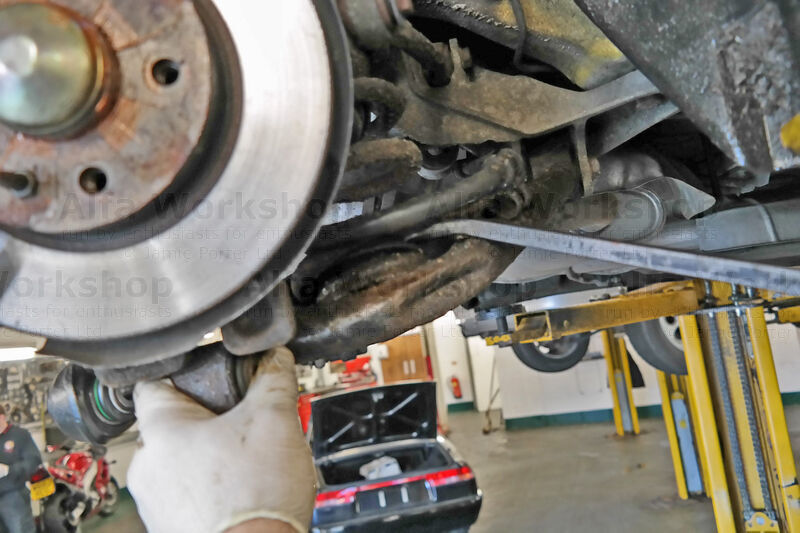

....and the spring from its pan.

border='1'

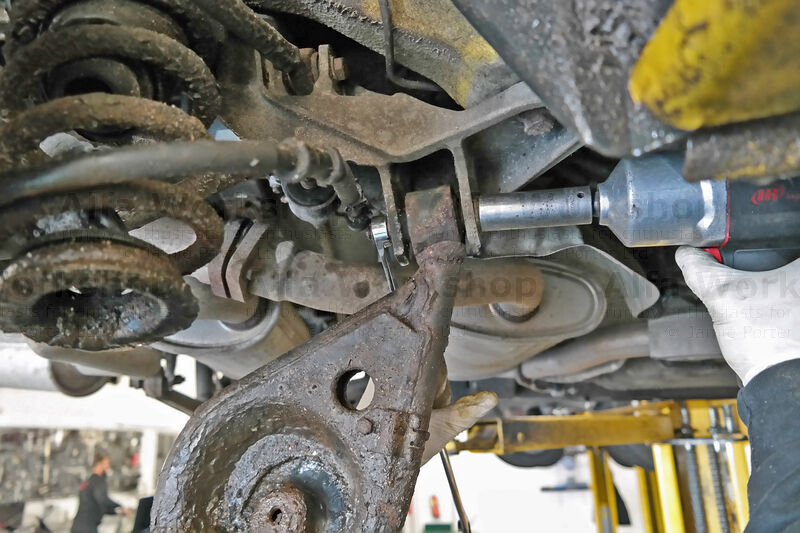

Undo the 19mm nut and remove the bolt that secures the spring pan to the sub frame mount.

border='1'

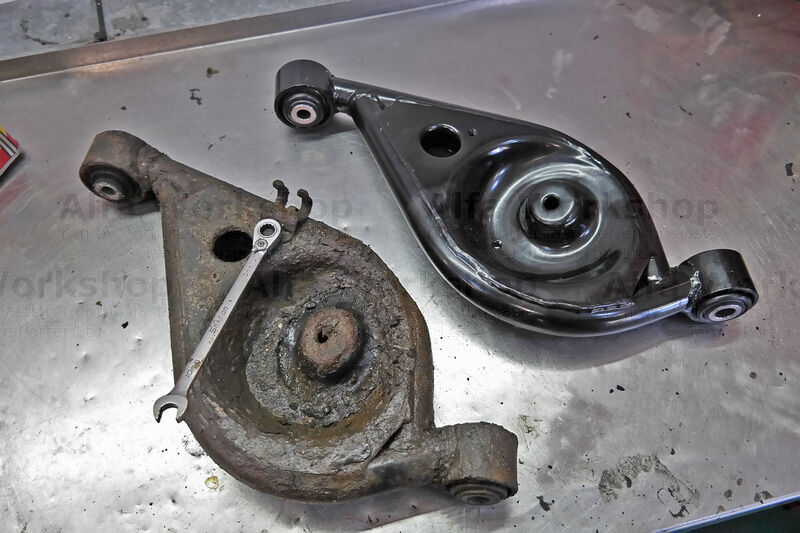

Take off the 10mm bolt that holds the handbrake cable clip and transfer the clip to the new spring pan. Now put it all back together.
