Replacing The Pollen Filter On An Alfa Giulia

The pollen filter is located in the left side of the drivers footwell on right hand drive models.

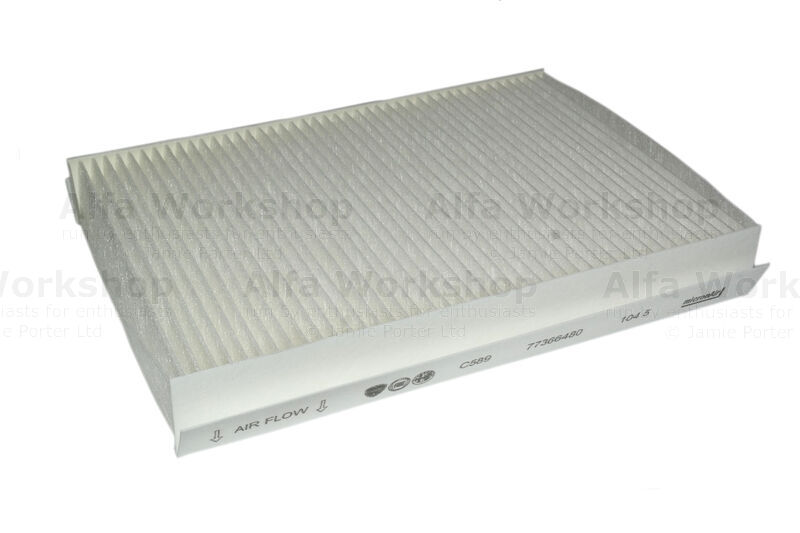

Pollen filter 77367547


Unclip the left hand side cover in the footwell.

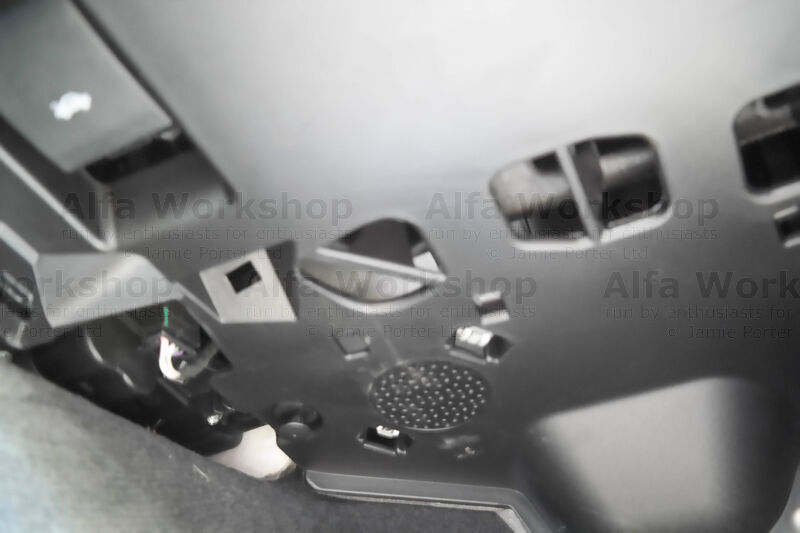

Right at the back, underneath on the left side is a push clip you need to pull out.

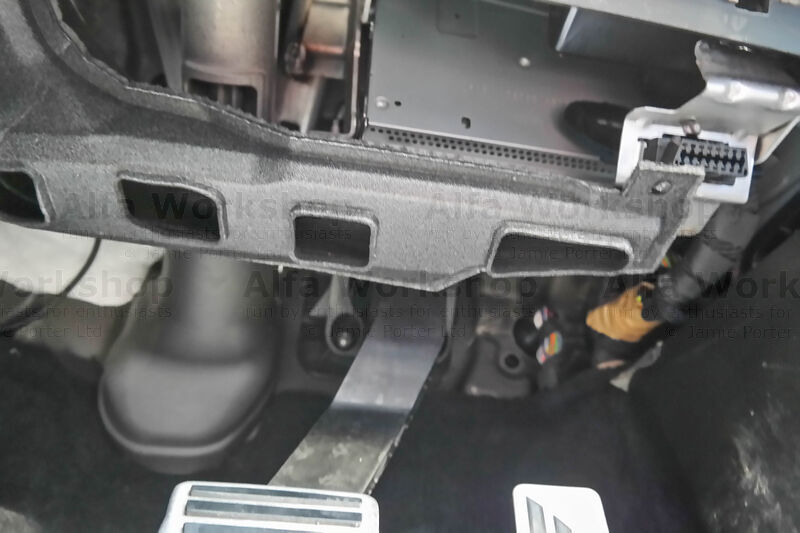

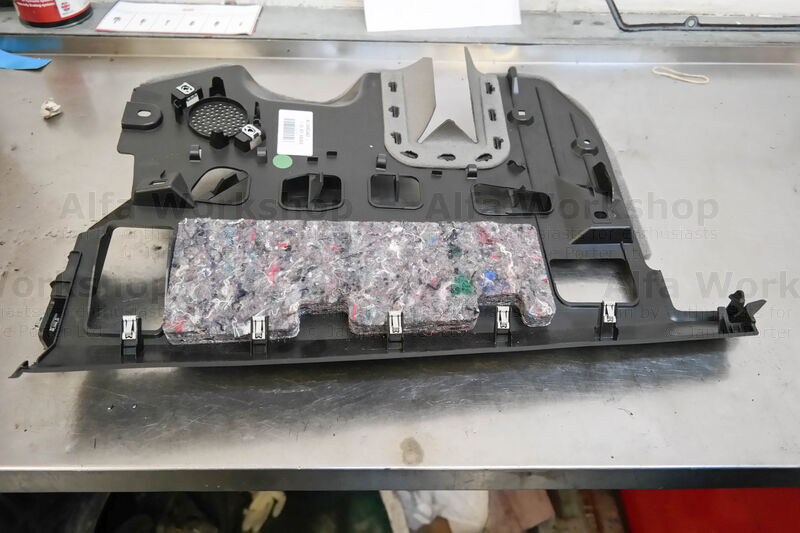

Work along the front edge pulling down the underside covering until it all comes free.

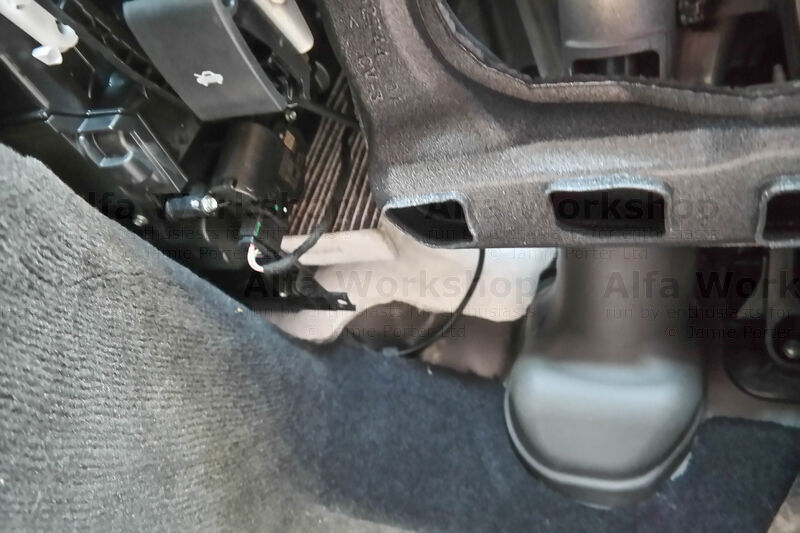

In the top left hand corner of the footwell is the pollen filter housing. Unclip the cover.


Pull the underside insulation down enough....

border='1' extract the pollen filter and replace with the new one.
