Replacing The Oil & Oil Filter On A Giulietta 2.0 JTDM.

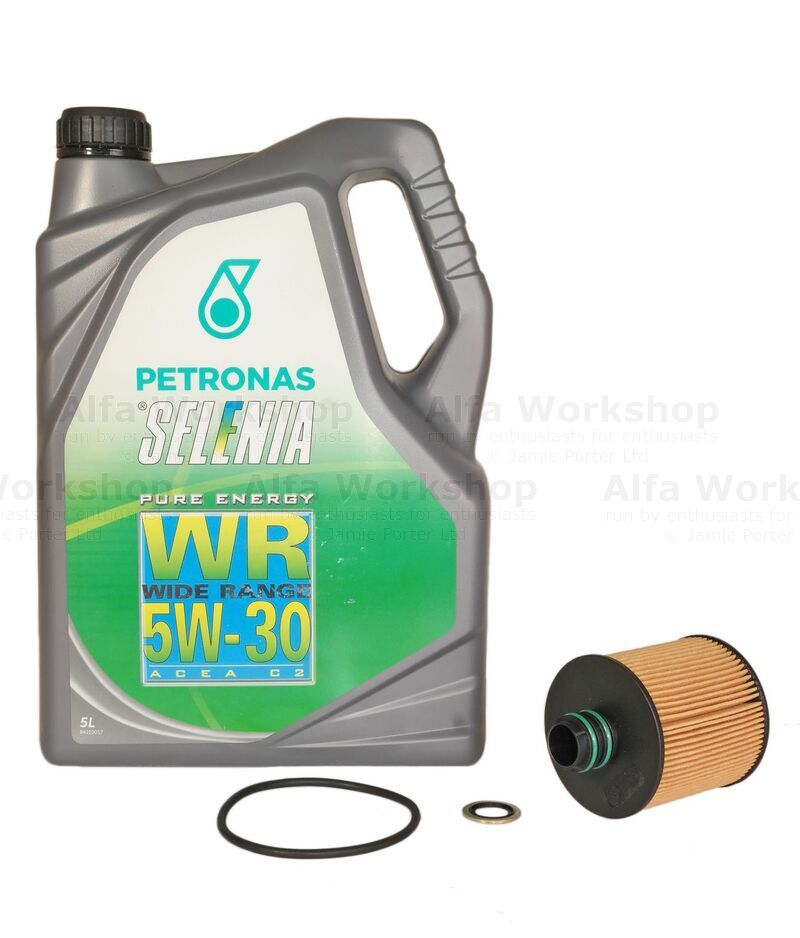

Parts required are oil filter 71754237, sump plug washer 55196309 and oil 14125015

Workshop time: 30 mins



If you would like to book your Giulietta JTDM into the workshop the price for this service is £105.00


border='1'

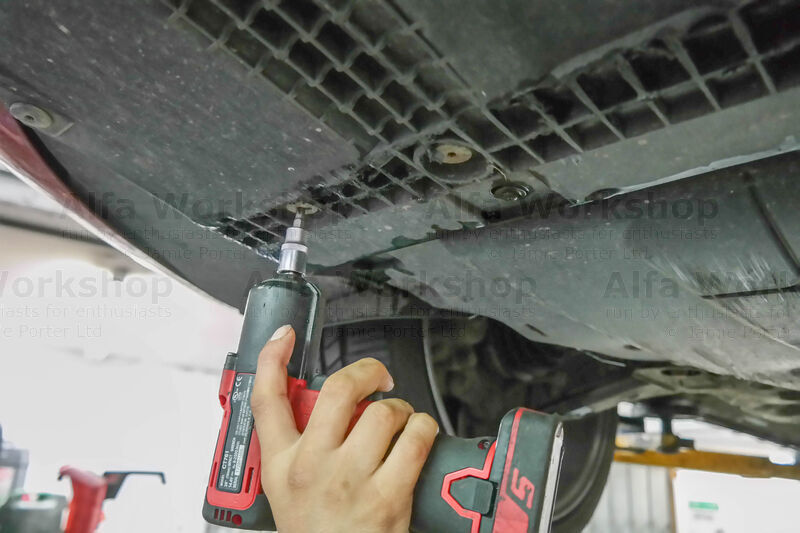

Remove all the 10mm bolts, T27 (TORX) and Phillips screws to the two part undertray.

border='1'

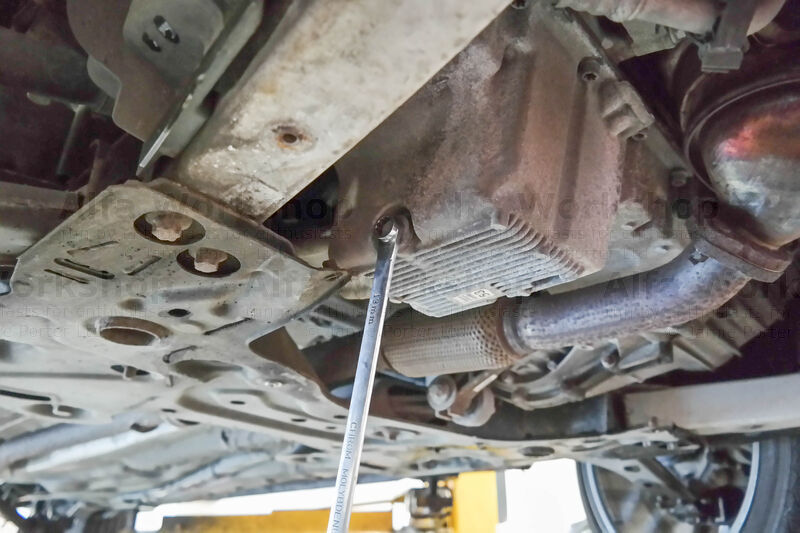

Undo the 13mm sump plug....

border='1'

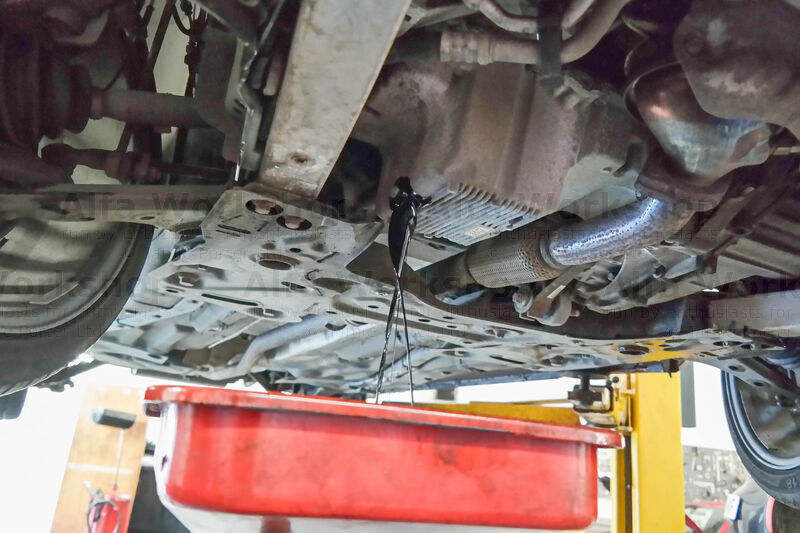

....and drain the oil into a suitable waste container.

border='1'

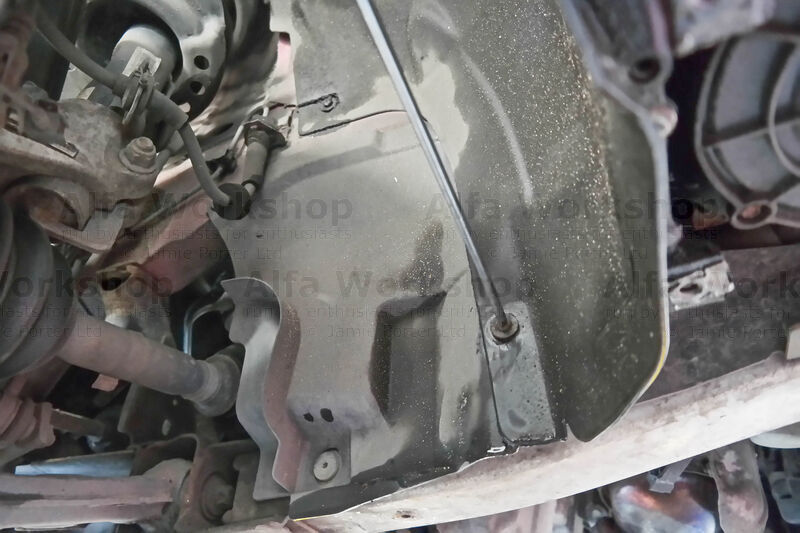

Undo the x2 T30 screws, x1 10mm nut and x1 Philips screw to the right hand wheel arch side cover.

border='1'

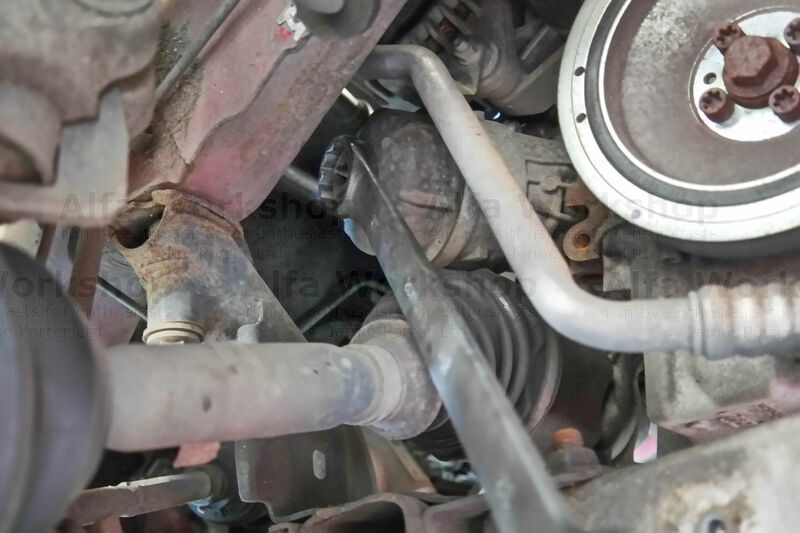

You now have access to the oil filter. Partially undo the oil filter plastic housing cap with a 32mm ring spanner so that the oil spills slowly....

border='1'

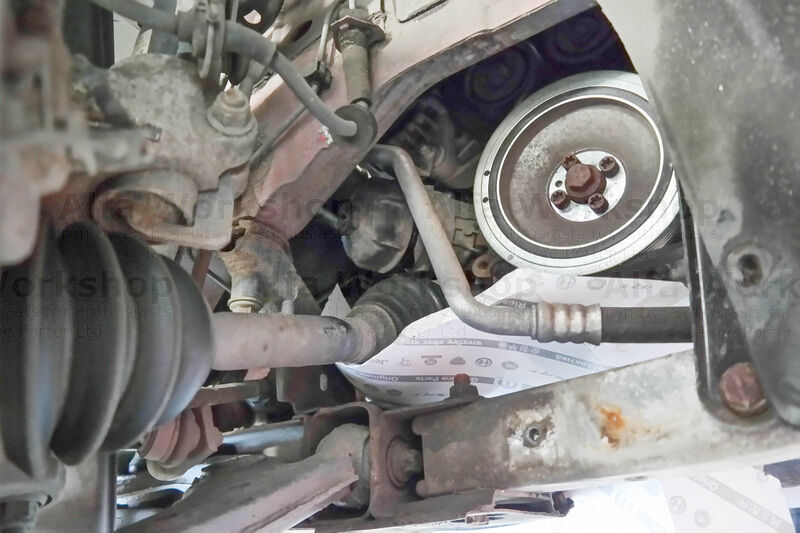

.... as it tends to hit the sub frame and make a mess so use a scrap piece of card to funnel the oil. Once it's stopped leaking remove the housing and filter.

border='1'

Replace the sump plug using a new washer.

border='1'

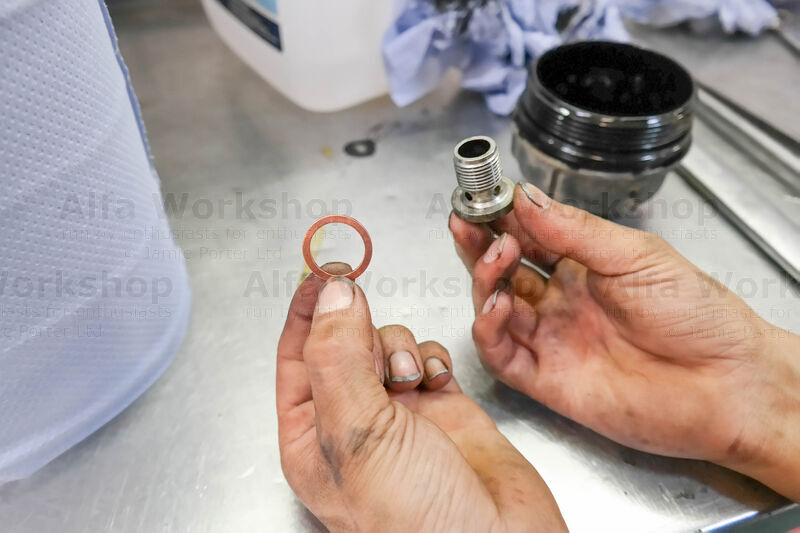

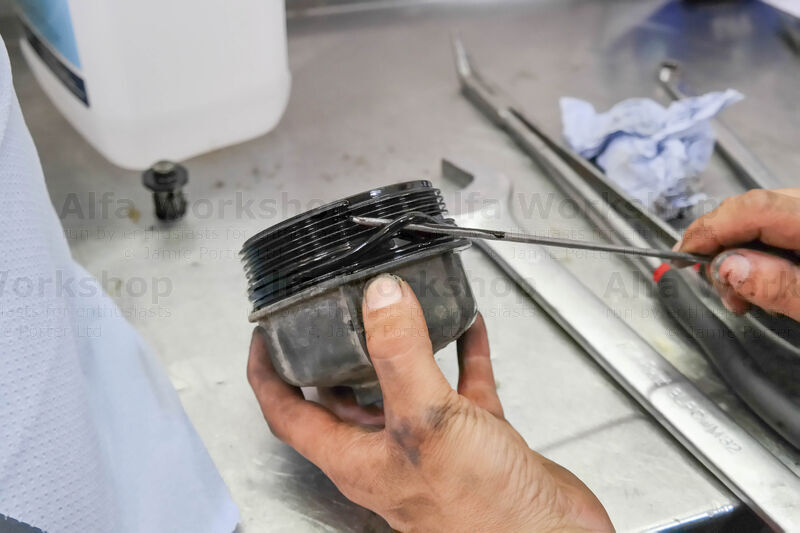

Replace the old oil seal on the housing cap....

border='1'

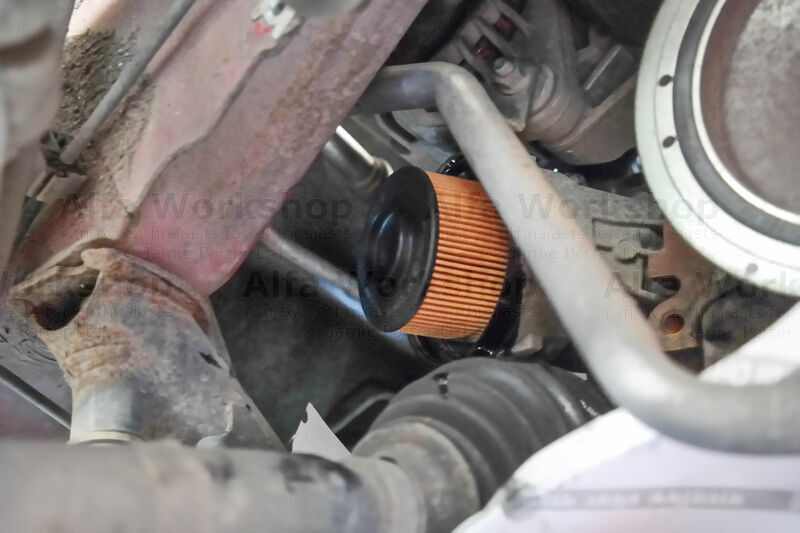

....push the new oil filter into the housing and screw on the housing cap.

border='1'

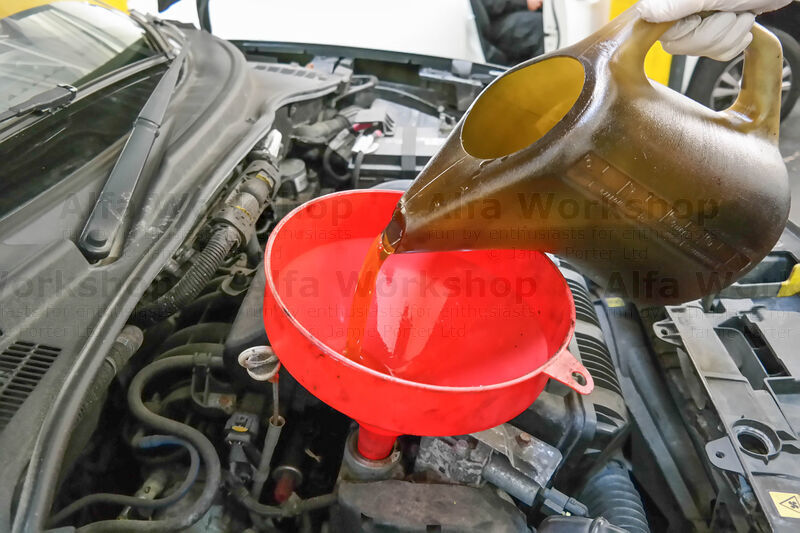

Fill up with 4.5 litres of 'Selenia Pure Energy Wide Range Oil 5W/30'.

border='1'

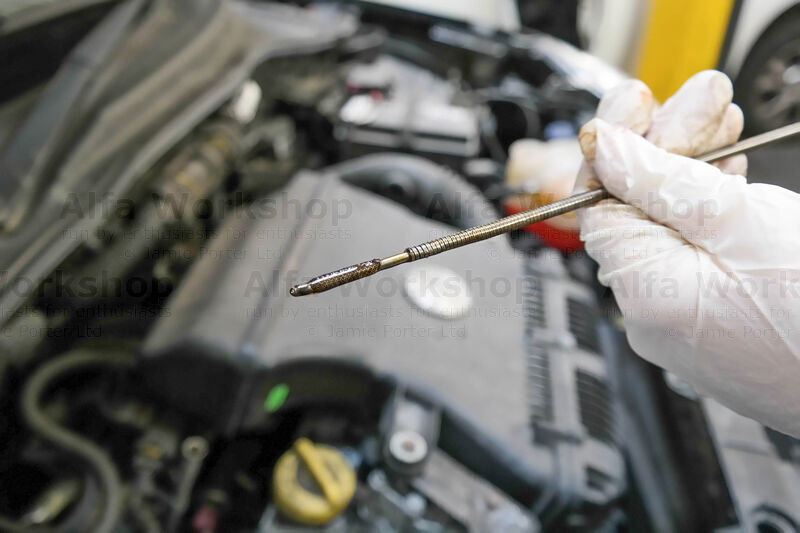

Start the engine briefly to circulate the oil then check the level on the dip stick and top up if required.

Related Links: Fuel filter replacement | Service schedule
