Replacing The Front Wiper Motor And Linkage On An Alfa MiTo

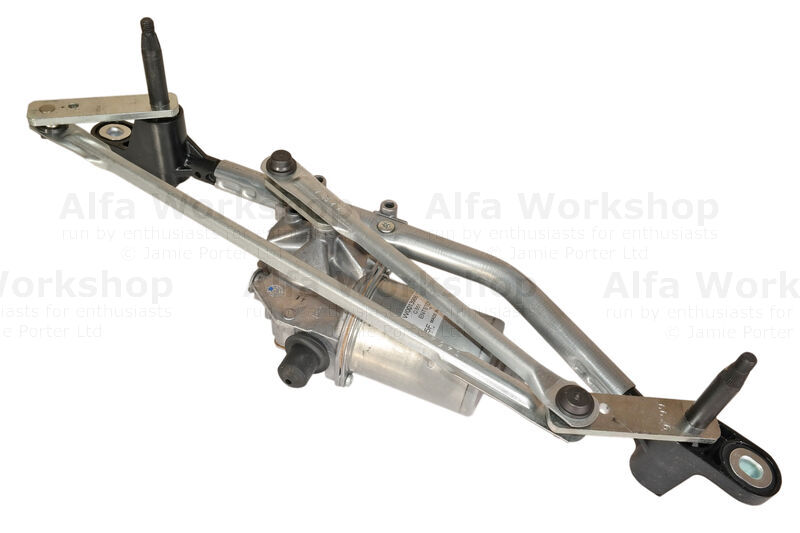

The current wiper motor with linkage is part number 50545278.

If you need new wiper blades try 50539273 and 50539275

Workshop time: 50 mins





If you would like to book your Mito into the workshop the price of this repair is £310.50


border='1'

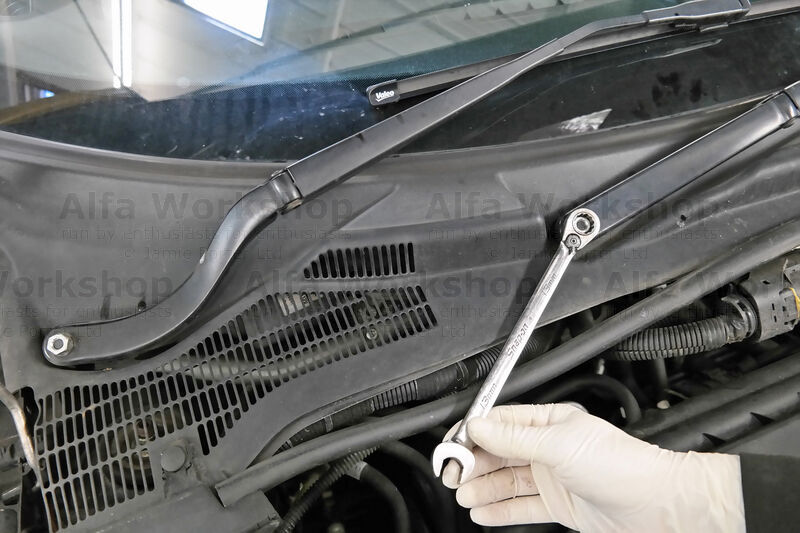

Raise the bonnet, take off the the wiper nut covers and undo the nuts with a 13mm spanner.

border='1'

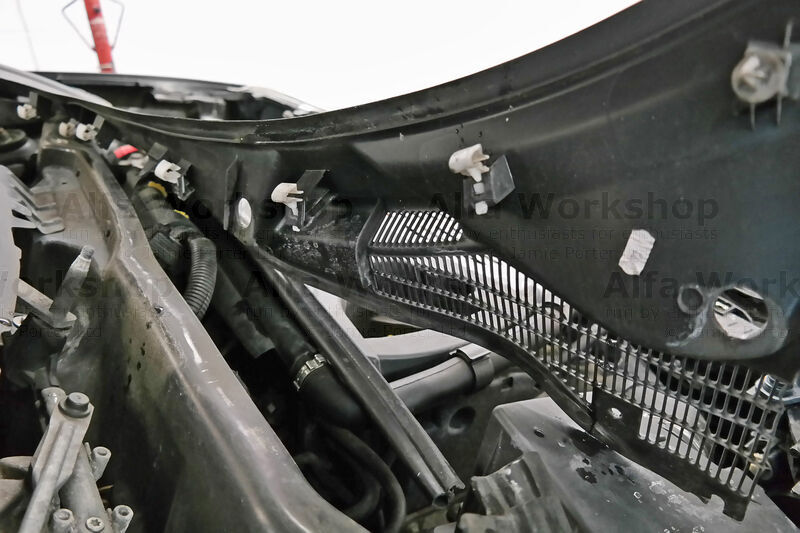

Remove the skuttle front trim and pop off the foam pads.

border='1'

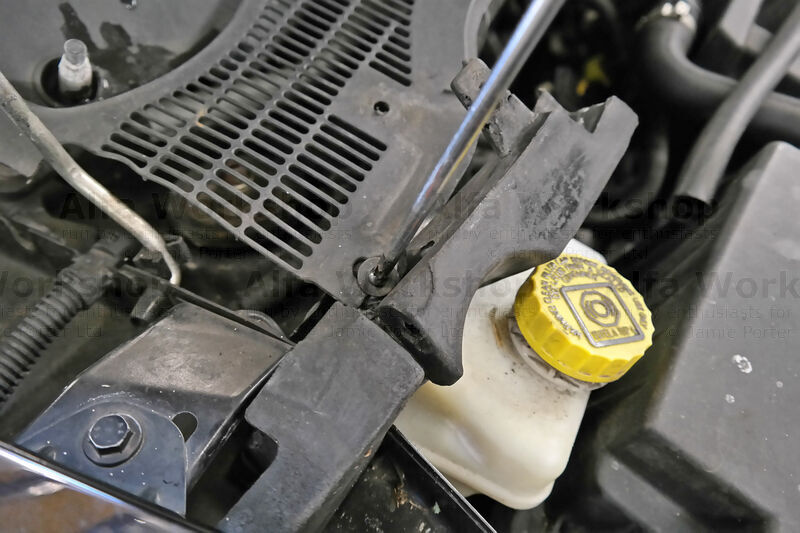

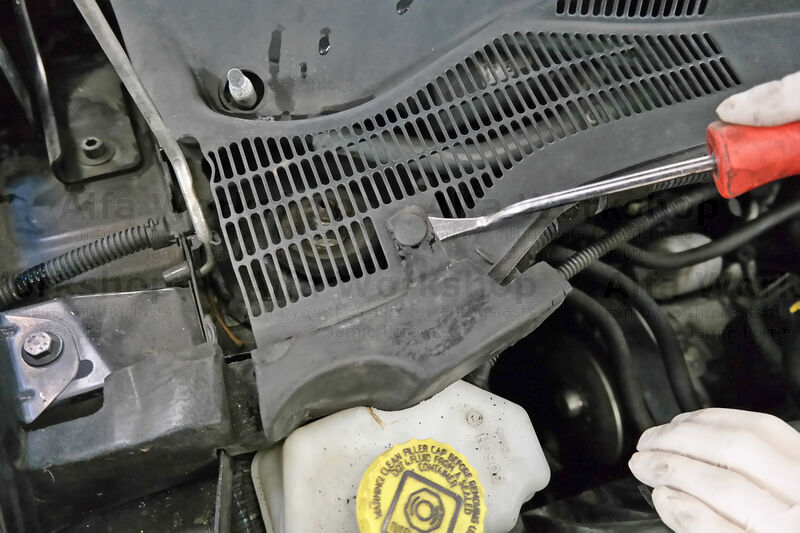

Unscrew the three skuttle screws.

border='1'

Release the two skuttle push fixings near either end (underneath) by lifting the front edge up then pull the skuttle out.

border='1'

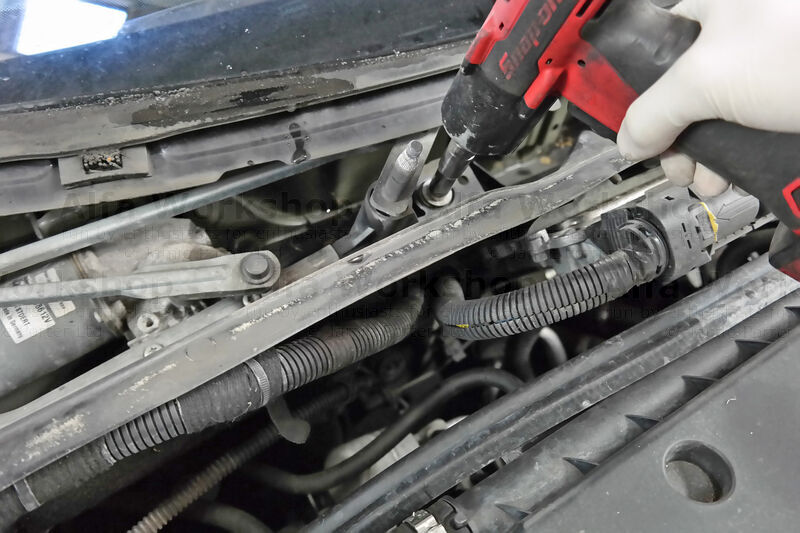

Undo the two 10mm securing bolts on the wiper linkage.

border='1'

Unclip the power conector and fully remove the wiper linkage.

border='1'

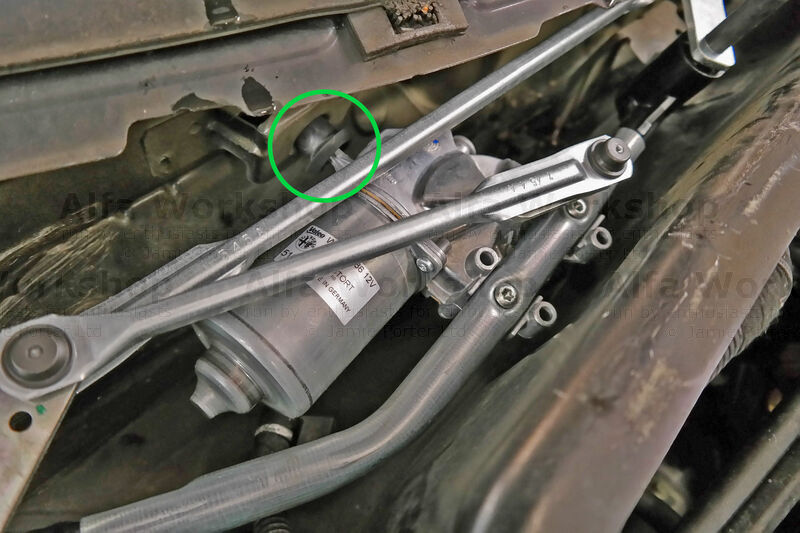

Replace the new unit, first plug in the connector then locate the lug on the motor into the large rubber grommet. Now put it all back together.

Related Links: Front drop link removal | Broken front spring and top mount replacement
