Changing The Oil & Oil Filter On A MiTo 0.9 Turbo (105hp)

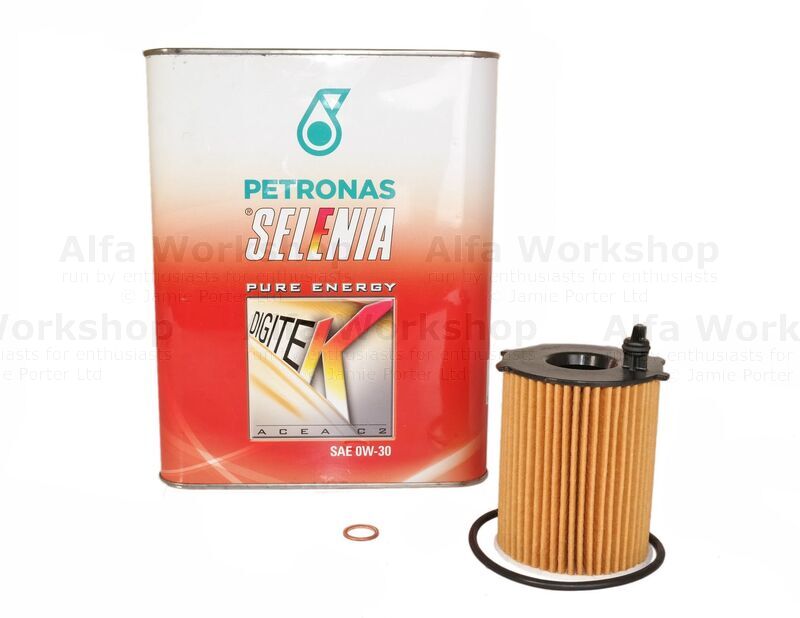

EURO 5 models (85hp) use Selenia STAR Pure Energy oil 5W/40 14133701. For the 105hp model the oil is Selenia Digitek Pure Energy 0W-30 13893701, oil filter 55224598 and sump plug washer 10261060













If you would like to book yourself in, the price of this service in our workshop is £106.10

:alt

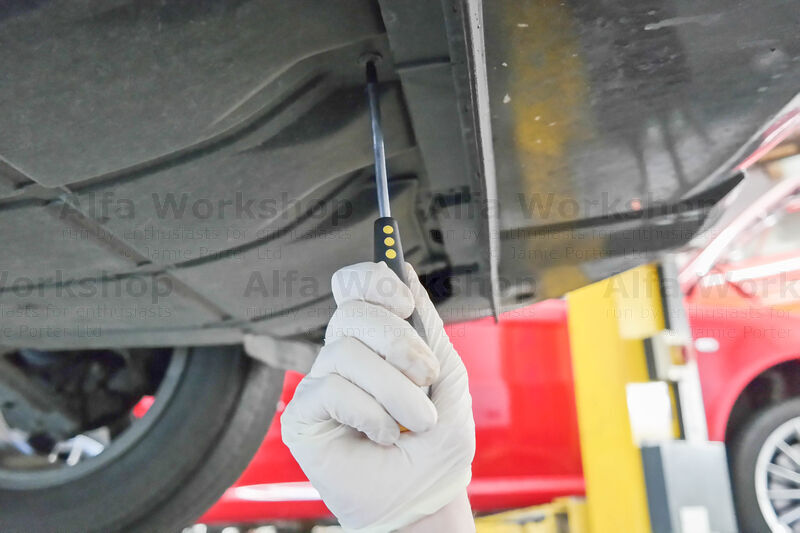

Remove the x11 Phillips screws to the under tray.

:alt

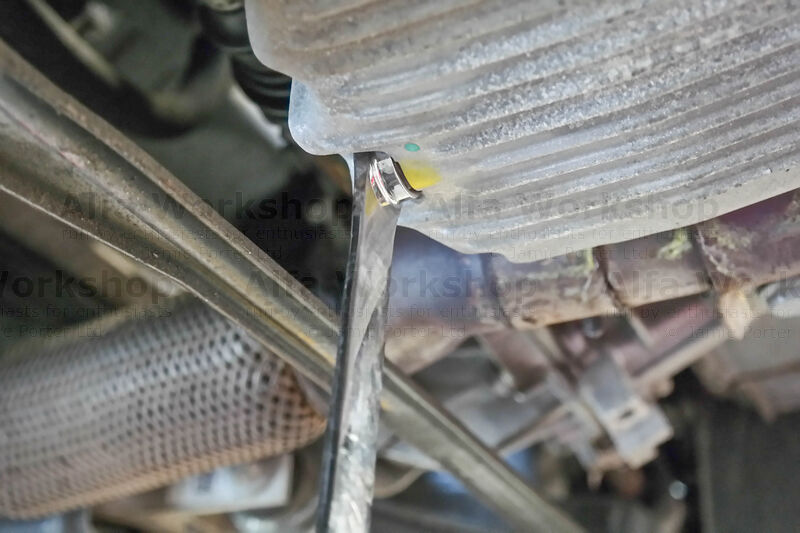

Undo the 17mm sump plug.

:alt

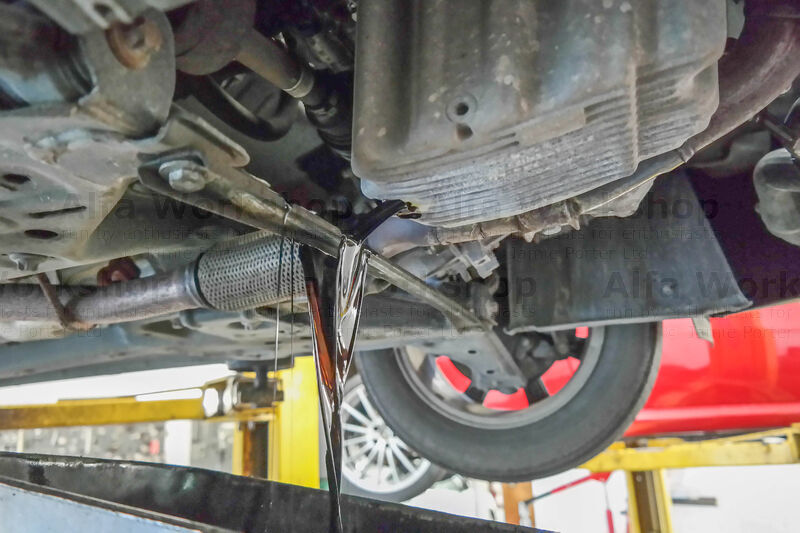

Drain the oil into a suitable waste container (take care as the oil will spray when it hits the bar).

:alt

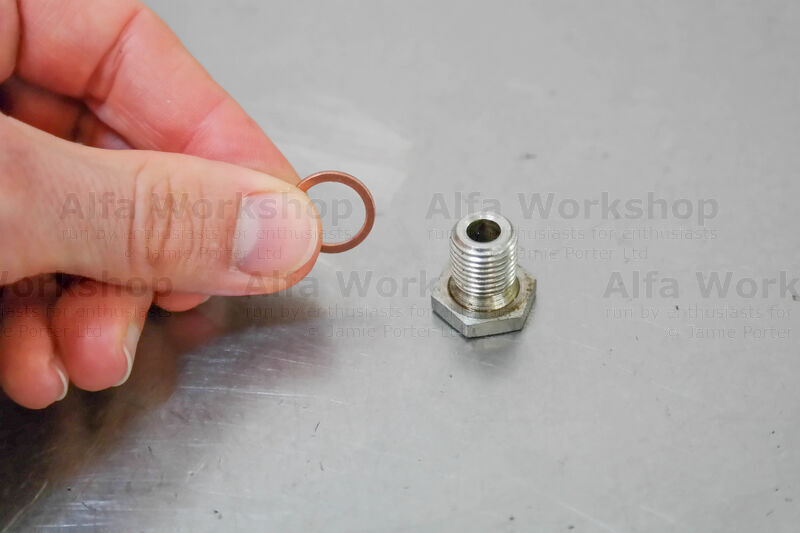

Replace the sump plug using a new sump plug washer.

:alt

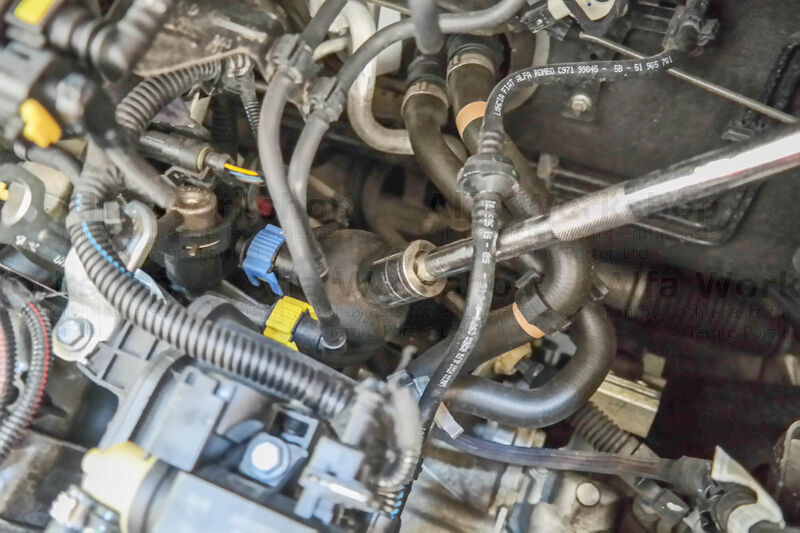

Undo the oil filter housing with a 24mm socket.

:alt

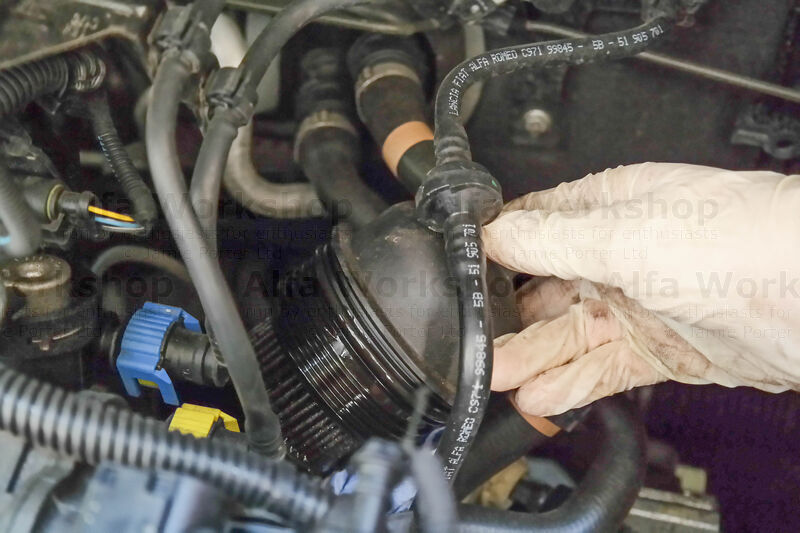

Remove the housing and filter.

:alt

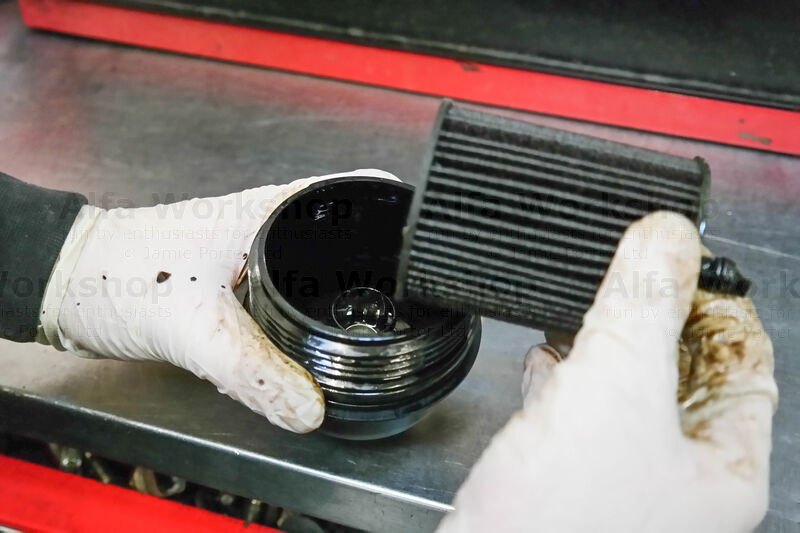

Pull out the old oil filter.

:alt

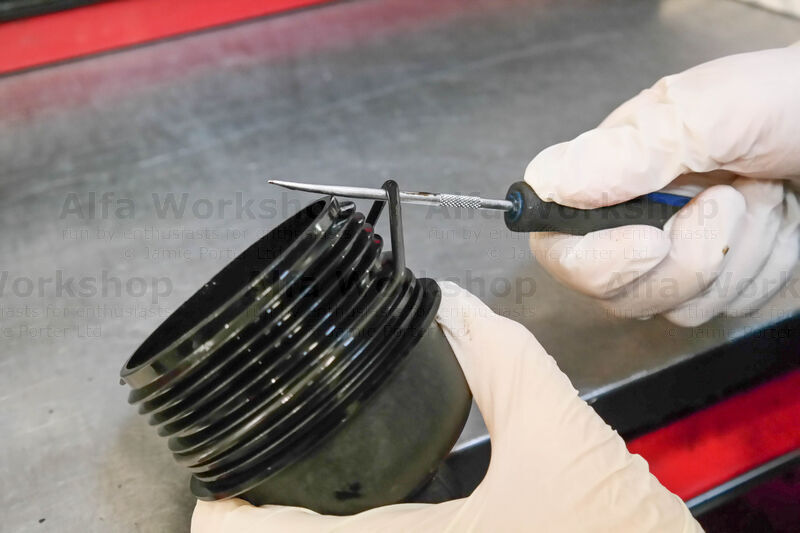

Replace the oil seal...

:alt

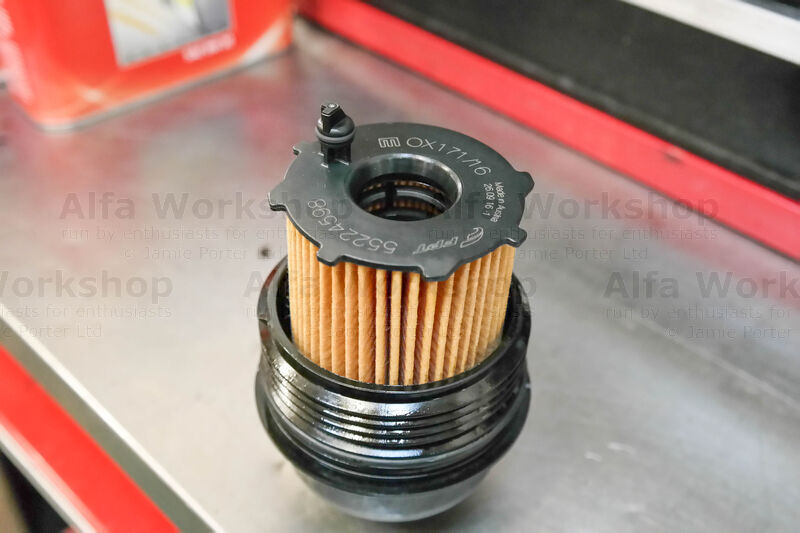

....and the filter. You'll notice that there is a lug on top of the filter with a small seal...

:alt

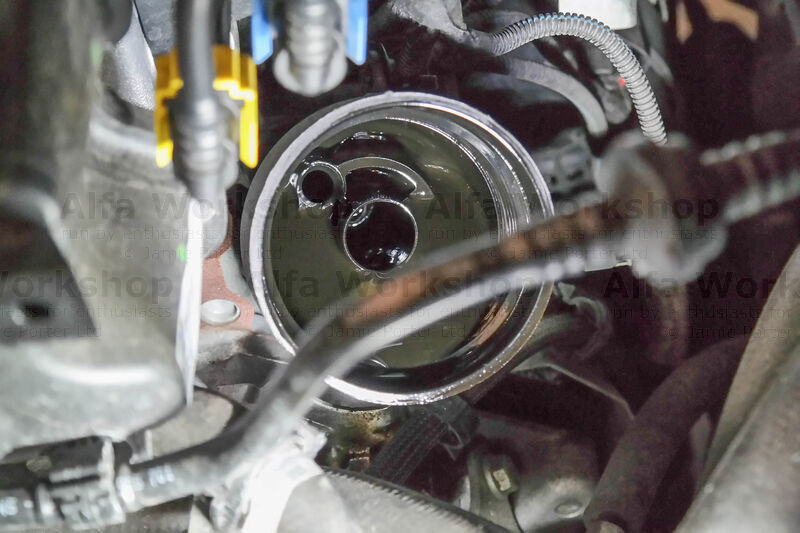

...which locates in the recess of the housing before you screw it back in.

:alt

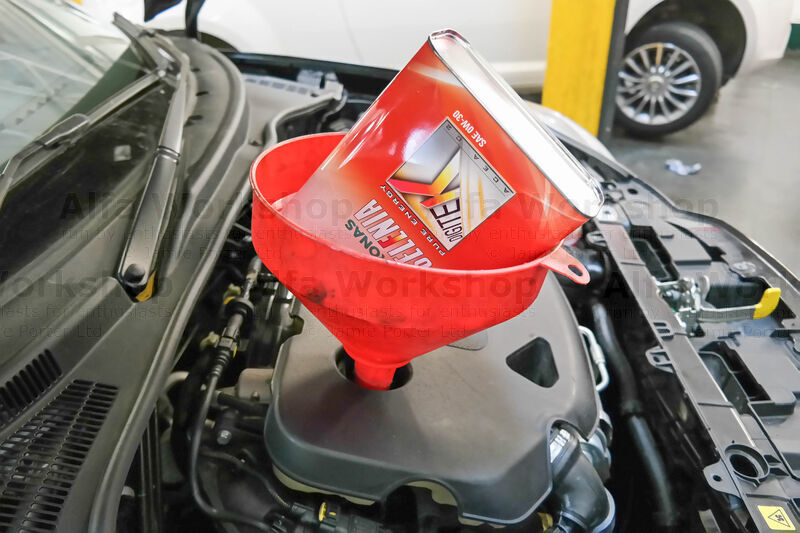

Undo the oil filler cap and fill up with 3.3 litres of Selenia Digitek Pure Energy 0W-30 engine oil.

:alt

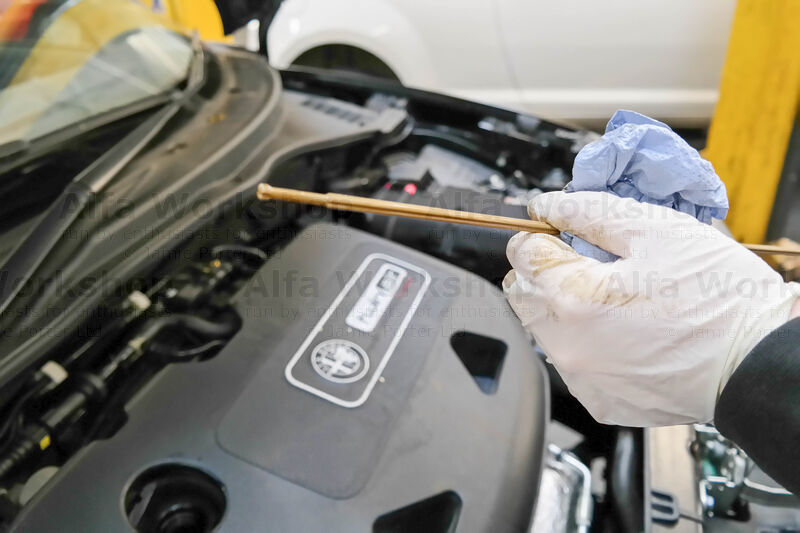

Put the filler cap back on, briefly start the engine then check the level on the dipstick and top up if required.
