Dismantling The Front Bumper From A MiTo 1.4 Multiair Turbo






You need to remove the bumper if you're going to replace the radiator, headlight or if you just need to gain access to another part


border='1'

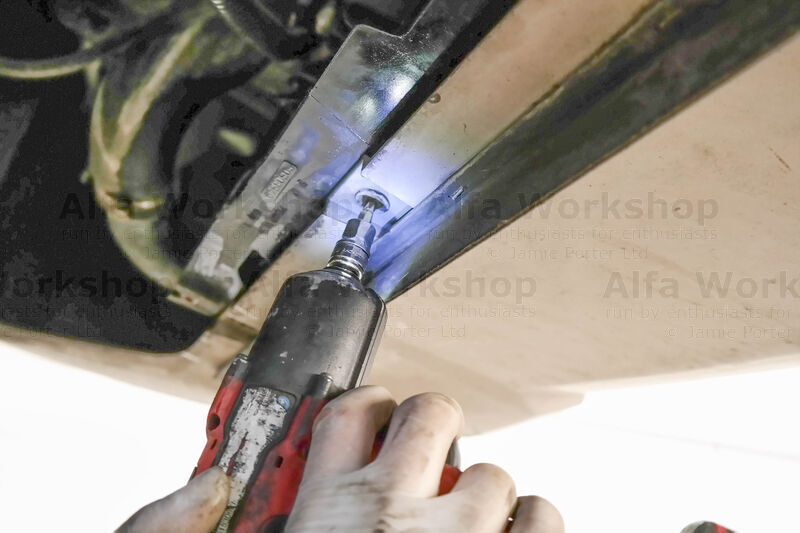

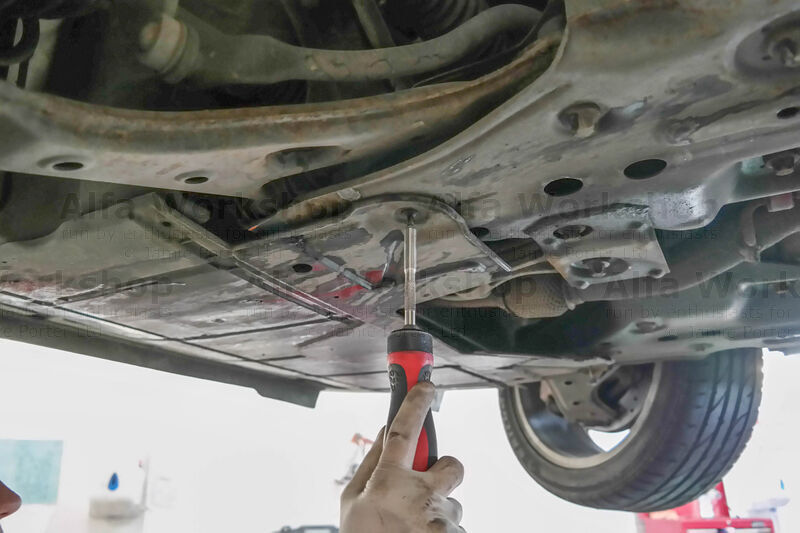

Undo the nine undertray screws,
border='1'

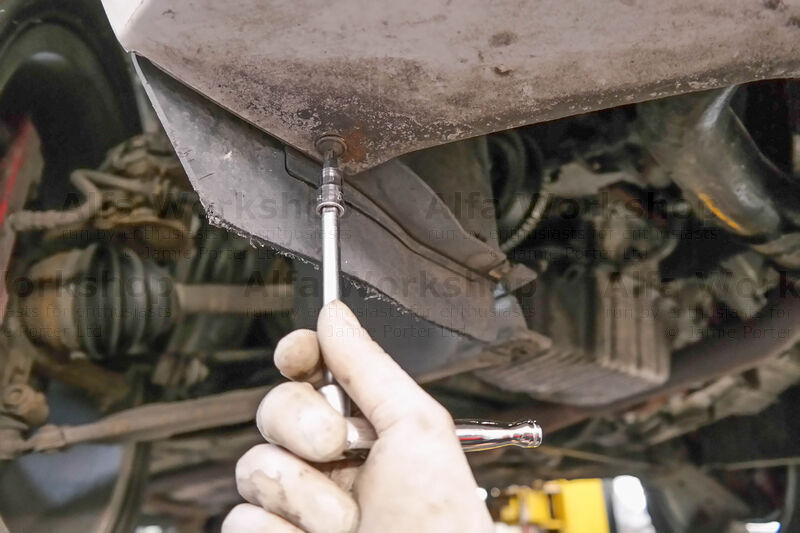

and the four T30 (Torx) screws underneath the front bumper.
border='1'

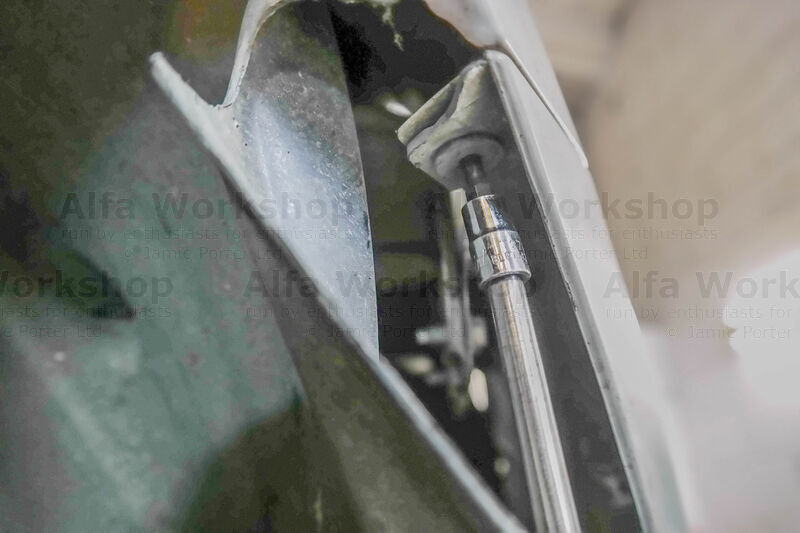

Undo the screws at either end,
border='1'

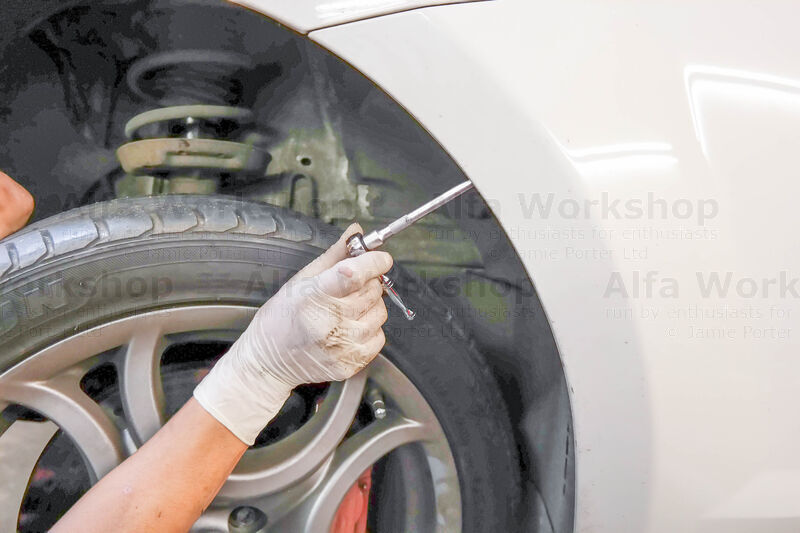

the three screws up the inside of the wheel arch lining,
border='1'

and the the top T30 screw to the front wing on both sides of the bumper.
border='1'

Pull both corners off of the clips.
border='1'

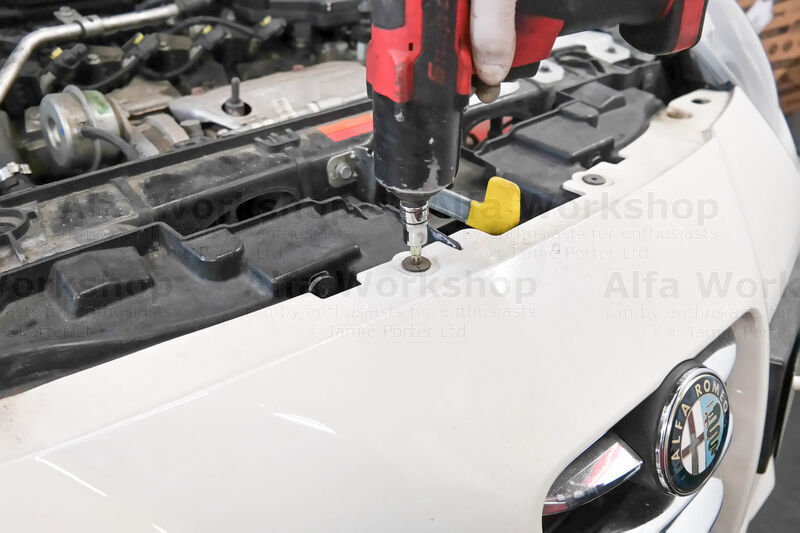

Undo the four T30 screws along the top of the bumper.

border='1'

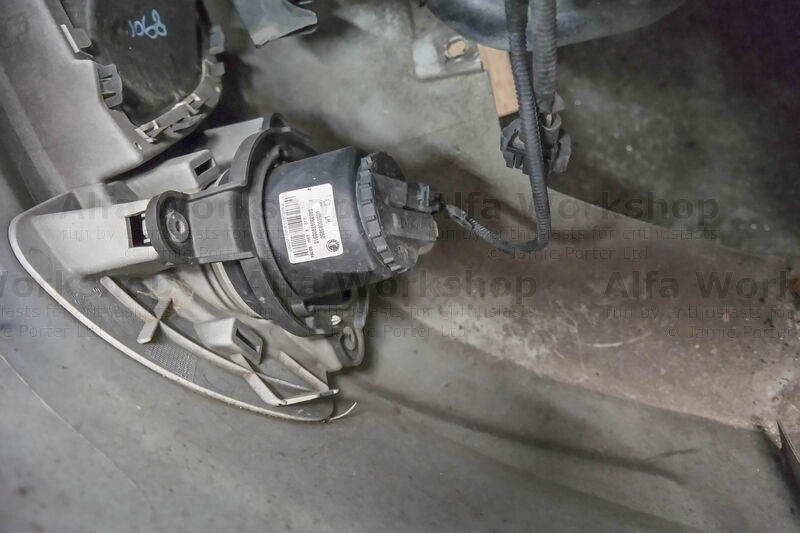

Now support the bumper as you pull it forward to unclip the fog light connectors and it's free.
border='1'

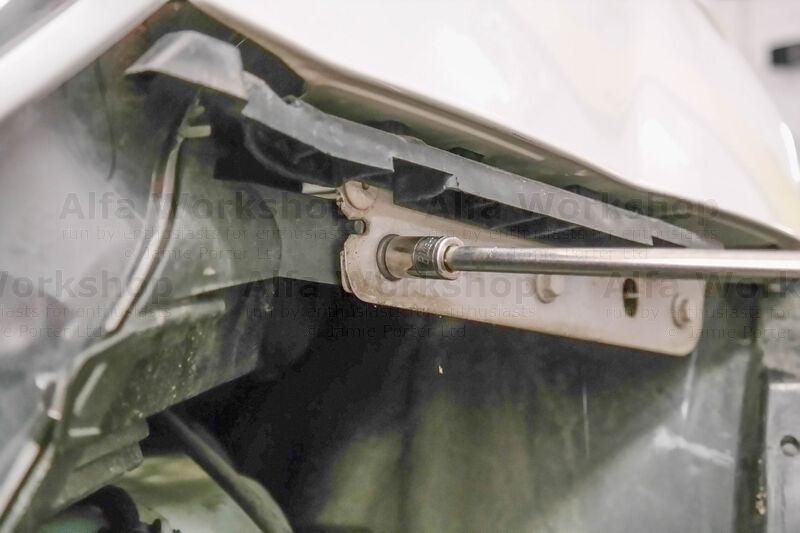

To remove a headlight undo the 10mm bolt on the side wing,
border='1'

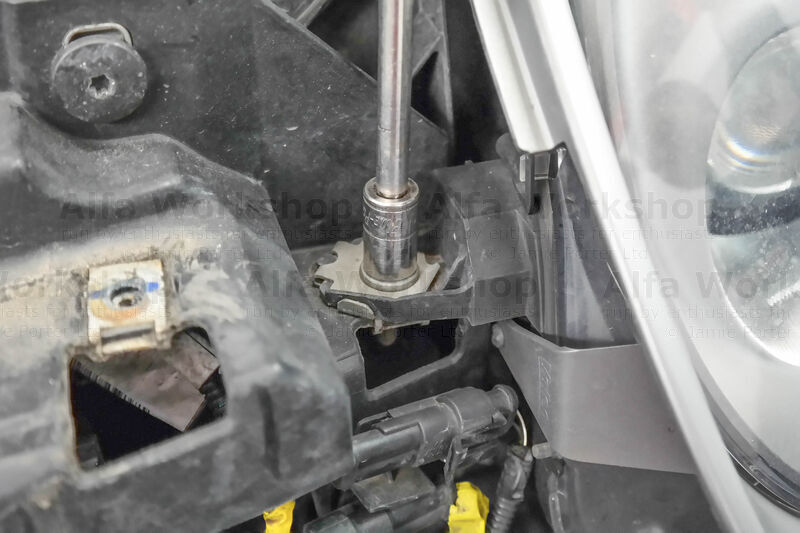

the one on the bumper support,
border='1'

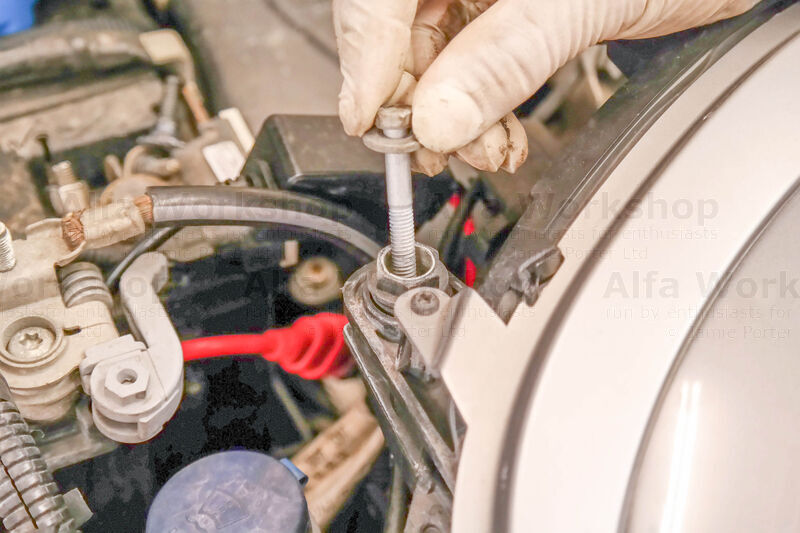

and the top one.
border='1'

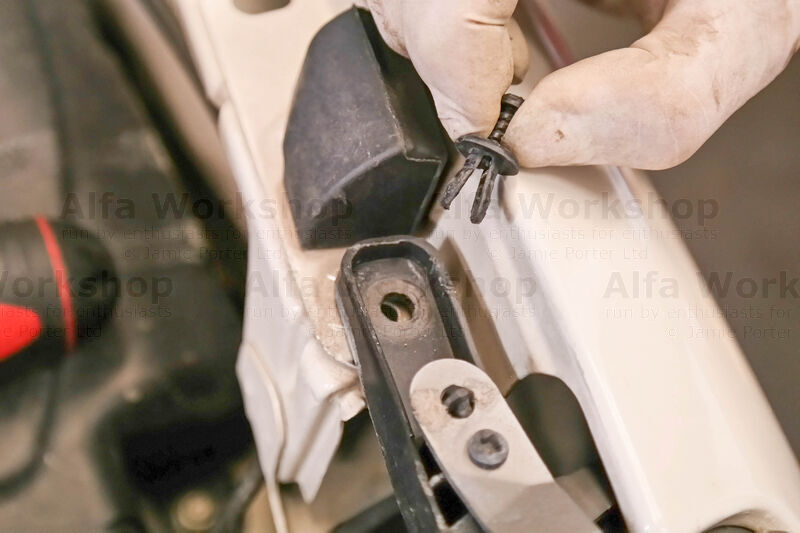

Pull out the retaining plastic pin,
border='1'

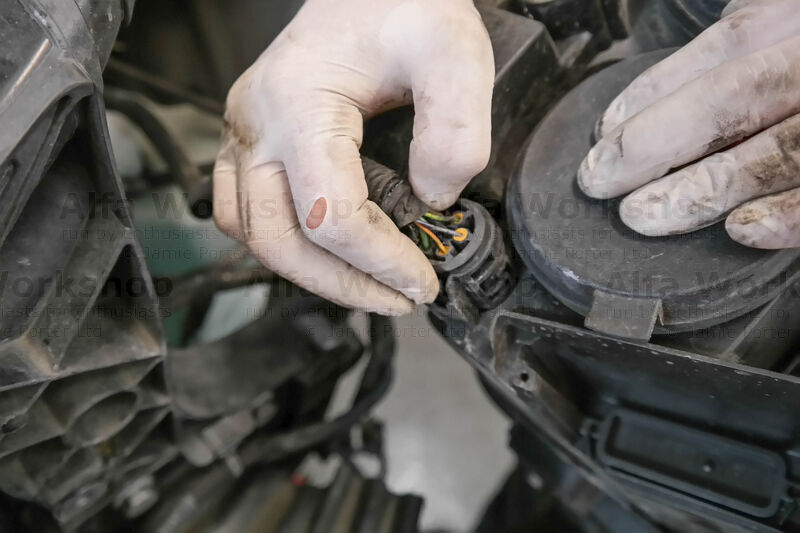

and disconnect the connector at the back of the unit. If you're taking out the radiator then remove both headlamps.
border='1'

If you now want to carry on and remove the radiator please go to 'Removing The Radiator From A MiTo 1.4 Multiair TB'.
