How to replace the rear wishbone on the Alfa 4C

See our 4C specific web site for more info on the 4C

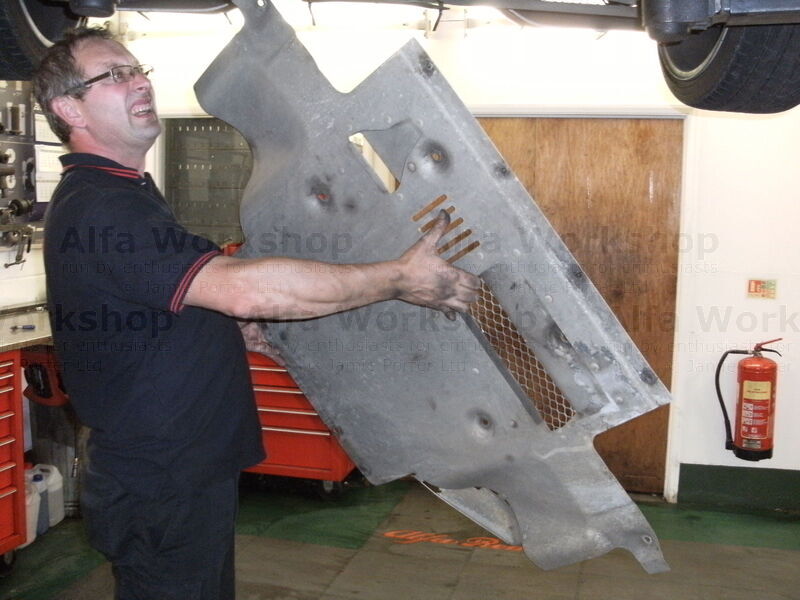

Remove the rear diffuser and undertray

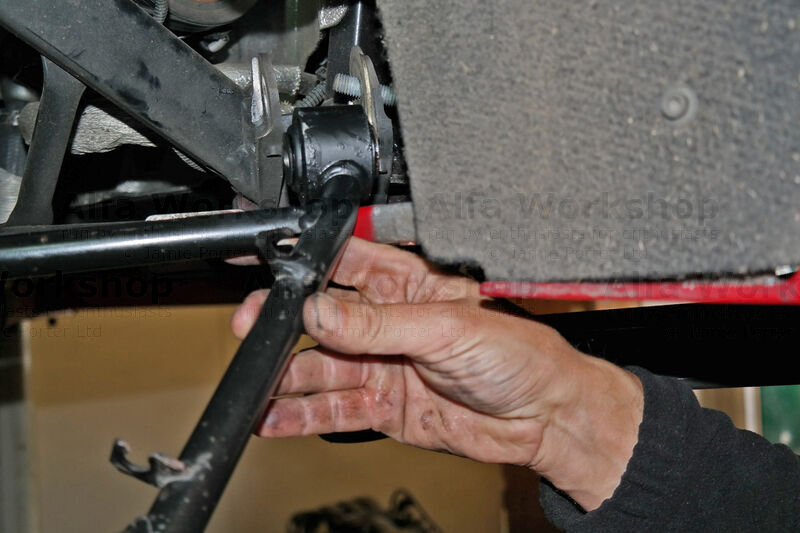

Remove the rear link rod to access the rear bolt for the wishbone

Undo the drop link from the anti roll bar to the wishbone (if fitted)

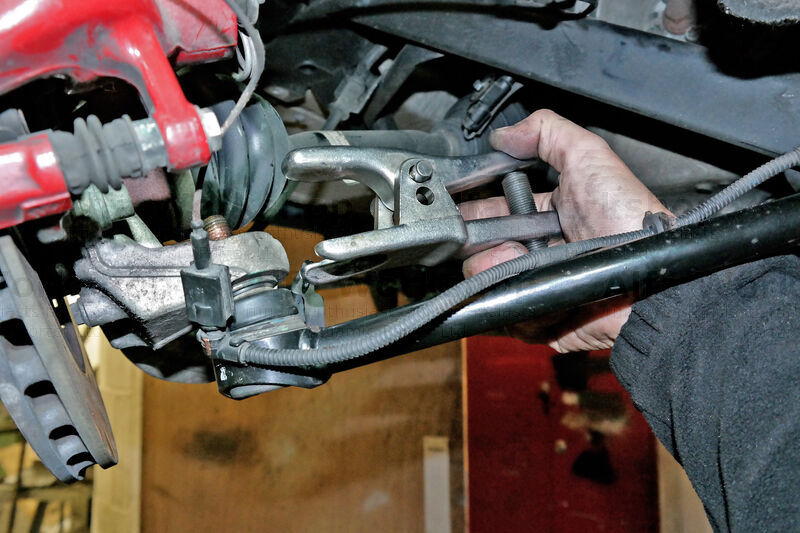

Using a ball joint splitter carefully separate the outer ball joint from the upright. If you intend to refit the existing part make sure you do not damage the boot that protects the joint.

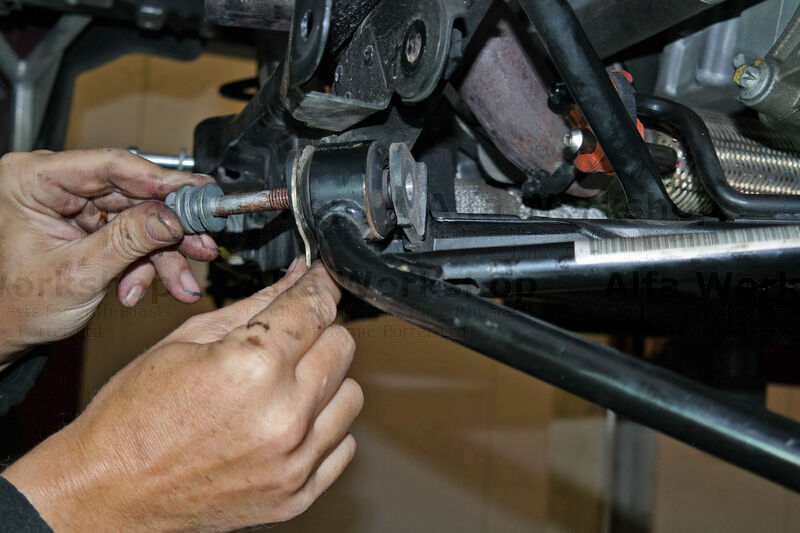

Next undo the rear bolt that secures the wishbone to the chassis.


Finally remove the bolt that secures the wishbone to the front of the subframe. to refit the wishbone simply reverse the procedure above.
