Replacing The Boot Wiring Looms On An Alfa Giulietta.

The wires in the tailgate loom tend to break from every day opening and closing of the boot. It's a fiddly job and if more than one wire is broken in the loom (as they are all the same colour and mostly similar in thickness) it's a case of trial and error.


LEFT hand loom 8061003 and RIGHT 8061002



You can BOOK your car in or just look for a QUOTE for replacing the LEFT hand wiring loom or the RIGHT.

:alt

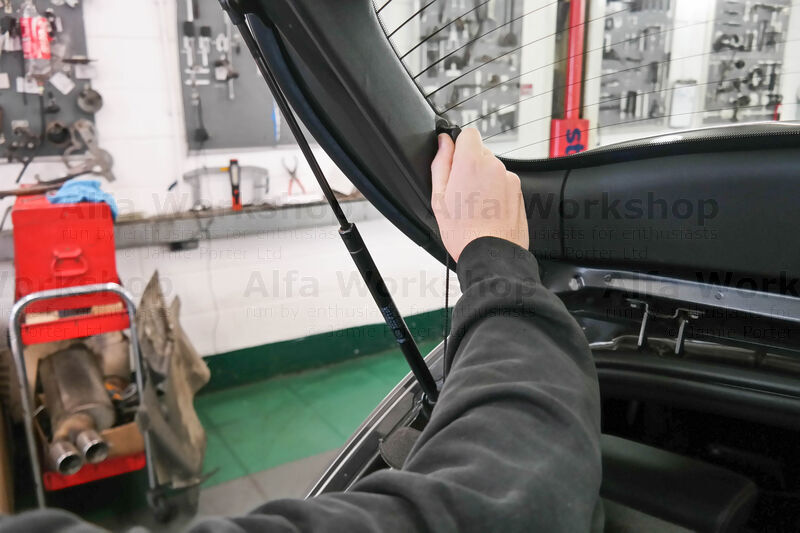

Lift up the boot and unclip the x2 parcel shelf straps.

:alt

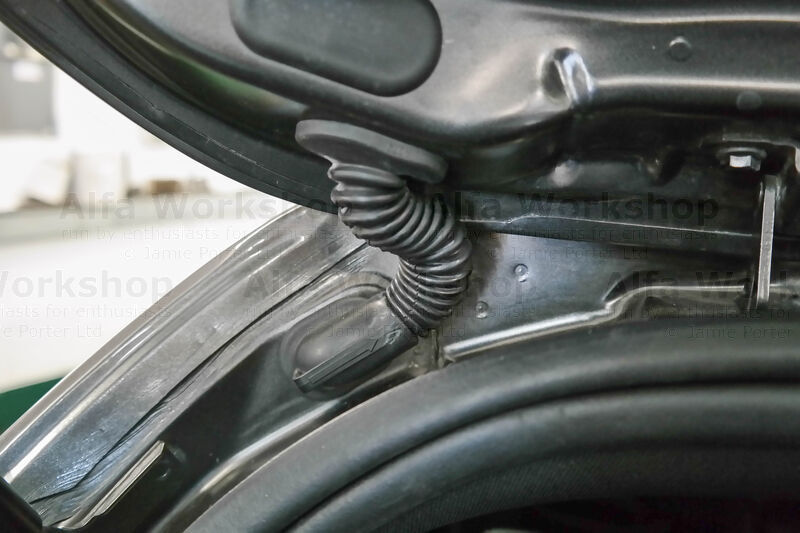

This is the boot covering the LEFT hand wiring loom.

:alt

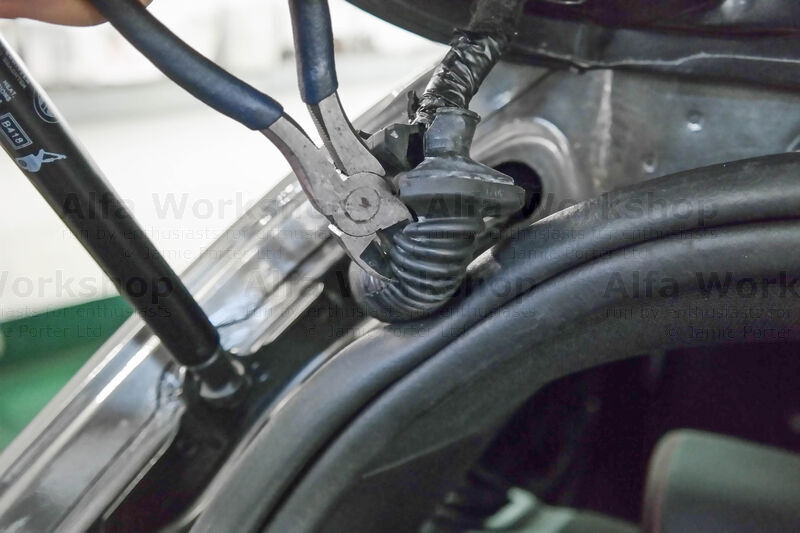

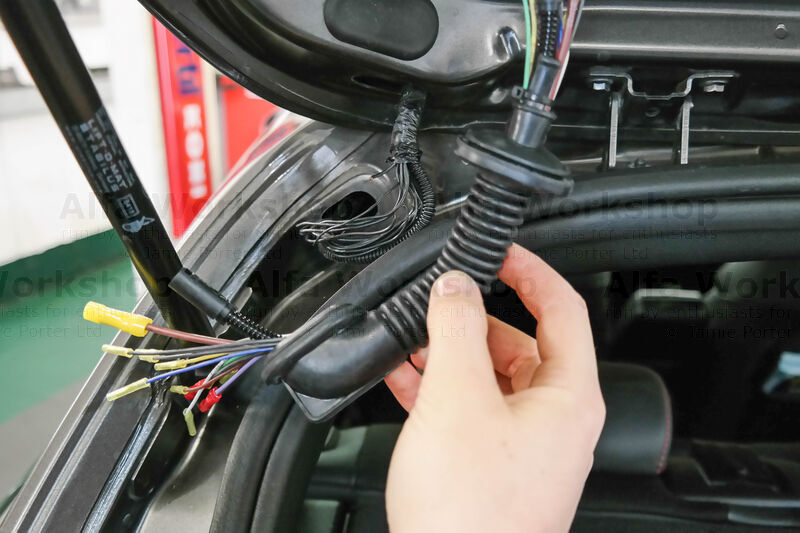

Pull the boot out and the excess wiring.

:alt

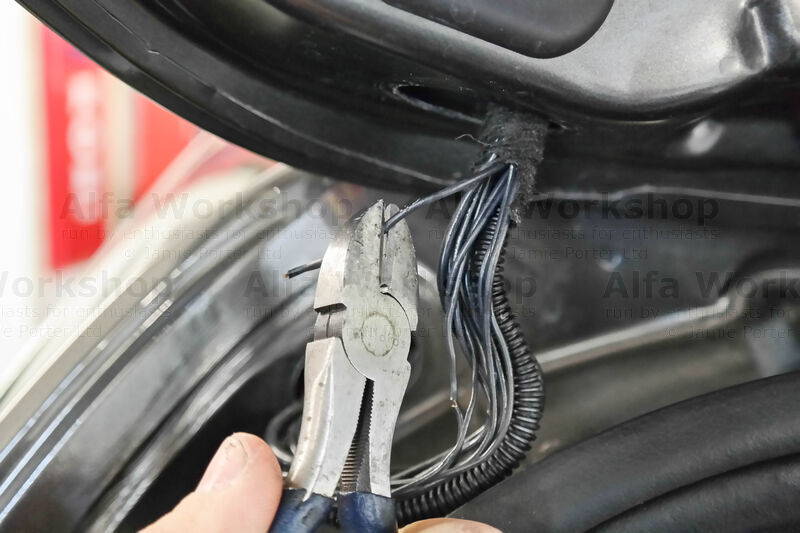

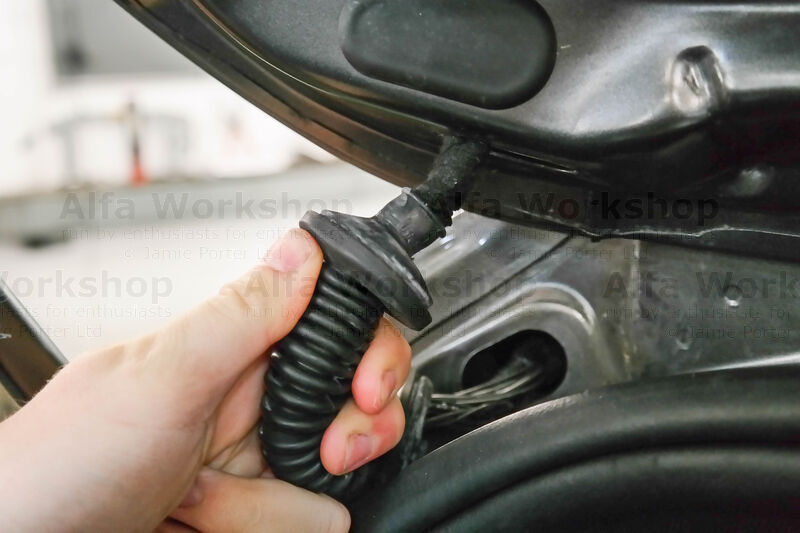

Now pull the boot down until the individual wiring is exposed then start pulling at the wires to see if any broken ones come free.

:alt

The LEFT side loom has the washer pipe and controls:
- Rear washer
- Left side light cluster (small wires)
- Centre brake light (small wires)
- Boot release (medium size wire)
- Boot lock (medium size wire)
- Heated rear screen (large wire)

:alt

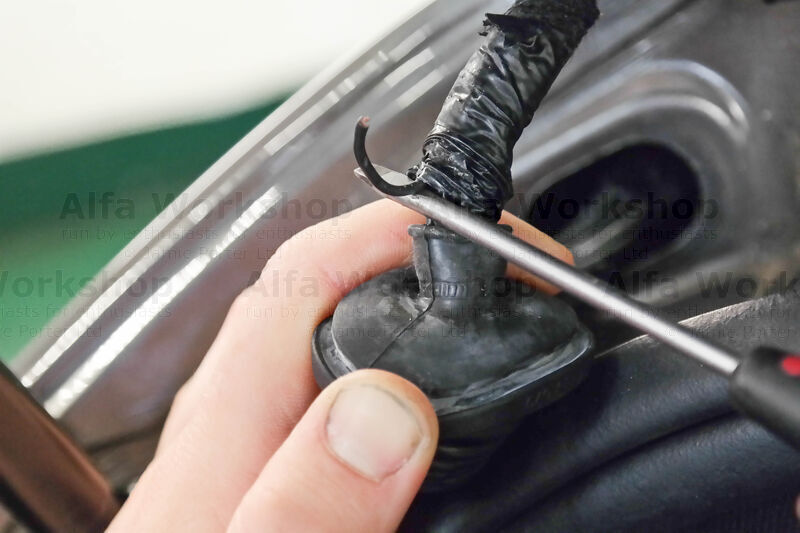

Carefully cut off the old rubber boot.

:alt

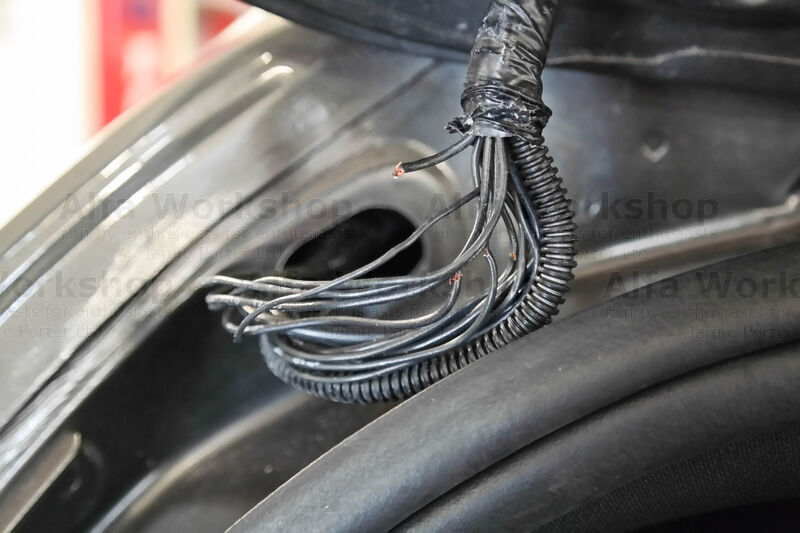

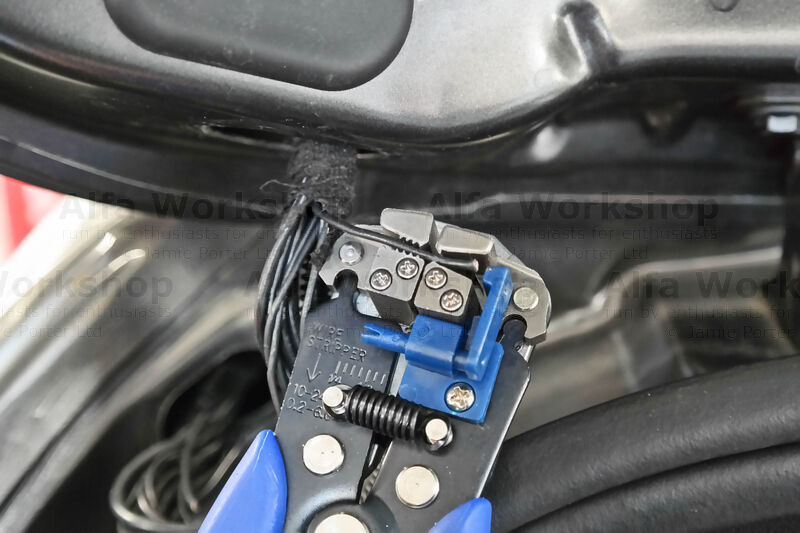

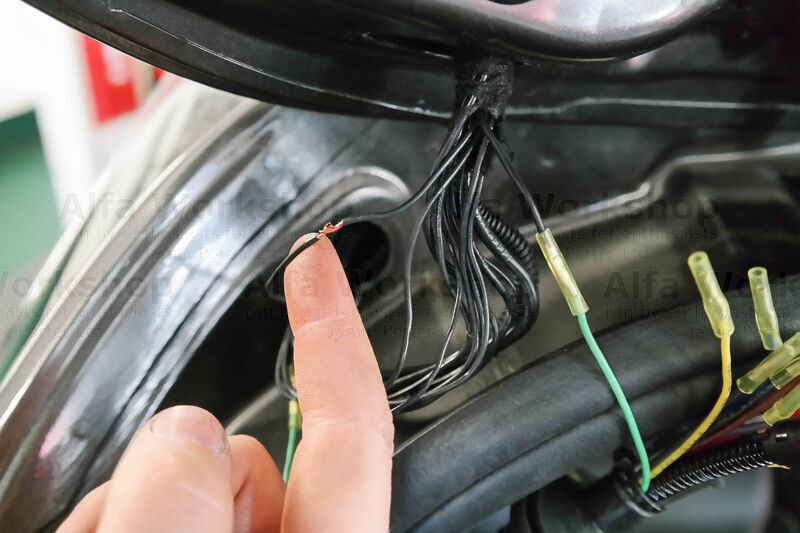

You can now inspect all the wires.

:alt

CONCENTRATE AT REPAIRING x1 WIRE AT A TIME. If only one wire is broken then trim off the broken ends.

:alt

Strip and twist both ends of the old wire.

:alt

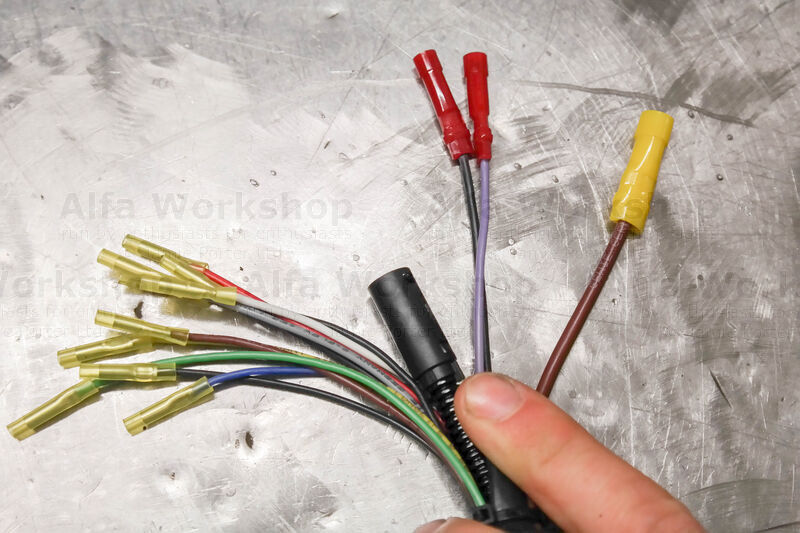

Making sure you have the NEW wiring loom the correct way up...

:alt

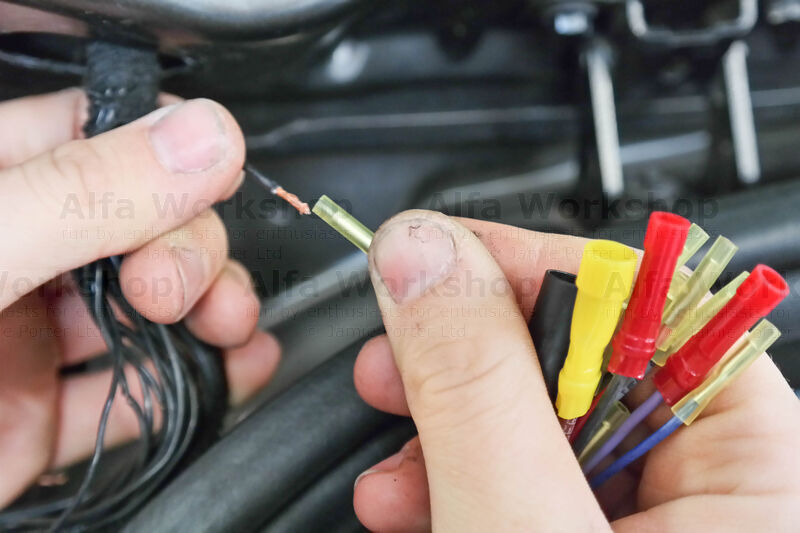

....and matching the thickness of the wires, take the old upper wire and insert it into the top of the crimp connector of one of the new wires.

:alt

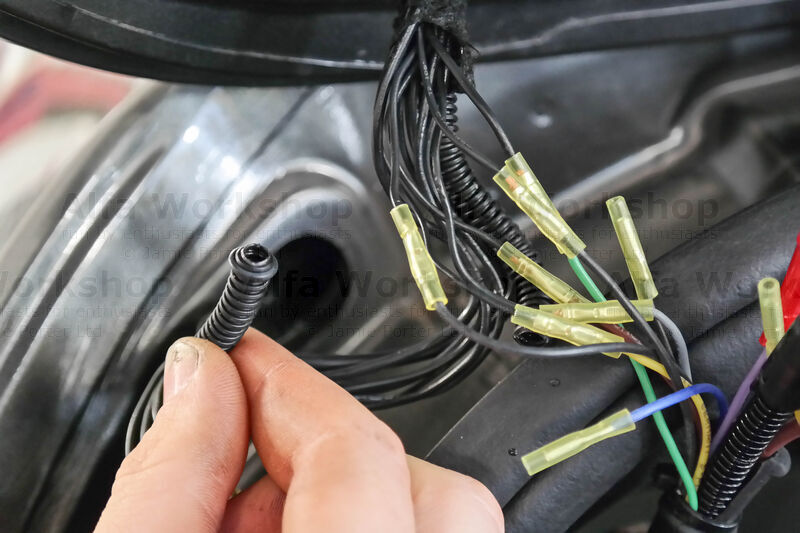

Crimp the connector then do the same for the bottom wire. Check the next wire and cut a section out, follow the same process until all the wires have been connected.

:alt

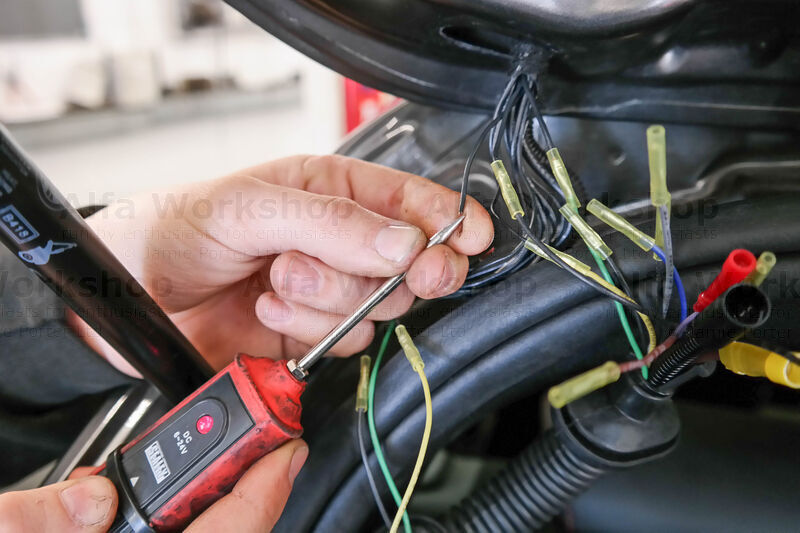

If more than x1 wire is broken, using a power probe power up the top broken wire...

:alt

....and see what comes on (in this case the centre brake light).

:alt

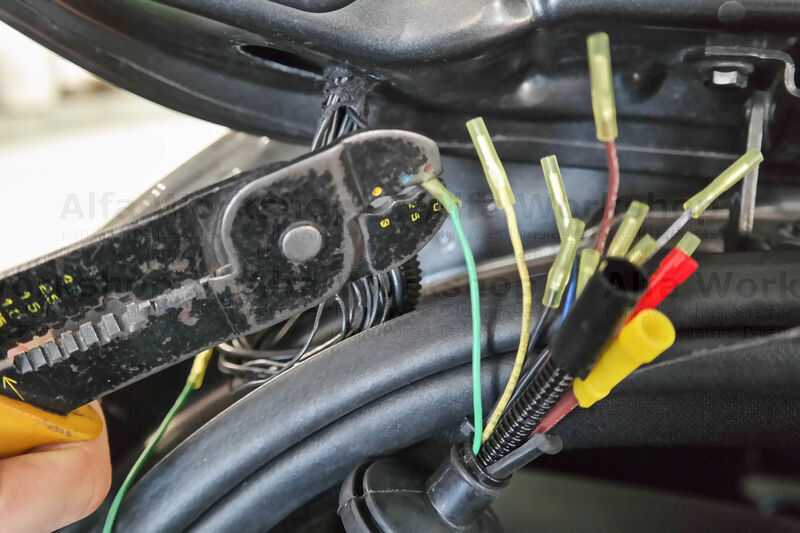

Strip the ends of the wires and twist together the top wire that you had just powered up with one of the broken lower wires. Now try to operate that function as you would do normally, so for our wire we pushed down on the brake pedal. If the light doesn't work then try connecting the upper wire with a different lower broken one until you achieve that function. Now crimp the wires to the new wiring loom.

:alt

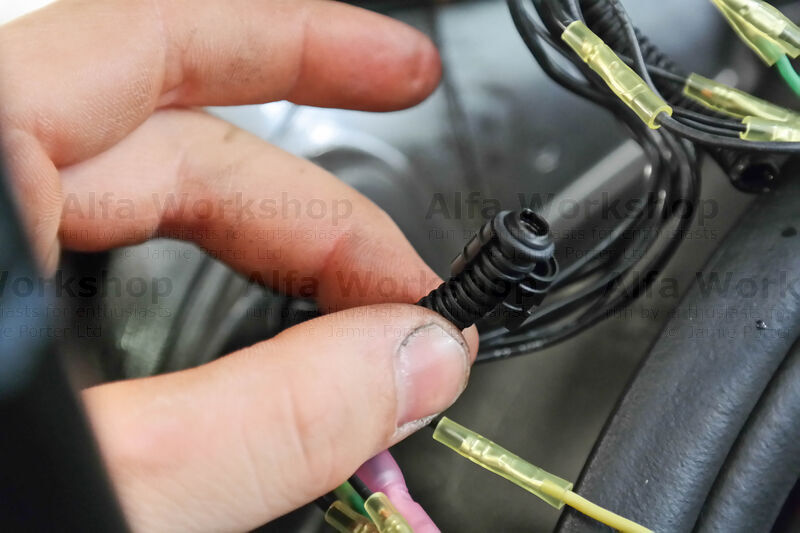

To connect the washer pipe cut the old one and place the o-ring supplied on the end.

:alt

Then hold the small clasp around the hose below the o-ring....

:alt

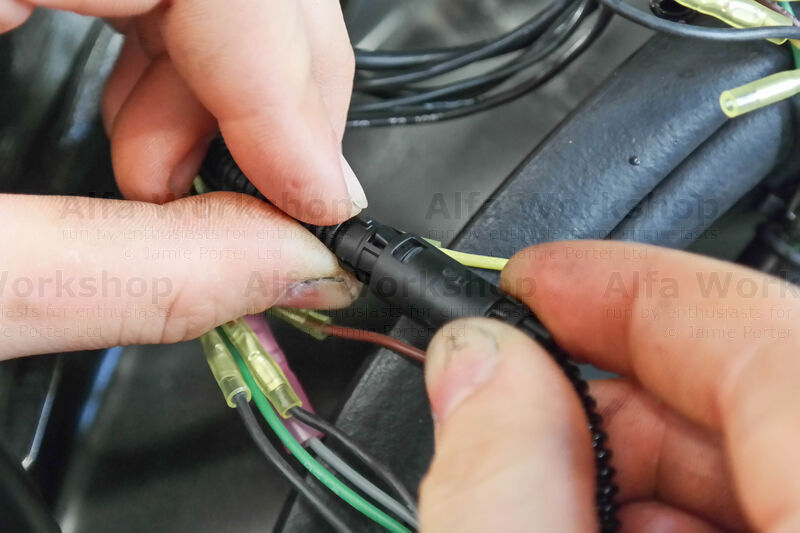

....as you push it into the new connector. Do the same for the other end.

:alt

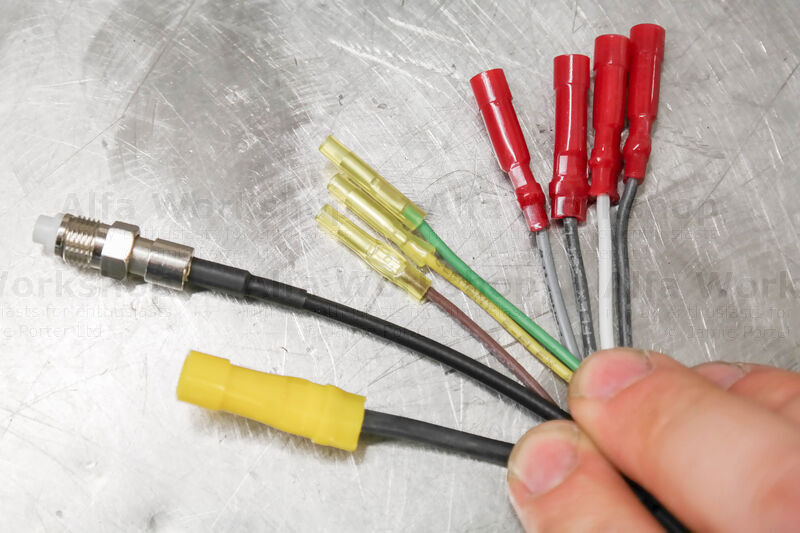

The RIGHT side wiring loom has the aerial and controls:
- Right hand light cluster (small wires)
- Wiper motor (medium wire)
- Heated rear screen (large wire)
- Antenna (for models that have it built into the rear screen, if it's not built in then leave it)
