Replacing The Differential Seal On A Giulia
Replacing the diff seal on a Giulia

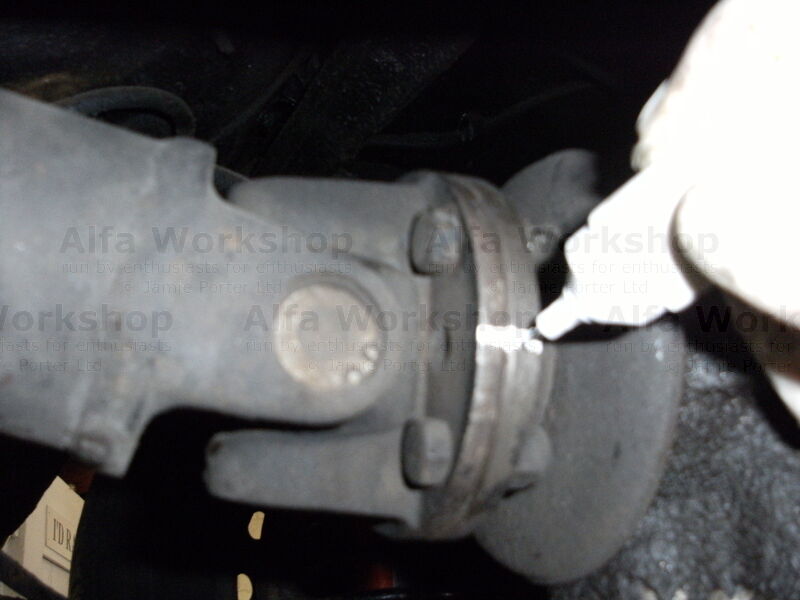

![border='1'](/images/343-0-120.jpg) | First of all mark the two flange |

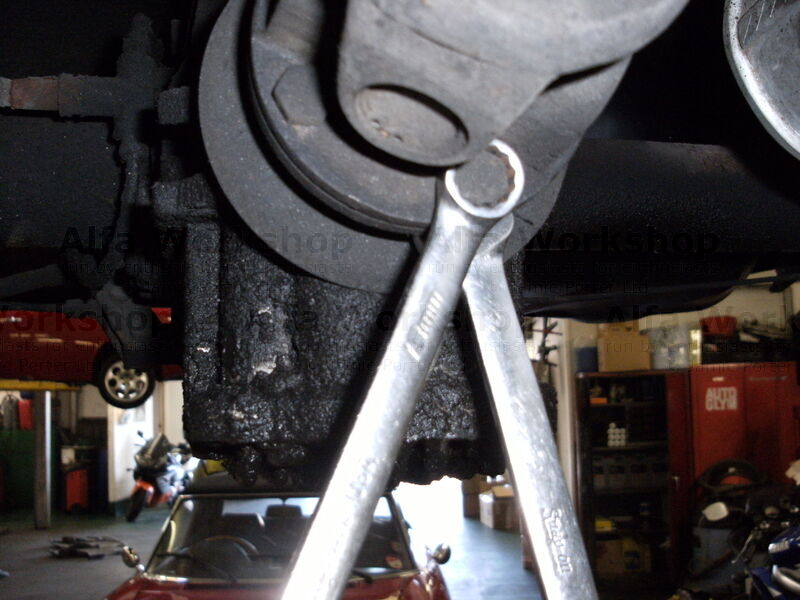

![border='1'](/images/343-1-120.jpg) | Undo prop shaft |

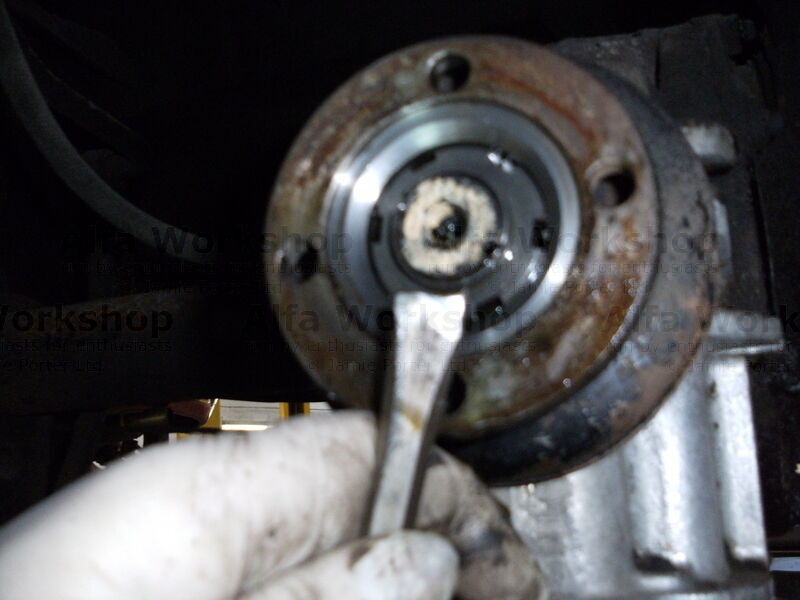

![border='1'](/images/343-2-120.jpg) | Using special tool undo tab washer |

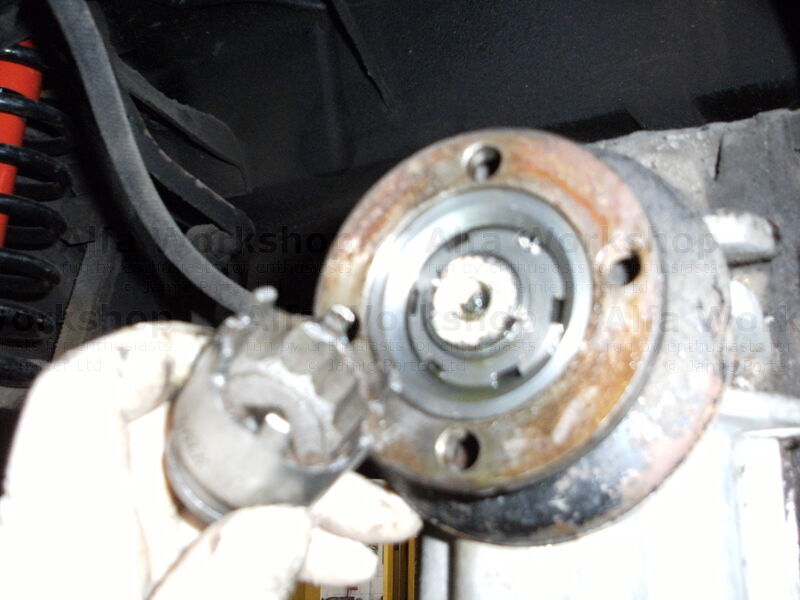

![border='1'](/images/343-3-120.jpg) | Then undo pinion bolt using castalated socket |

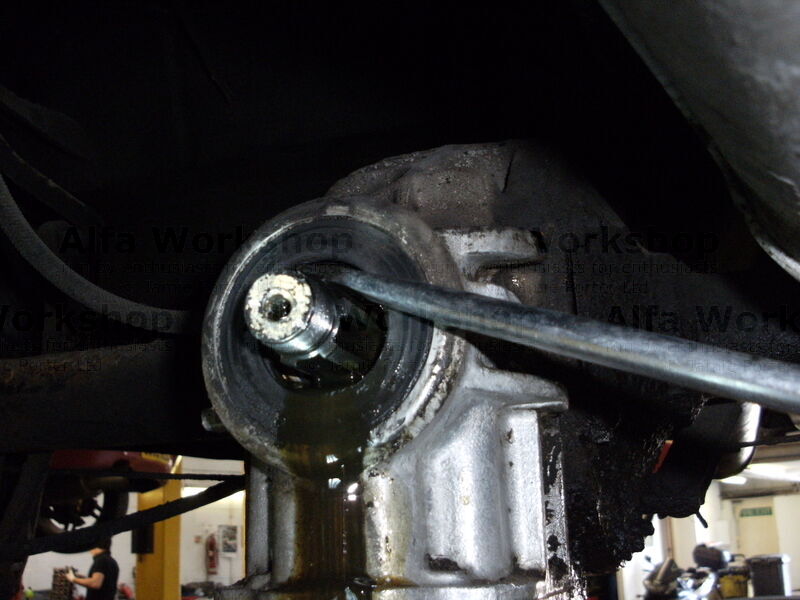

![border='1'](/images/343-4-120.jpg) | Remove seal |
![border='1'](/images/343-5-120.jpg) | Using a soft hammer carefully tap in new seal |

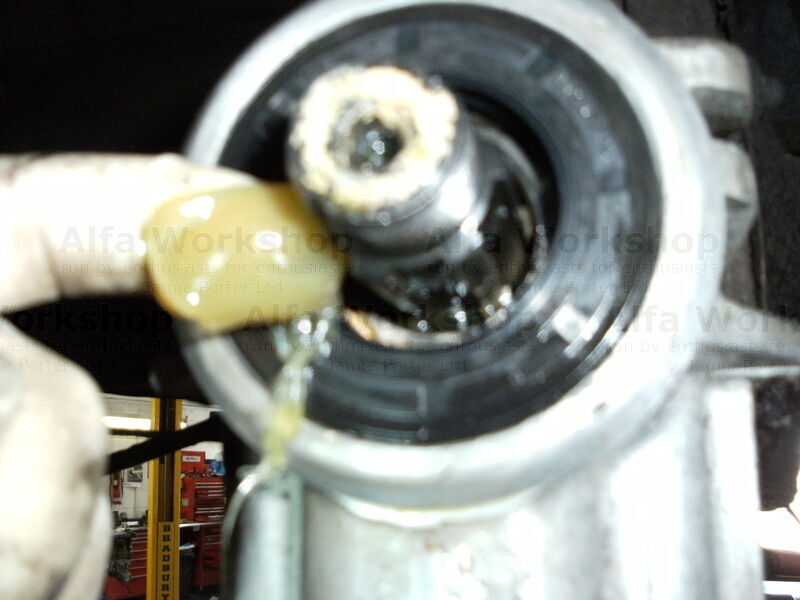

![border='1'](/images/343-6-120.jpg) | Put a small amount of graese on the new seal |

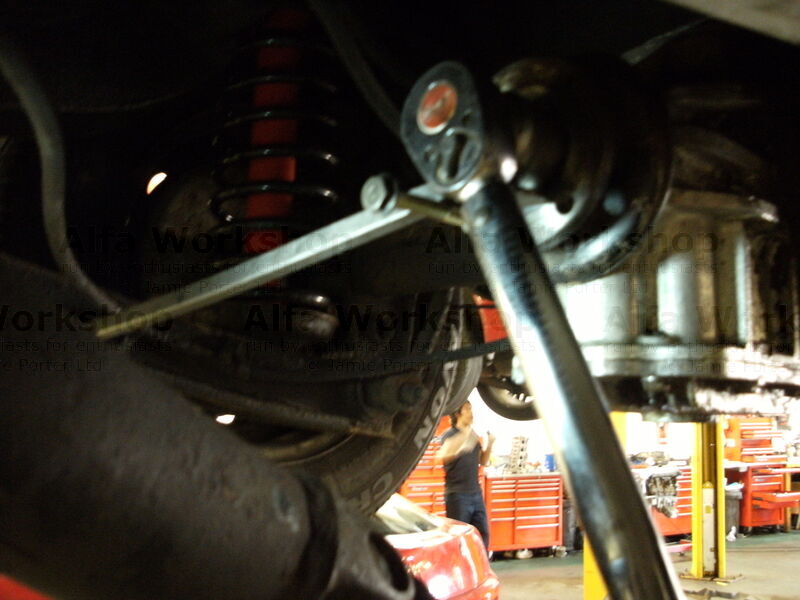

![border='1'](/images/343-7-120.jpg) | Torque up pinion front nut |

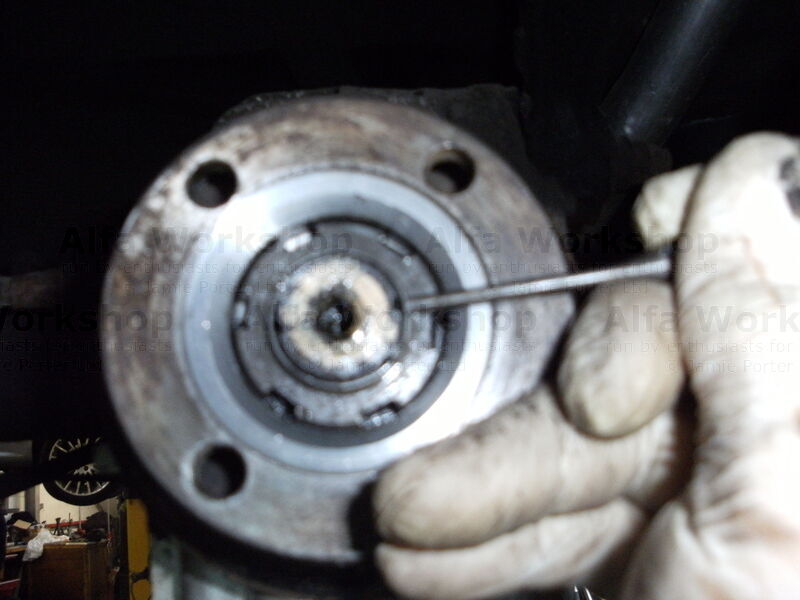

![border='1'](/images/343-8-120.jpg) | Using a small punch tap in tab washers |

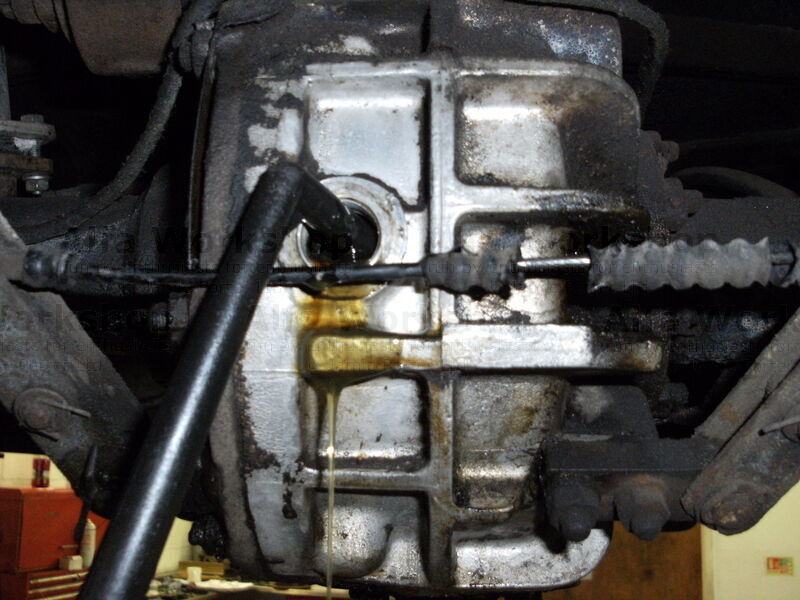

![border='1'](/images/343-9-120.jpg) | Top up with gear oil to correct level |
