The New Alfa Romeo Spider was launched at the Geneva Motor Show at the beginning of March 2006, however there was a private showing at the 2005 Pebble Beach Concourse D'Elegance.
The spider shares the same chassis as the Brera, known as the "premium platform" or type 939, this was developed in conjunction with GM and is also used on the 159 although with a longer wheel base. The Brera Spider when originally launched had the choice of the new 185 bhp 2.2 litre JTS engine or the 3.2 litre V6 24 valve 260 bhp engine but in 2007 the 2.4 litre 20 valve diesel was added to the range. Both the petrol engines are direct injection with both inlet and exhaust cam shafts having variable timing. The 2.2 litre engine has a 6 speed gearbox while the V6 has Alfa Romeo’s Q4 four wheel drive system which is tuned to give the car a distinct rear wheel drive feel.
Suspension is double wishbone at the front with a wide upper wishbone, while the rear has got a multi link arrangement. Accommodation is much improved on the last model spider, with considerably more luggage space and the Spider comes with a pair of neat titanium coloured aerodynamic roll over hoops.

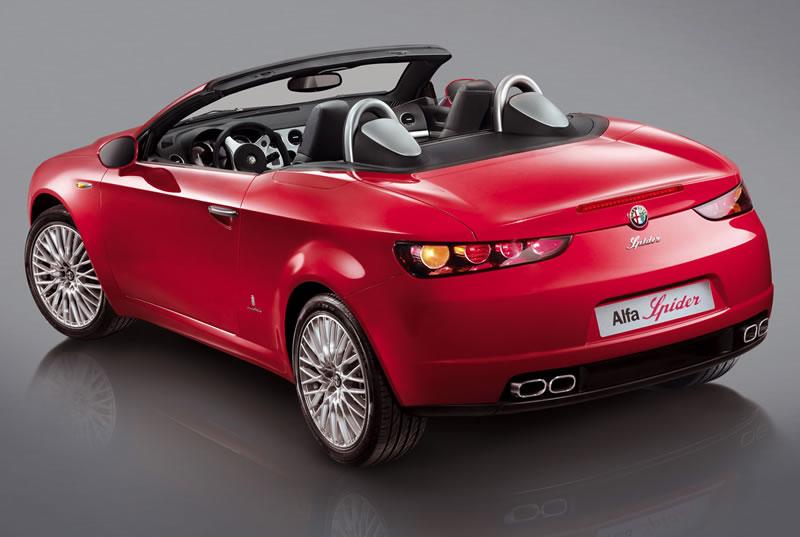

Styling follows along the same lines as the Brera with aggressive front lights and a deep front grill, while the rear has distinct echo’s of the 1960's Alfa Romeo GTC and the four exhausts give the car a distinctively sporting air.
JP
2.2 JTS | 32.JTS V6 Q4 | 2.4JTD Mjet | |
No of Cylinders | 4 inline | 60 degree V6 | 5 inline |
Bore/Stroke (mm) | 86/94.6 | 89/85.6 | 82/90.4 |
Compression Ratio | 11.3/1 | 11.25/1 | 17/1 |
Max Power (bhp) | 185 | 260 | 200 |
Peak Torque (Nm) | 230 | 322 | 400 |
0-62mph (secs) | 8.6 | 6.8 | 8.1 |
Top Speed (mph) | 138 | 149 | 142 |
Combined Cycle | 30.1 | 24.6 | 41.5 |
Exhaust Emissions | 221 | 273 | 179 |
Drive | Front Wheels | Four Wheels | Front Wheels |
Gears | 6 | 6 | 6 |
Turning Circle | 10.7 | 10.7 | 10.7 |
Suspension Front | Double Wishbone | Double Wishbone | Double Wishbone |
Suspension Rear | Multi link | Multi Link | Multi Link |
Brakes Front | 305mm Vented | 330mm Vented | 330mm Vented |
Brakes Rear | 278mm Solid | 292mm Vented | 292mm Vented |
