How To Remove The Front Interior Door Card On An Alfa 147 or GT
If you are planning on changing a broken exterior door handle or window regulator you will need to remove the door card first.

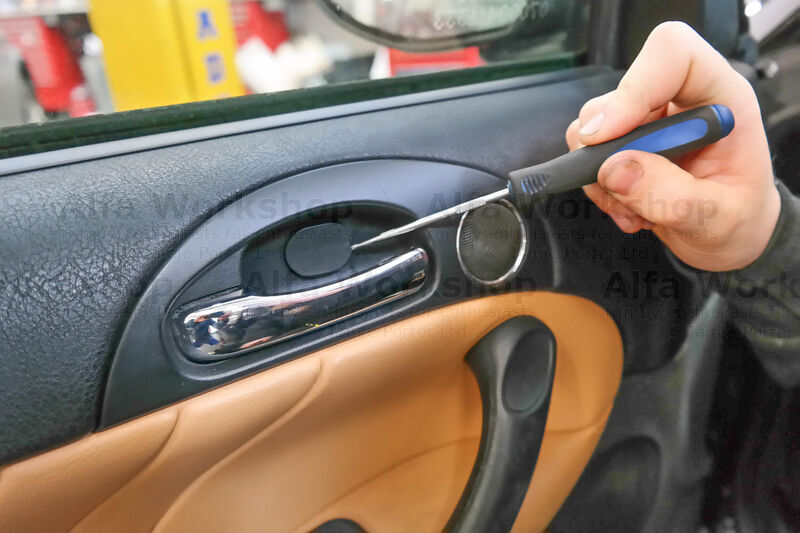

 | Prise off the cover by the interior door release handle. |
|

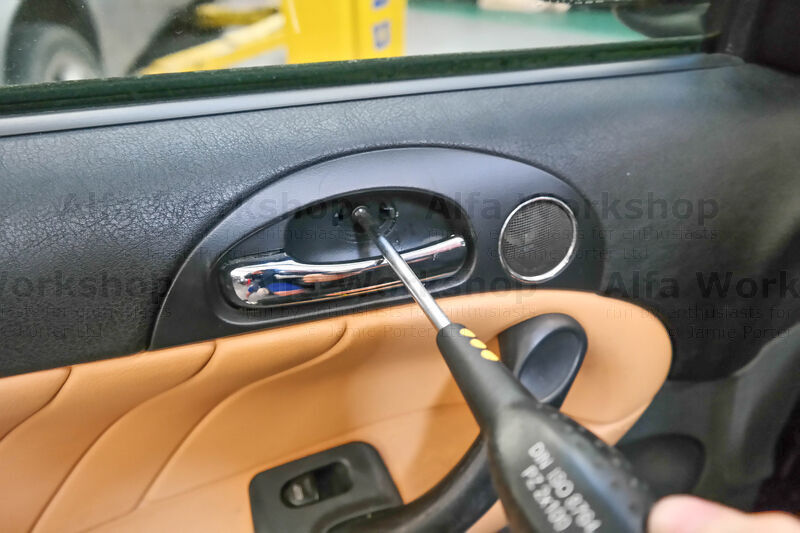

 | Undo the retaining bolt with a 5mm Allen key. |
|

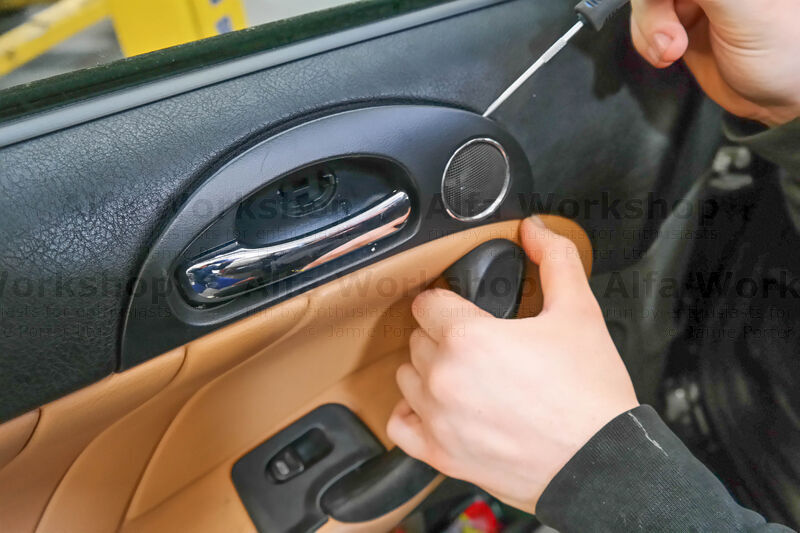

 | Prise the panel off, |
|

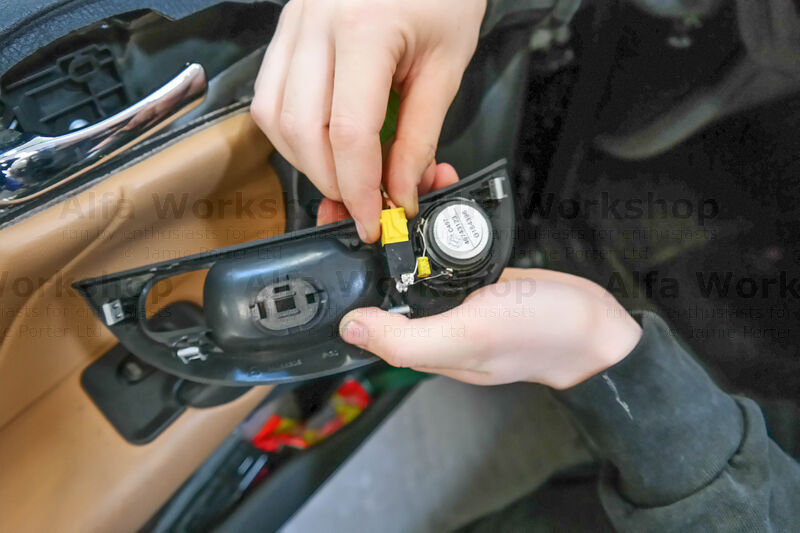

 | and unclip the connector. |
|

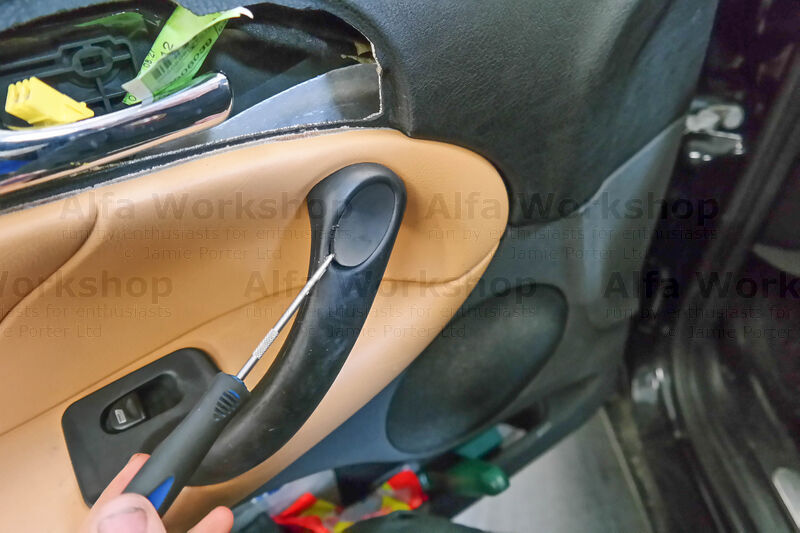

 | Prise off the door handle cover to the interior pull to handle. |
|

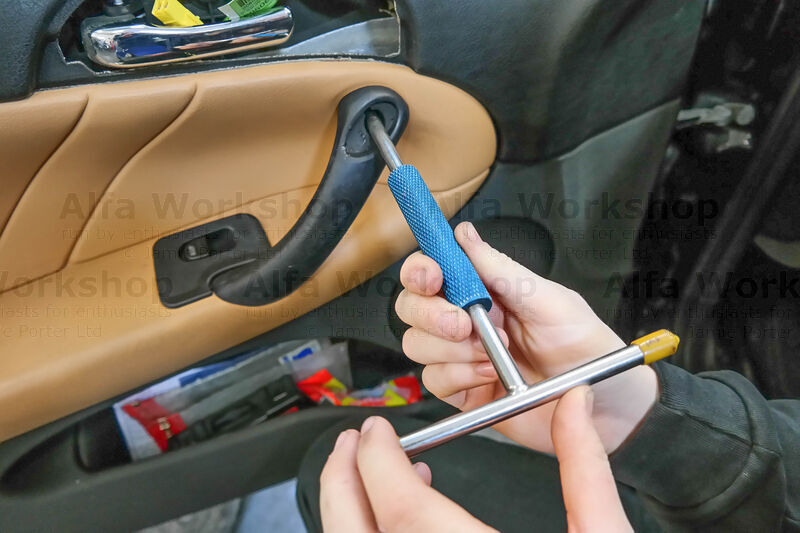

 | Undo the 5mm bolt. |
|

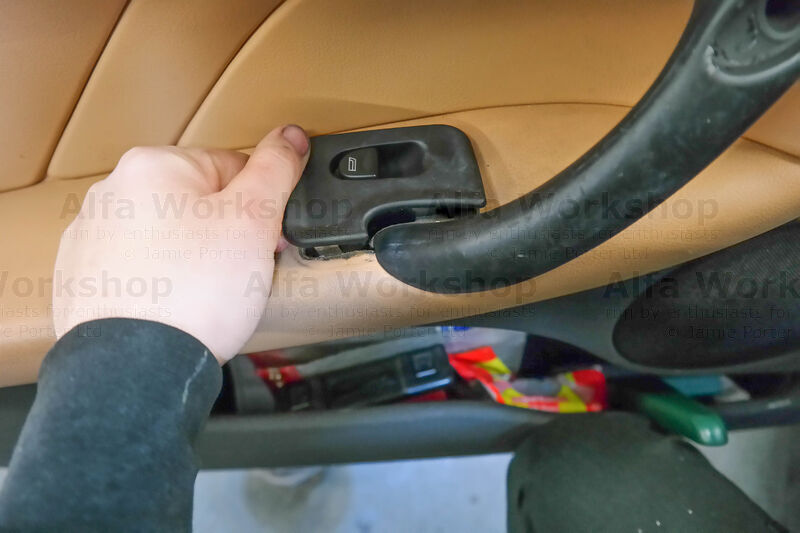

 | Before you can prise out the window switch there's a small screw at the base you need to undo. |
|

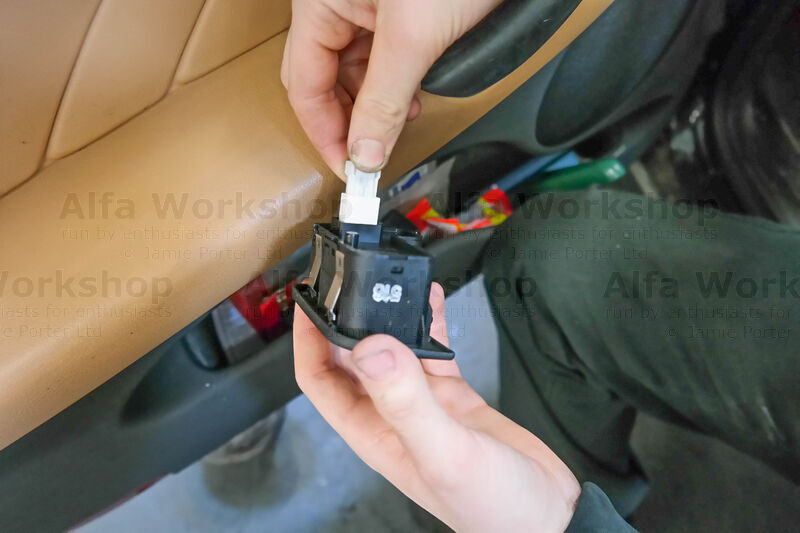

 | Unplug the connector. |
|

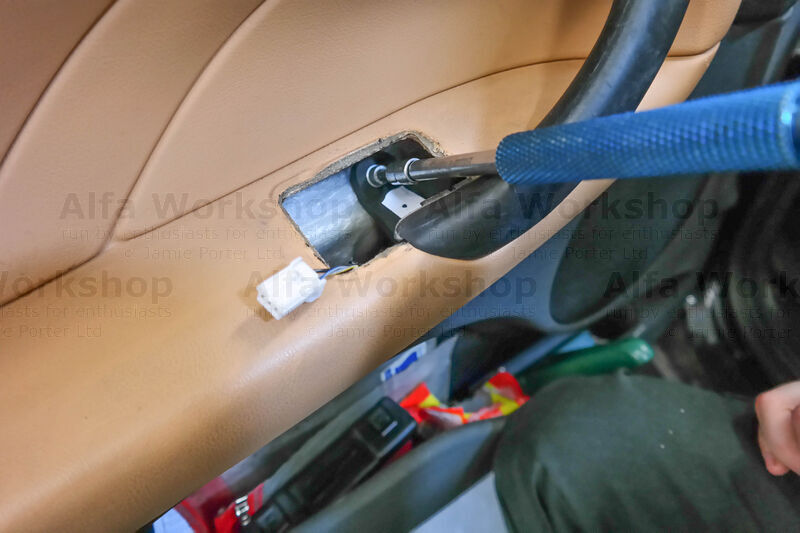

 | Undo the second 5mm bolt on the pull to handle. |
|

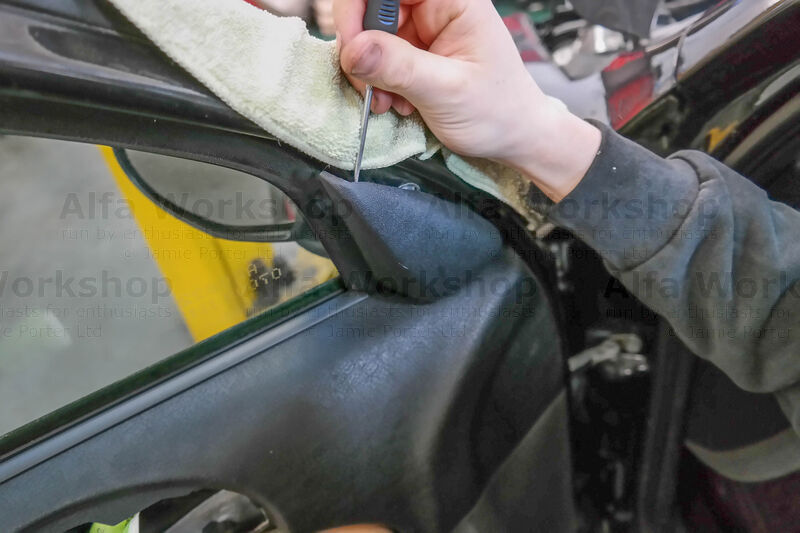

 | Prise off the wing mirror corner trim. |
|

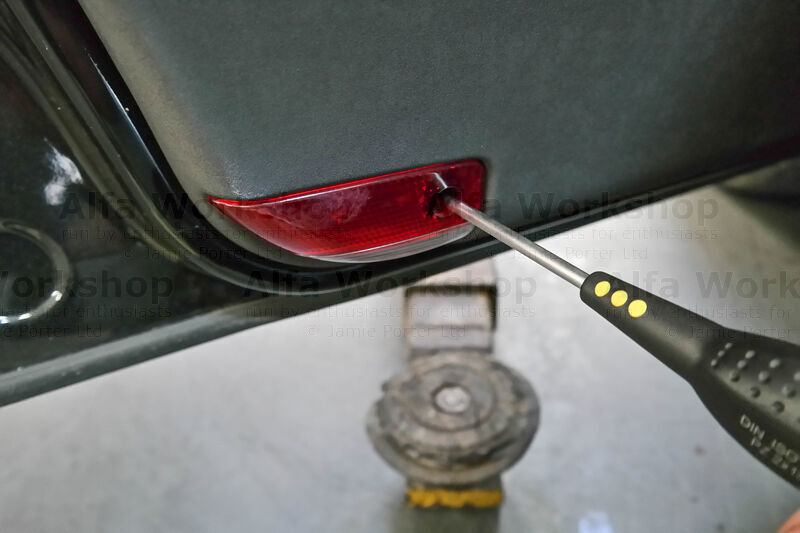

 | Undo the screw for the puddle light and three more screws along the bottom of the door card. |
|

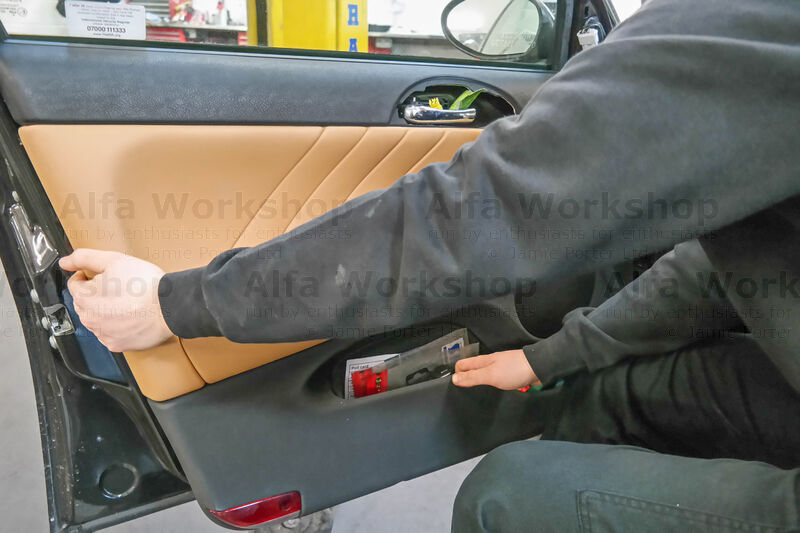

 | You can now remove the door card which is only held on by three push fittings either side, |
|

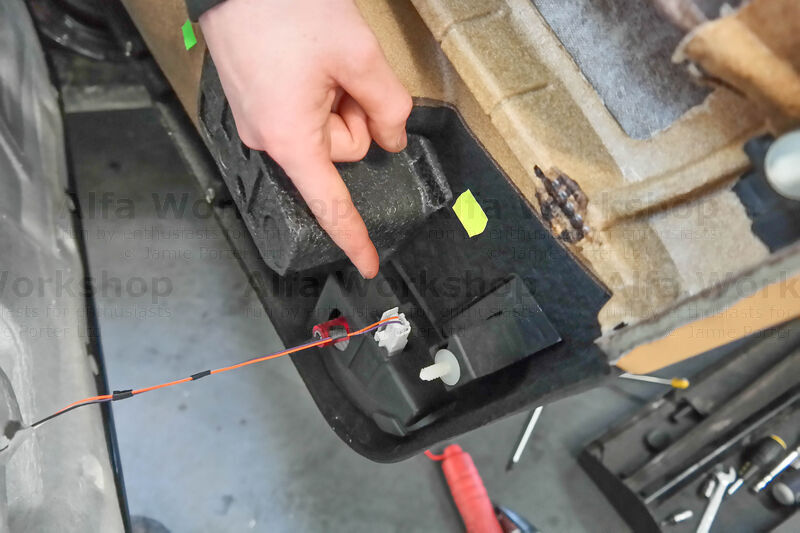

 | but don't forget to unplug the puddle light. |
|

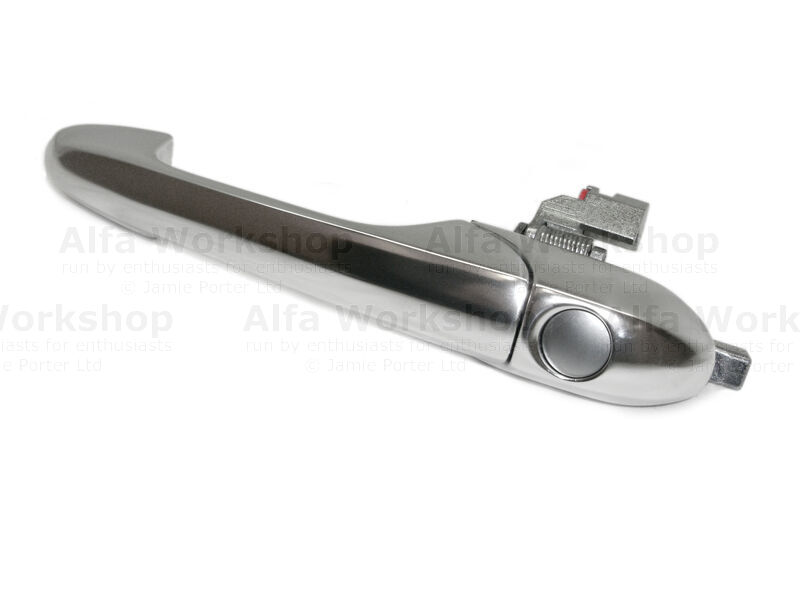

 | If you now plan to take out the door handle please go to How To Remove A Broken Door Handle |
|
