Removing The Bumper And Headlights From A Brera






If you're not just planning on removing the bumper for a respray or because of the last road kill but need to replace a headlight or radiator instead then you need to follow this first. This "How To" is based on the 3.2 JTS.


border='1'

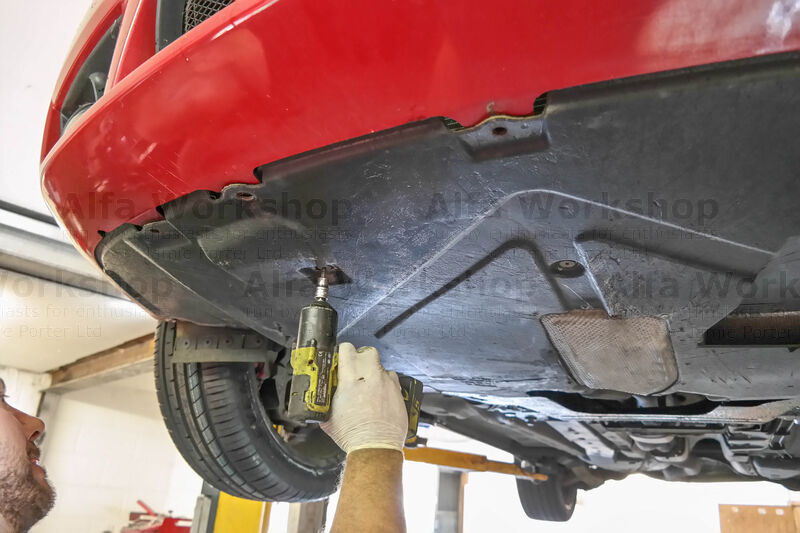

Remove all of the undertray fixings.

border='1'

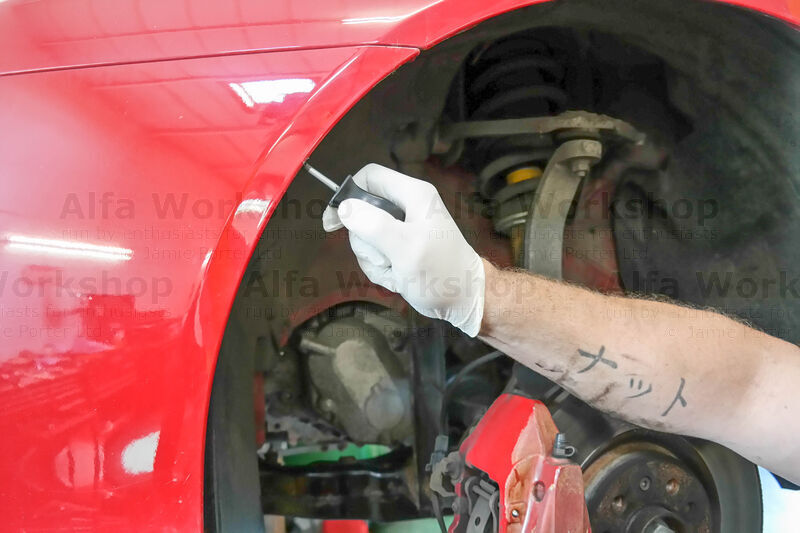

Undo the two Phillips screws on the wheel arch liner,

border='1'

and the 8mm top bolt on both sides.

border='1'

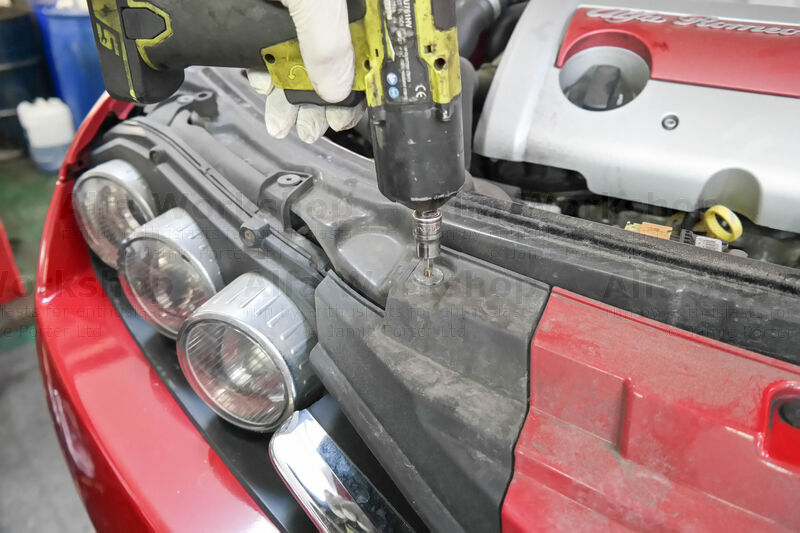

Along the top of the bonnet slam panel undo the four T27 (Torx) screws.

border='1'

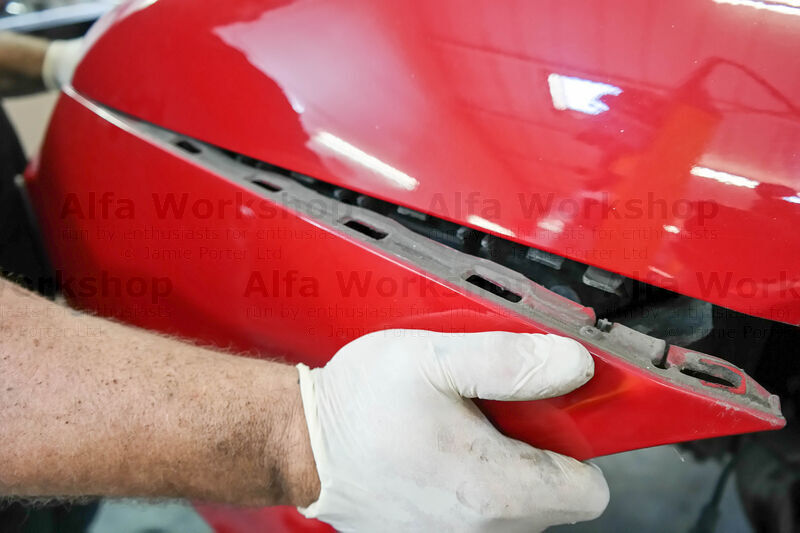

Pull the sides of the bumper away from its clips.

border='1'

The bumper is now free apart from unplugging the two fog light connectors.

border='1'

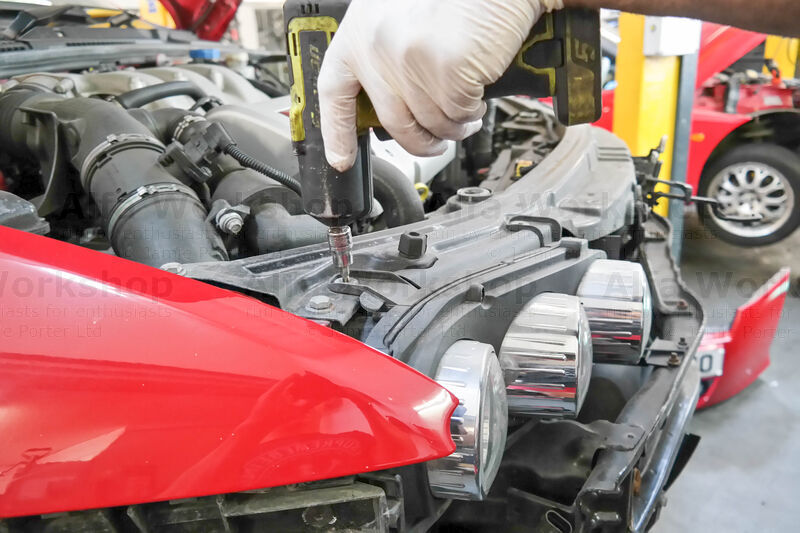

To remove the headlights undo the two T27 screws on top,

border='1'

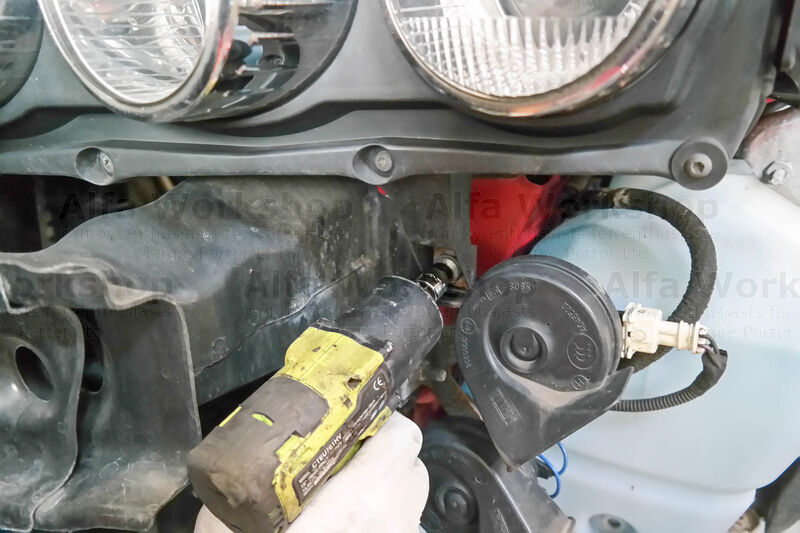

and the one at the bottom,

border='1'

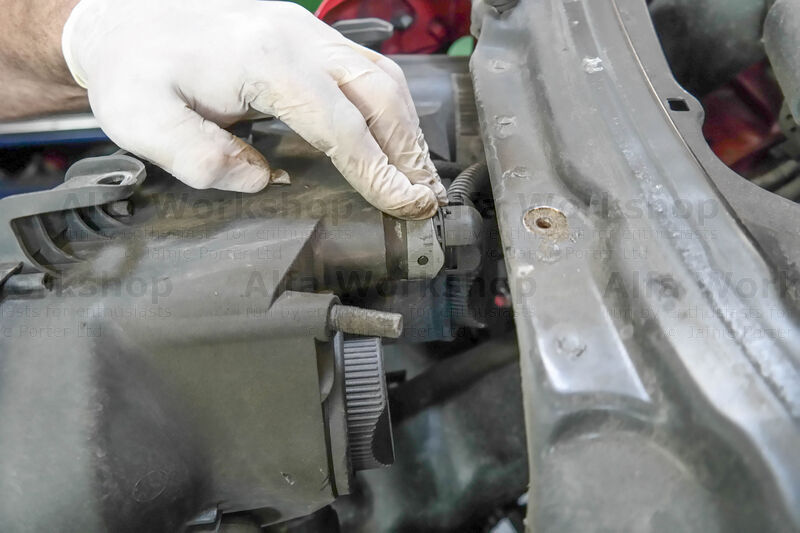

then unclip the headlight connector.

border='1'

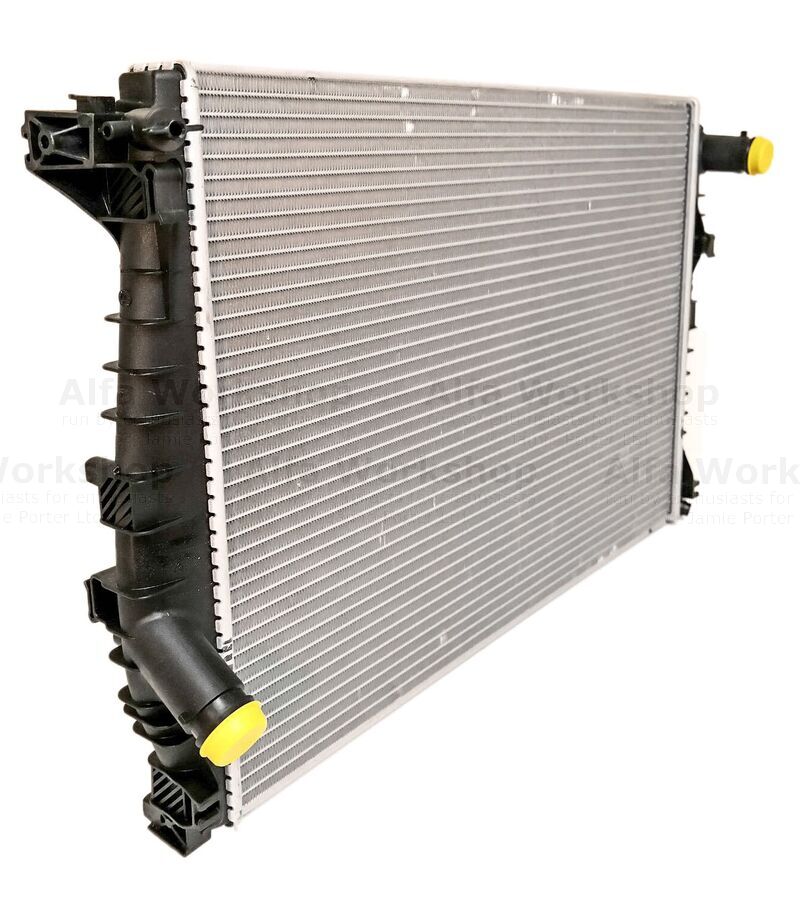

If you now want to remove the radiator go to Brera radiator removal.
